| Prod Model: |
Flexible Ceramic Pad Heater |
| Product: |
Ceramic Heater Pad |
| Size: |
Customized |
| Max Temperature: |
1050 Degree Celsius |
| Resistance Voltage: |
2000V/Min |
| Insulation: |
5 Mohm |
| Radiating Temperature Inhomogeneity: |
More Than 5% |
| Compression Strength: |
2000 MPa |
| Use Life: |
3000hours |
| Thermal Conductivity: |
24 W/Mk |
| Application: |
Heater |
Product Description

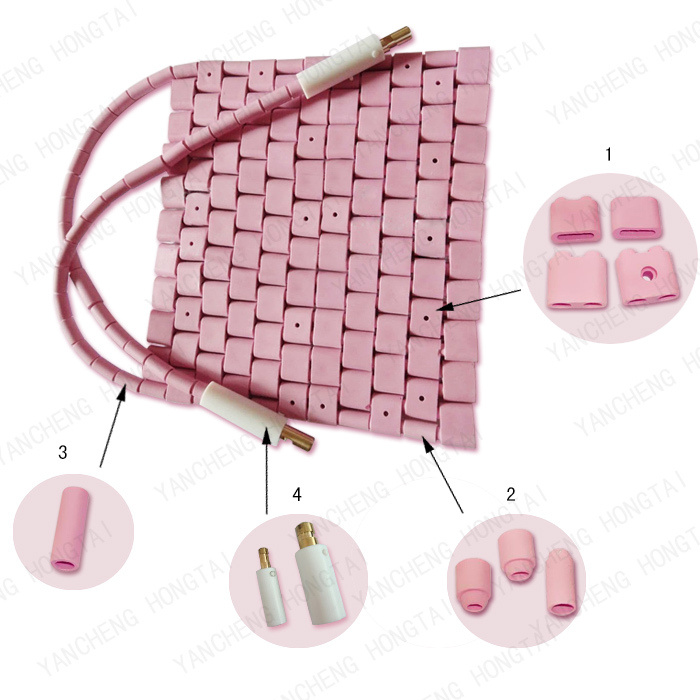

FCP Flexible Ceramic Pad Heater1. IntroductionHongtai's high quality ceramic heating elements is manufactured from high grade nickel-chrome (Ni-Cr) 80/20 resistance wire and high purity (95%) aluminum oxide ceramics beads. These nickel-chrome wires have much more durable lifetime than normal alloy heating wires. These Alumina beads have high temperature resistance, excellent insulating property, and efficient thermal conductivity, which provides FCP heaters with exceptional electrical insulating,and thermal shock resistance and thermal conductivity qualities..
The insulators together with the resistance wires are very flexible and gives a good heat radiation and effective heat transmission during the required thermal process. Hongtai FCP heating elements are manufactured with a wide range of voltages, ranging from 30 volts to 255 volts. The standard heaters are suitable for heat treatment temperatures up to 1000°C.
They are designed for repeated heating applications. Their modular design permits a variety of element shapes, sizes, and thermal capacities to choose from. They can be used bare (as supplied) or with the application of rigid or flexible insulation to retain heat and speed up the heat treating jobs.2. Characteristics & Properties for Flexible Ceramic Pad Heater| Voltage (V) | 60/80 |
| Current (A) | 45 |
| Power (kw) | 2.7/3.6 |
| Maximum Use Temperature*, °C (°F) | 1121 (2050) |
| Heating Element Type | Ni-Cr |
| Lead Length (in.) | ~24 |
| Insulator Type | Aluminum Oxide |
| Insulator Color | Pink |
3. Main Features of Flexible Ceramic Pad Heater1) It can be contacted with the workpiece heated, bending, folding, combustion.
2) it can be used for all kinds of metal components, pipeline, large container preheating before welding, intermediate consumption of hydrogen and welding property Bureau Ministry of heat treatment.
3) Fast heating speed, high heat utilization rate, obvious energy saving, low labor intensity, reliable safe use, convenient operation of the excellent performance.
4) One of the most innovative and practical local heat treatment heater in the welding field. Maximum working temperature 1050.
4. Suggested Application of Flexible Ceramic Pad HeaterHeating source in furnaces and industrial process equipment operating to 1121ºC (2050ºF).
Post heat treatment of weld joints.
Preheating of materials to be welded.
5. Availability for Reference60V Series
Type Voltage
|
Width (mm)
|
Length (mm)
|
Rating (kW)
|
Current (amp)
|
| CP3-60V | 75 | 724 | 2.7 | 45 |
| CP4-60V | 102 | 533 | 2.7 | 45 |
| CP6-60V | 152 | 368 | 2.7 | 45 |
| CP8-60V | 203 | 267 | 2.7 | 45 |
| CP10-60V | 254 | 229 | 2.7 | 45 |
| CP12-60V | 305 | 184 | 2.7 | 45 |
| CP15-60V | 380 | 146 | 2.7 | 45 |
| CP18-60V | 457 | 127 | 2.7 | 45 |
| CP21-60V | 535 | 102 | 2.7 | 45 |
| CP24-60V | 610 | 83 | 2.7 | 45 |
CP26-60V | 740 | 83 | 2.7 | 45 |
80V SeriesType Voltage | Width (mm) | Length (mm) | Rating (kW) | Current (amp) |
CP3-80V | 991 | 991 | 3.6 | 45 |
CP4-80V | 102 | 737 | 3.6 | 45 |
CP6-80V | 152 | 501 | 3.6 | 45 |
CP8-80V | 203 | 368 | 3.6 | 45 |
CP10-80V | 254 | 368 | 3.6 | 45 |
CP12-80V | 305 | 248 | 3.6 | 45 |
CP15-80V | 380 | 203 | 3.6 | 45 |
CP18-80V | 457 | 165 | 3.6 | 45 |
CP21-80V | 535 | 145 | 3.6 | 45 |
CP24-80V | 610 | 125 | 3.6 | 45 |
CP33-80V | 740 | 100 | 3.6 | 45 |
CP33-80V | 840 | 85 | 3.6 | 45 |
CP36-80V | 915 | 80 | 3.6 | 45 |
We are able to meet our customers' needs regarding special models of size, shape, voltages and power rating. If you feel interested in our FCP heaters, please kindly contact us.

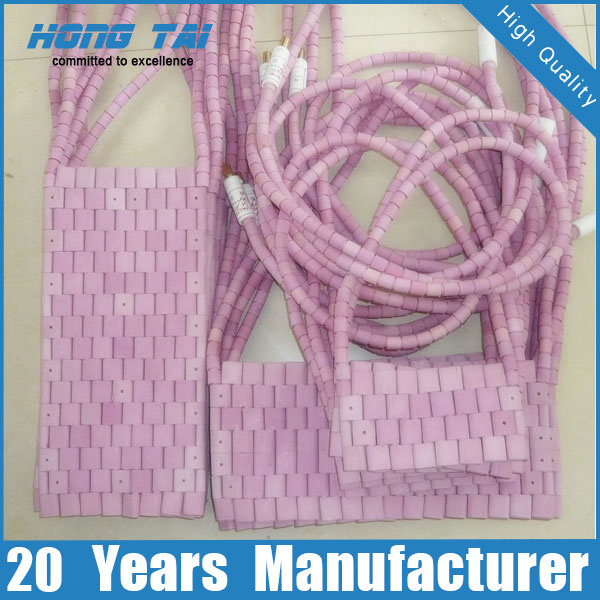

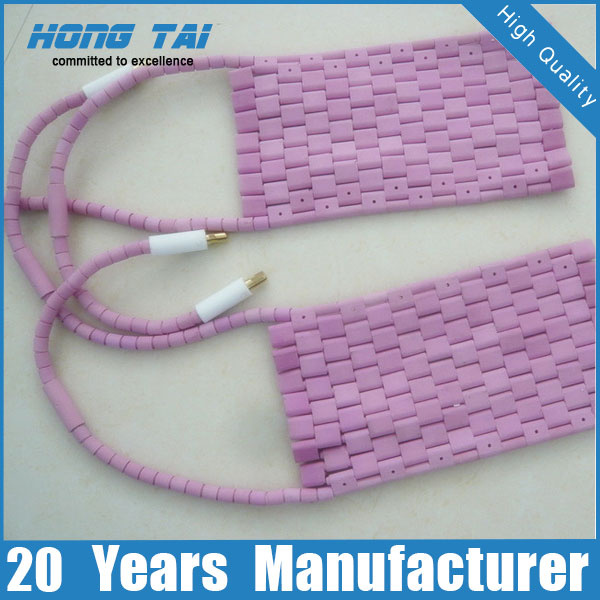

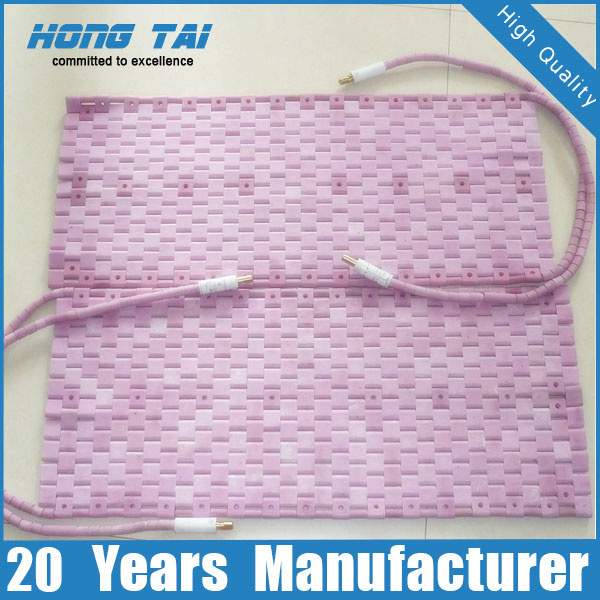

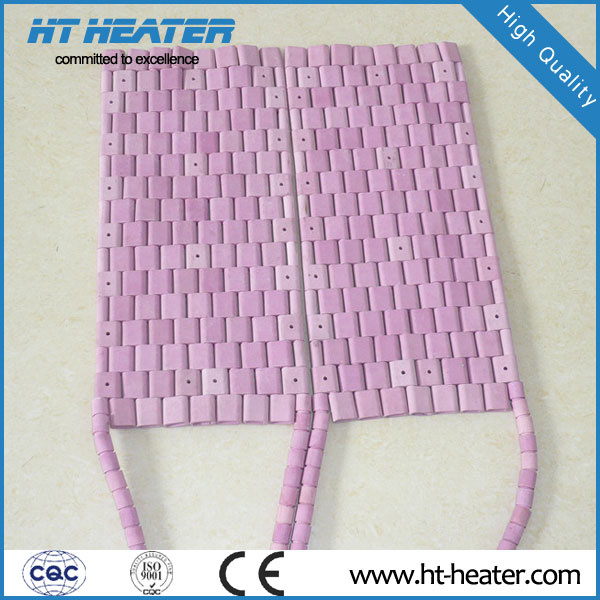

6. Show of Flexible Ceramic Pad Heater
