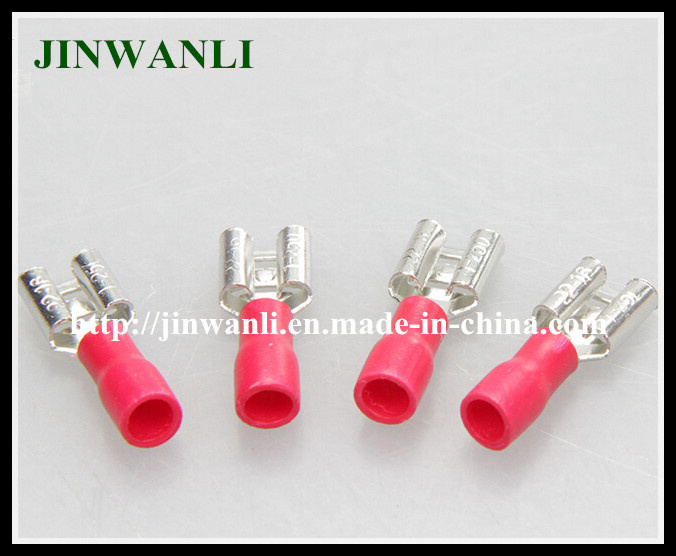

FDD Series Female Per-Insulating Terminal for Cable Wire Joint

Name: FDD Series Female Per-Insulating Terminal for Cable Wire Joint
Brand: all-electronics-online.com
SKU: 767963845
Availability: InStock
Rating: 4.9 (25 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Contact Termination Form:	Screws Fixed

Product Description

Female Disconnect Terminal

Futures:
1.Made by high purity copper
2.Tin plating:Corrosion Resistance
3.Certificate:ISO9001 SGS CE CQC
4.Color:Red Blue Black Yellow
5.Type:FDD
6.Thickness:0.7mm 0.8mm 1.0mm

7. Section of lead:
1.5 mm² (USA Spec 22 - 16 ) Imax = 10A
1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A
1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A

Detailed Information of Female Disconnect Terminal

Type	Female Disconnect Terminal , FDD series
Material	Brass
Plating	Tin
Insulation	PVC, Vinyl
Color	Red, Yellow, Blue
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²),12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	REACH, ROHS.

Data Sheet of Female Disconnect Terminal

Female Pre-insulating Joint (Inside Collar) Easy Entry Copper Sleeve
Conductor section:0.5-1.5mm²(A.W.G22 - 16) Imax=10A Material: Brass									Colour
JWL NO.	TYPE	NEMA TAB	THICKNESS OF MATERIAL	DIMENSION
		NEMA TAB	THICKNESS OF MATERIAL	B	D	d	L	H
		mm	mm	mm	mm	mm	mm	mm
JWL012-066	FDD 1.25-250	0.8 × 6.35	0.4	7.4	3.8	1.7	21.0	10.0	red

Conductor section:1.5-2.5mm²(A.W.G16 - 14) Imax=15A Material: Brass									Colour
JWL NO.	TYPE	NEMA TAB	THICKNESS OF MATERIAL	DIMENSION
		NEMA TAB	THICKNESS OF MATERIAL	B	D	d	L	H
		mm	mm	mm	mm	mm	mm	mm
JWL012-067	FDD 2-250	0.8 × 6.35	0.4	7.4	4.3	2.3	21.0	10.0	blue

Conductor section: 4-6mm²(A.W.G12 - 10) Imax=24A Material: Brass									Colour
JWL NO.	TYPE	NEMA TAB	THICKNESS OF MATERIAL	DIMENSION
		NEMA TAB	THICKNESS OF MATERIAL	B	D	d	L	H
		mm	mm	mm	mm	mm	mm	mm
JWL012-068	FDD 5.5-250	0.8 × 6.35	0.4	7.4	5.7	3.4	25.0	13.0	yellow

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
