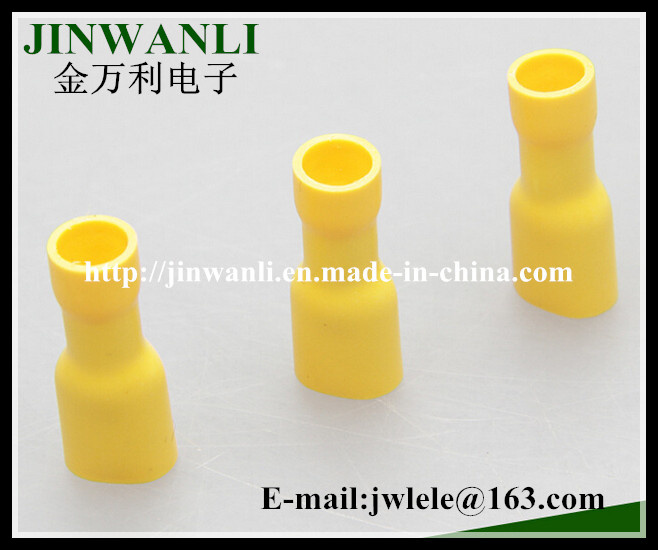

Fdfd1.25-250 Fully Insulated Brass Terminal Connector

Name: Fdfd1.25-250 Fully Insulated Brass Terminal Connector
Brand: all-electronics-online.com
SKU: 767768075
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Application:	Transmission of Electrical Signals

Product Description

Size or cable: 0.5~1.5mm2(American standard 22~16)
Max. Current: 10A
Insulating material: PVC

Size or cable:1.5~2.5mm2(American standard 16~14)
Size or cable:4~6mm2(American standard 12~10)
Max. Current: 24A

Insulating material: PV

Item No.	Dimension(mm)					Supply store Color	Introduction
Item No.	W	B	DΦ	dΦ	L	Supply store Color	Introduction
FDFD1.25-187(5)	7.6	5.6	3.8	1.7	20.0	red	Size or cable; 0.5~1.5mm2(American standard 22~16) Max.current:10A Insulating material:pvc
FDFD1.25-187(5)	7.6	5.6	3.8	1.7	20.0
FDFD1.25-250	9.4	7.4	3.8	1.7	21.5
FDFD2-187(5)	7.6	5.6	4.3	2.3	20.0	blue	Size or cable; 1.5~2.5mm2(American standard 16~14) Max.current:15A Insulating material:pvc
FDFD2-187(8)	7.6	5.6	4.3	2.3	20.0
FDFD2-250	9.4	7.4	4.3	2.3	21.5
FDFD5.5-250	9.4	7.4	5.7	5.7	25.5	yellow	Size or cable; 4~6mm2(American standard 12~10) Max.current:24A Insulating material:pvc

Type	Female full insulating terminal, FDFD series, Crimp Terminal
Material	Brass
Plating	Tin
Thickness	Thickness:0.5mm,0.8mm
Insulation	PVC
Color	Red, Blue, Yellow
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
Origin Country	Zhejiang, China
Test Report	REACH, ROHS.

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
