| Prod Model: |
FeCr25Al5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Wire |
| Carbon Content: |
Low Carbon |
Product Description
FeCr23Al5 Bright Spring Wire/Heating Element
Resistance Wire made of Nickel Chrome Alloys, Nickel Chrome Iron Alloys, Iron Chrome Aluminium Alloys, Copper Nickel Alloys.
Mainly used in heater, heating element and resistor, etc.
NiCr 80/20, NiCr 70/30, NiCr 60/15, NiCr 35/20
FeCrAl15-5, FeCrAl20-5,FeCrAl 25-5, etc...
Constantan, Alloy 30, Alloy 60, Alloy 90, etc.
Electric Resistivity from 0.02 u ohm/m-1.53 u ohm/m
Operate Temperature from 200 C to 1400 C
Pls be free to contact us if there is any question.
NiCr:
RESISTOHM 20, RESISTOHM 30, RESISTOHM 40, RESISTOHM 60, RESISTOHM 70, RESISTOHM 80
FeCrAl:
RESISTOHM 125, RESISTOHM 135, RESISTOHM 140,
RESISTOHM 145, RESISTOHM 153
CuNi
Constantan, Cuprothal 5, Cuprothal 10, Cuprothal 15, Cuprothal 30, Eurica
| FeCrAl Alloy Grade | Chemical Composition % | | | | | | | |
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Re | Others |
| max(≤) | | | | | | | | | | |
| 1Cr13Al4 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 12.5-15.0 | ---- | 3.5-4.5 | 0.1 | Bal. |
| 0Cr15Al5 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 14.5-15.5 | ---- | 4.5-5.3 | 0.1 | Bal. |
| 0Cr25Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 23.0-26.0 | ≤0.60 | 4.5-6.5 | 0.1 | Bal. |
| 0Cr23Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 20.5-23.5 | ≤0.60 | 4.2-5.3 | 0.1 | Bal. |
| 0Cr21Al6 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 19.0-22.0 | ≤0.60 | 5.0-7.0 | 0.1 | Bal. |
| 0Cr21Al4 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 21.0-23.0 | ≤0.60 | 3.0-5.2 | 0.1 | Bal. |
| 0Cr21Al6Nb | 0.05 | 0.025 | 0.025 | 0.7 | ≤0.60 | 21.0-23.0 | ≤0.60 | 5.0-7.0 | 0.1 | Bal. |
| 0Cr27Al7Mo2 | 0.05 | 0.025 | 0.025 | 0.7 | ≤0.40 | 26.5-27.8 | ≤0.60 | 6.0-7.0 | 0.1 | Bal. |
Chemical Composition and Propertes:
Propertes/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 |
Main Chemical Composition(%) | Ni | Bal. | Bal. | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 |
| Fe | ≤ 1.0 | ≤ 1.0 | Bal. | Bal. | Bal. |
Max Working Temperature(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 |
Resistivity at 20ºC
(μ Ω · m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 |
Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 |
Thermal Conductivity (KJ/m· h· ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 |
Coefficient of Thermal Expansion(α × 10-6/ºC) | 18 | 17 | 17 | 19 | 19 |
Melting Point(ºC) | 1400 | 1380 | 1390 | 1390 | 1390 |
Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 |
Micrographic Structure | austenite | austenite | austenite | austenite | austenite |
Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic |
| CuNi Alloys Grade | Electrical resistivity
(20degreeΩ
mm² /m) | temperature coefficient of resistance
(10^6/degree) | Density
g/mm² | Max. temperature
(degree) | Melting point
(degree) |
| CuNi1 | 0.03 | < 1000 | 8.9 | 200 | 1085 |
| CuNi2 | 0.05 | < 1200 | 8.9 | 200 | 1090 |
| CuNi6 | 0.10 | < 600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | < 570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | < 500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | < 380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | < 250 | 8.9 | 300 | 1135 |
| CuNi22 | 0.30 | < 160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | < 100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ± 40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.50 | < -6 | 8.9 | 400 | 1280 |

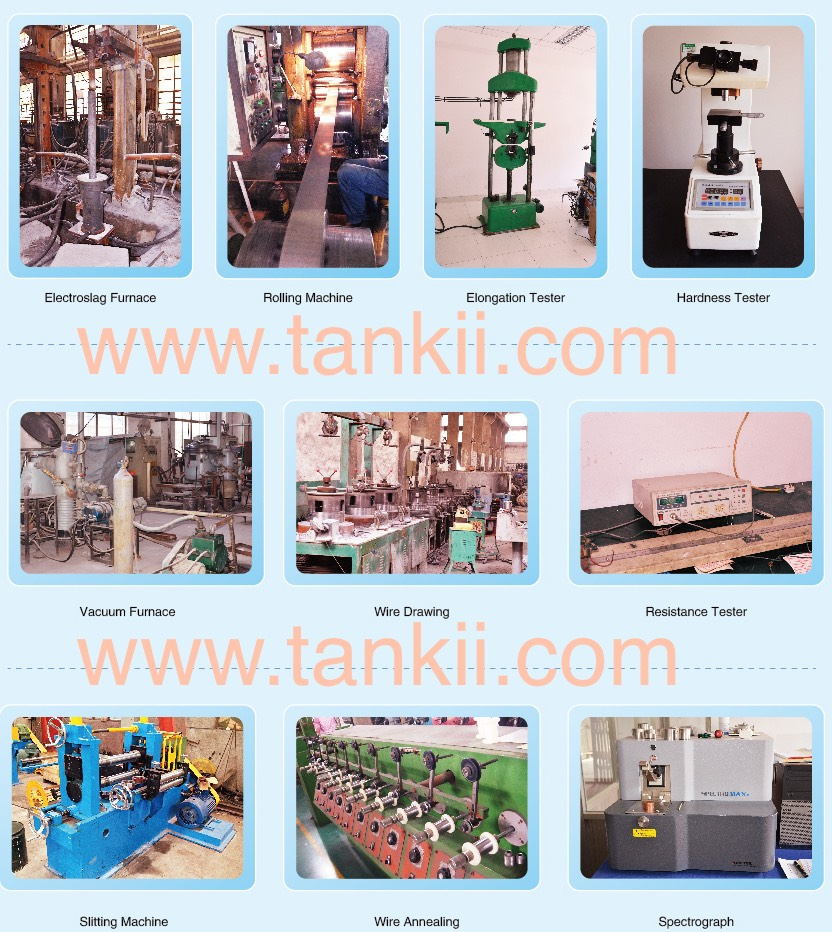

Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
