Fiber 48 Core Armored Cable with Self-Supporting Messenger

Name: Fiber 48 Core Armored Cable with Self-Supporting Messenger
Brand: all-electronics-online.com
SKU: 757924735
Availability: InStock
Rating: 4.9 (121 reviews)

Price:	US $ 0.33/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTC8S Fiber Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	GYTC8S
Fiber Count:	2-288 Core Fiber Cable
Brand Name Of Fiber:	Customized
Loose Tube Material& Filling Material:	PBT&Jerry
Structure Section:	Figure "8" Cross Section
Color Of Loose Tube:	Blue, Orange, Green, Brown, Red etc
Central Strength Member:	Reinforced Messenger Wire
Strength Material:	Corrugated Steel Tape
Core Moisture Protection Methodology:	Water Blocking Tape
Installation Style:	Self-Support Aerial Cable
Application:	Fo Cable Fiber Optic Cable
Certification:	Reach, Tlc, etc
Sheath Material:	MDPE / HDPE / LSZH PE
Core:	2-288 Core
Allowed Lateral Pressure:	Long Term:1000n; Short Term:2000n
Type:	Single-Mode or Multimode Fiber
Brand:	Tw-Scie or OEM
Connection Structure:	Fiber Optic Cable

Product Description

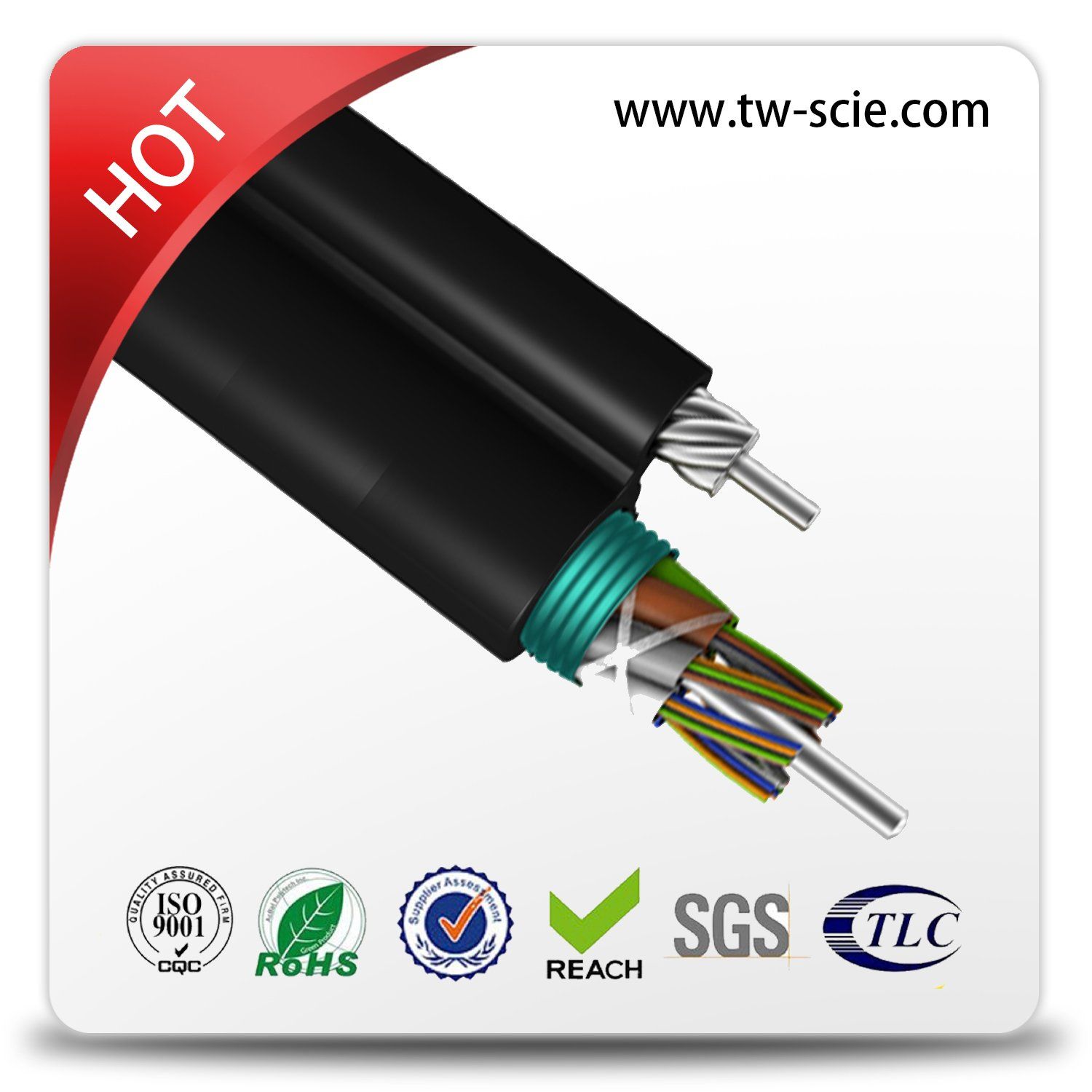

Fiber Armored Cable 48 Core with Self-supporting Messenger

Technical data:

Fiber core

Stranded Wire

Cable diameter (mm)

Messenger cable Diameter (mm)

Cable Height (mm)

Cable weight (kg/kg)

Min.bend radius

Max. Running tension (N)

Safe running tension (N)

Min.Breaking tension (N)

Max.crush loading (N/100mm)

Dynamic

Static

Short term

Long term

2-12

1×7-3.0

8.3

5.0

15.8

135

10D

20D

3000

1000

7990

2000

1000

Product Description
This GYTC8S 144Core Fiber Optic Cable has been designed for long haul / backbone application. GYTC8S Fiber Optic Cable are designed for easy and economical installation.

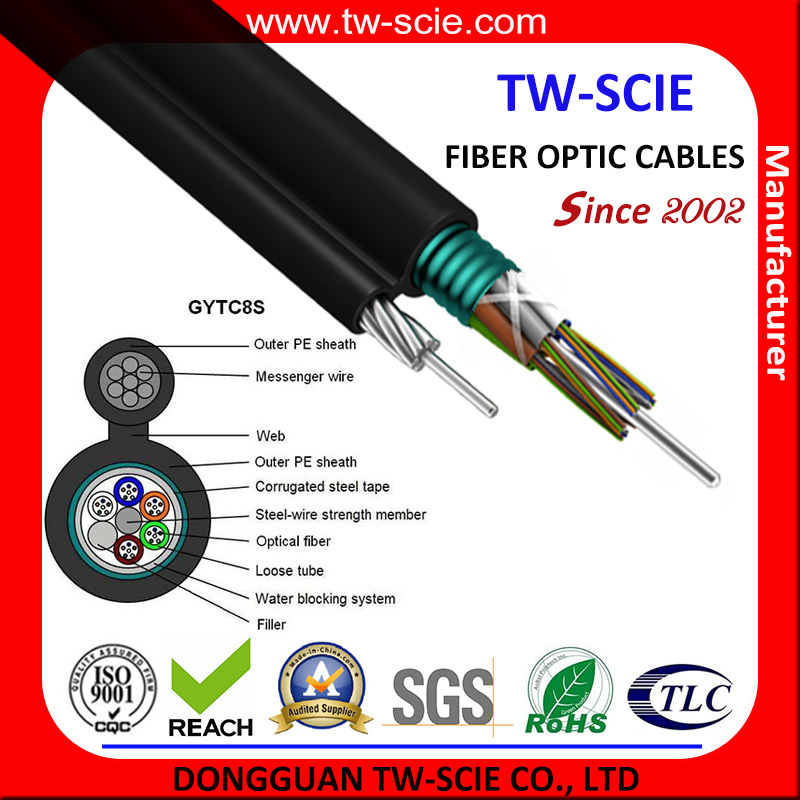

GYTC8S 96Core 12Core Fiber Optic Cable Structure &Properties:
1. Up to 24 fibers The loose tube OS centrally situated with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath prociding providing property crush resistance and gun shot resistance features.
3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

Figure 8 structure stranded cable:

This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.

Tag: Armored cable; Duct cable; Multi-tube cable.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
