Fiber Cable Trunk MPO/MTP Patch Cord with Pulling

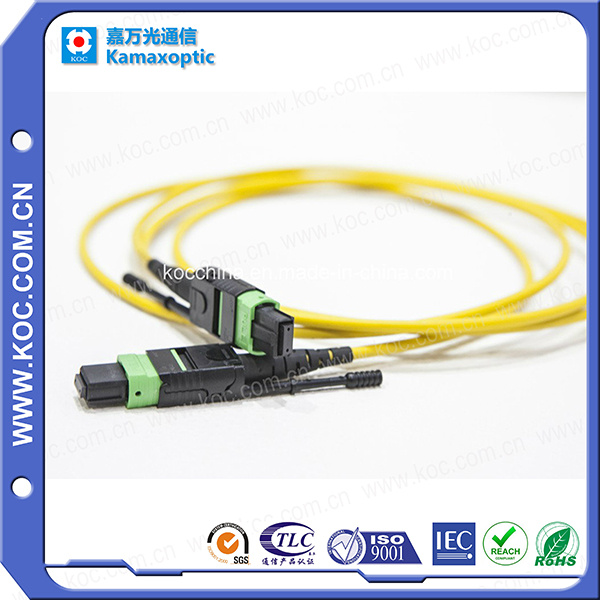

Name: Fiber Cable Trunk MPO/MTP Patch Cord with Pulling
Brand: all-electronics-online.com
SKU: 775166085
Availability: InStock
Rating: 4.5 (83 reviews)

Price:	US $ 1.7-2/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO/MTP patch cord with pulling
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Singlemode Duplex Lszh:	2.0mm / 3.0mm/ 0.9mm
Cable Jacket:	PVC, Lszh, Ofnr, Ofnp, PE
Connector Type:	Sc,LC,FC,St,Mu,MTRJ,MPO,MTP
Cable Color:	Blue,Green,Aqua,Red,Magenta,Beige
Housing Material:	Plastic,Metal
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	MPO
Material Shape:	12 Fibers
Brand:	Koc

Product Description

APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
AVAILABILITY
Simplex/Duplex patch-cord available
Fan-out available
Pigtail available
Various boot (cable) sizes available
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE

Performance:

Insertion Loss(dB)	Low loss≤0.35dB, normal connector ≤0.75dB
Return Loss(dB)	≥50dB
Durability	≥1000 times
Tensile strength	0~15Kg(beside Φ0.9mm)
Vibration test	<0.1dB(5-50HZ,1.5mm)
Environment temperature	-25ºC~+70ºC

Company information:

Kamaxoptic communication co., Ltd., one of KOC Group members, is specialized in fiber optical passive components and assemblies. Its 10 years' experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.

Main Product:
Patch cords and patch panel of various types;
Attenuator of various types;
FTTH devices and components;
Fiber optical equipments, tools and testers..

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
