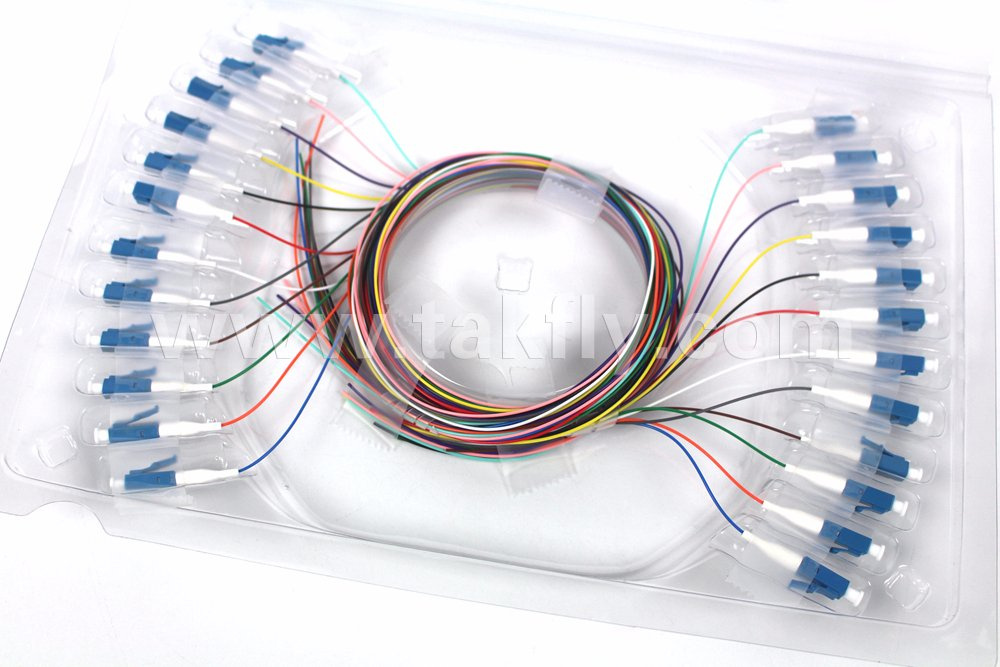

Fiber Optic 0.9mm 12 Color Cable LC Connector Pigtail

Name: Fiber Optic 0.9mm 12 Color Cable LC Connector Pigtail
Brand: all-electronics-online.com
SKU: 809345465
Availability: InStock
Rating: 4.5 (115 reviews)

Price:	US $ 1-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	pigtail
Cable Diameter:	0.9mm
Fiber Mode:	Singlemode
Length:	According to Requirement
Color:	White or Colors
Package:	PE Bag +Carton
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Sheath Material:	PVC or LSZH

Product Description

Fiber Optic 12 color cable 0.9mm with LC Connector Singlemode Pigtail 1meter

Pigtails are used in permanent connections between fiber patch panels and incoming cables / single blown fibers.
Our offers a wide range of pigtails, designed and manufactured for demanding network applications. It comprises of multimode and singlemode. Pigtails are pre-constructed with connectors. Connector options include small form factors
such as LC, MU as well as SC, FC and ST. These are based on 900μm tight buffer cores and suitable for internal use
only inside suitable Fiber Management Systems.

Features
.   Constructed from high quality connectors and standard fibers
.   Wide range of connector and fibre options available
.   Tight Buffer 900µm buffer internal construction as standard
.   Custom lengths, connector combinations and polishes are available.
.   Other cable diameters and fibre types available on request

Specifications

Connector Type	SC, LC, FC, ST, MU
Fiber Type	G652D, G657A, OM1, OM2, OM3, OM4
Polish or Ferrule Interface Type	PC, UPC, APC
Jacket Material	PVC or LSZH
Cable Diameter	0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Color (Multimode: OM1 & OM2)	Orange
Jacket Color (Multimode: OM3)	Aqua
Jacket Color (Multimode: OM4)	Aqua or Purple
Jacket Color (SingleMode: G652D & G657A)	Yellow
Insertion Loss (dB) Max.	≤0.3
Return Loss (dB) Singlemode	PC≥45, UPC≥50, APC≥60
Return Loss (dB) Multimode	PC≥35dB
Note:Other Jacket colors may be available upon request.

Ordering Information

A	B	C	D	E
connector Type	Fiber Type	Length	Jacket Material	Jacket Color(CL)
FC,SC,ST,LC	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	1M 2M 3M 10M	PVC LSZH	Yellow Orange Aqua Purple
