| Prod Model: |
SC APC |
| Insertion Loss: |
≤0.5dB(Typical 0.2dB) |
| Return Loss: |
>55dB |
| Allowed Tensile Strength: |
>40n |
| Certification: |
Ce, RoHS, ISO9001 |
| Operating Temperature: |
-40~+75ºC |
| Transport Package Way: |
Carton |
| Type: |
Field Installable |
| Gender: |
Male |
| Applications: |
Communication;FTTH |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Application: |
FTTH |
Product Description
Product Description

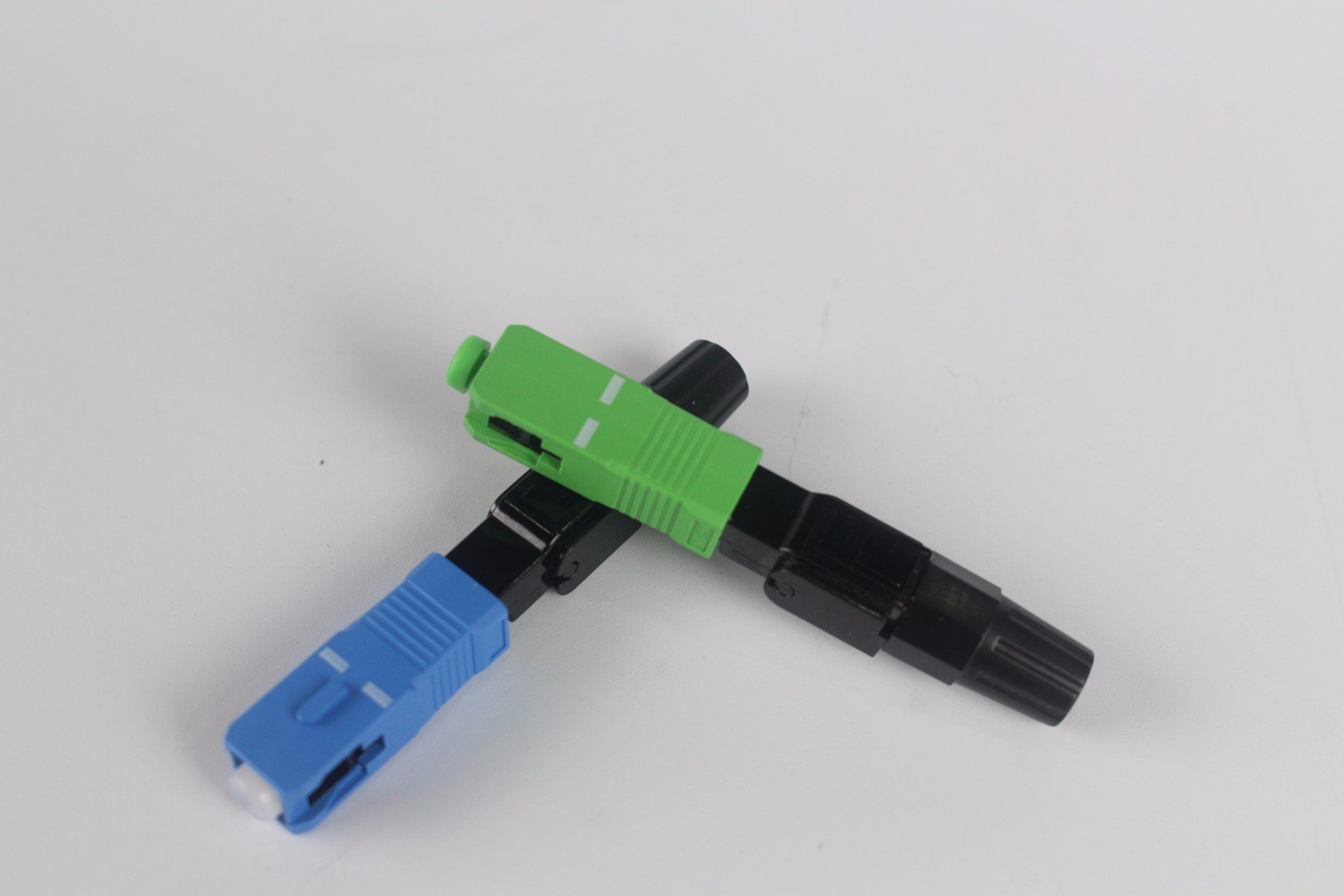

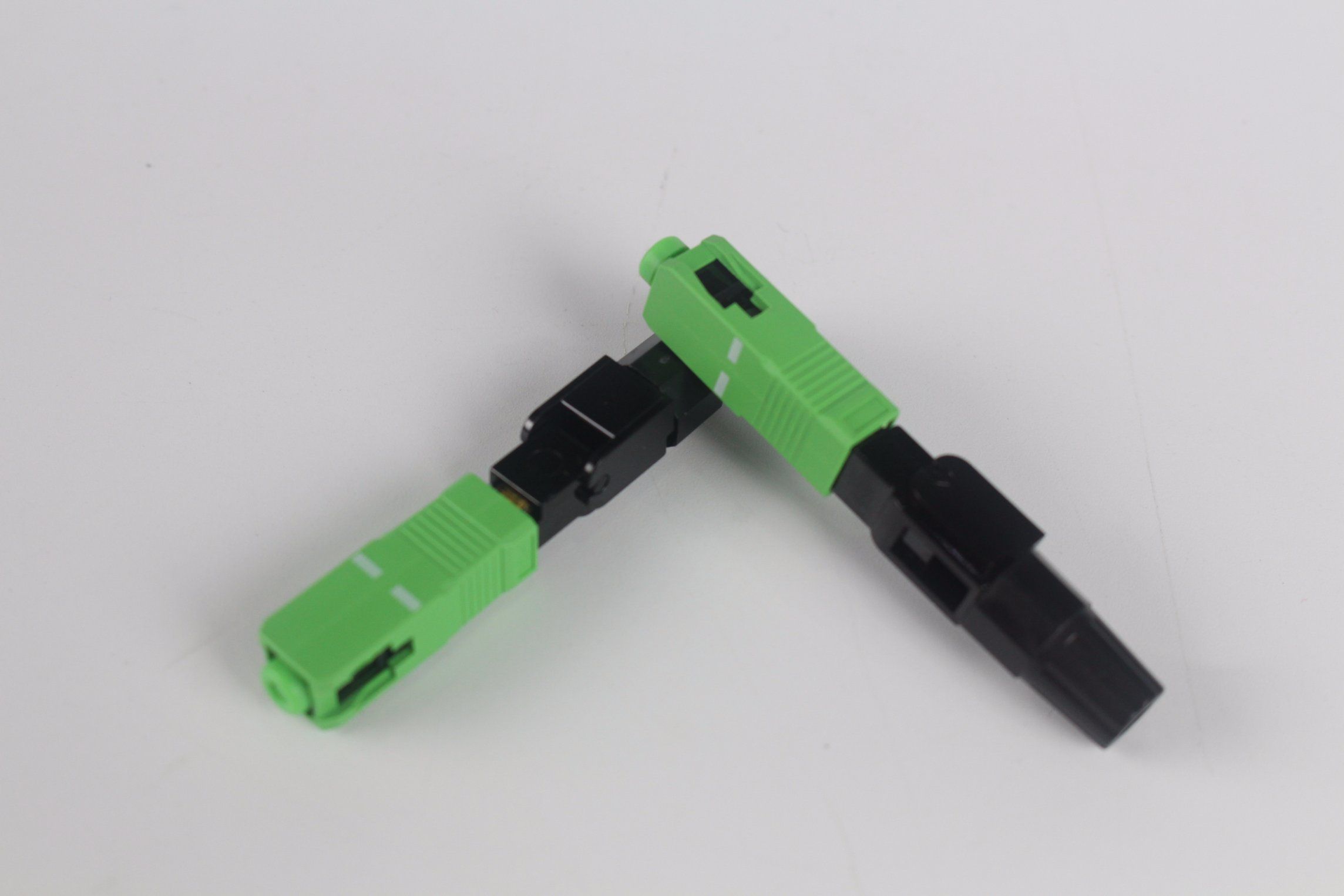

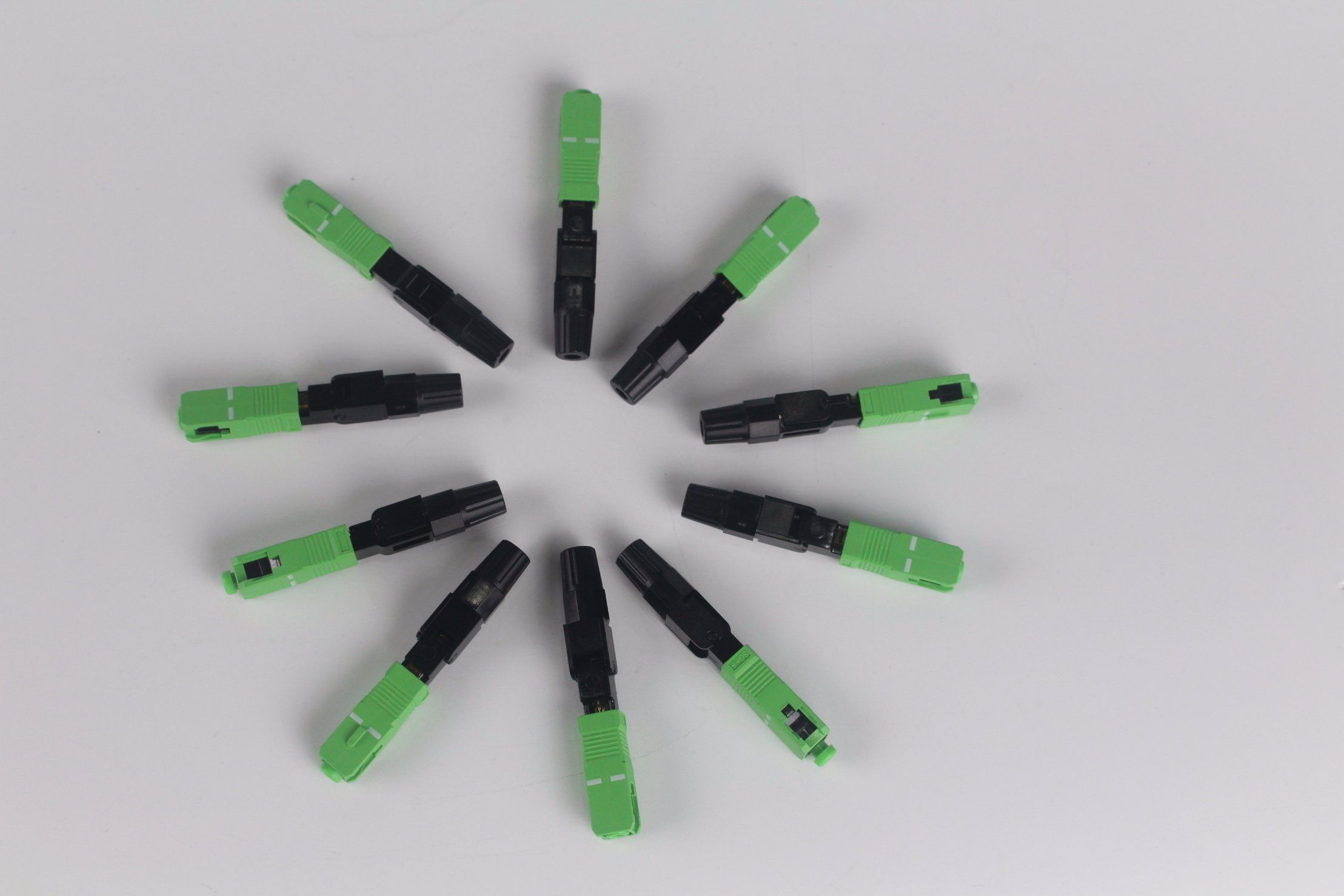

FTTH Fiber Optic Fast Connector SC APC Fast Connector
Quick Assembly fiber optic fast connector can provide quick and easy terminations of fibers in the field, and options are availablefor 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.
Features: 1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss.
Applications1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications

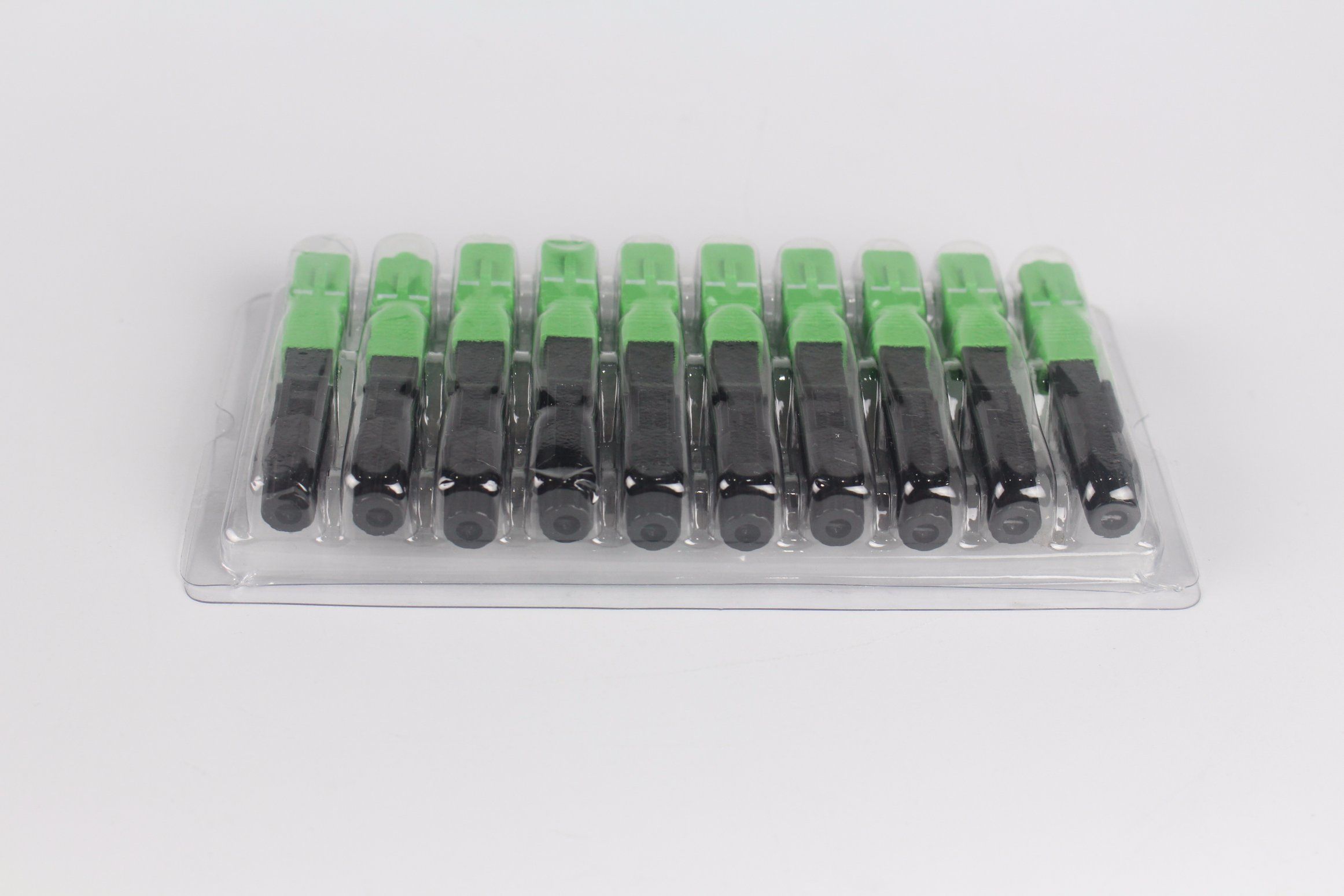

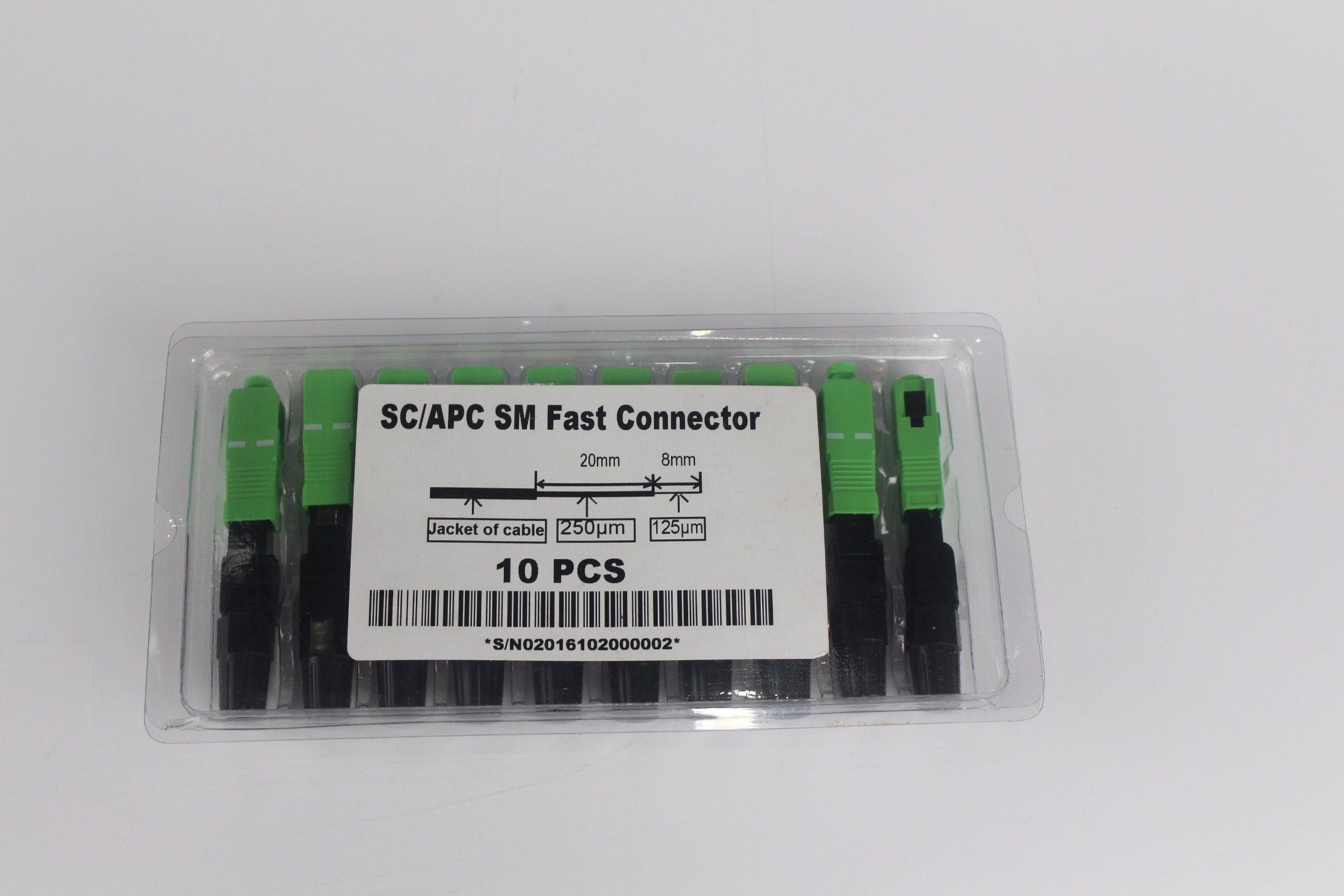

Packaging & Delivery Packaging Detail: Transparent plastic bag or upon customer's request
10 pieces /plastic bag
40 plastic bags/ carton box
Delivery Detail: Around 3-5 days after receipt of formal order
Data sheet | ITEM | Technical Parameters |
| Applicable for | Drop cable / Indoor cable |
| 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
| Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) |
| 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ≤ 0.5dB RL ≤ 5dB |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

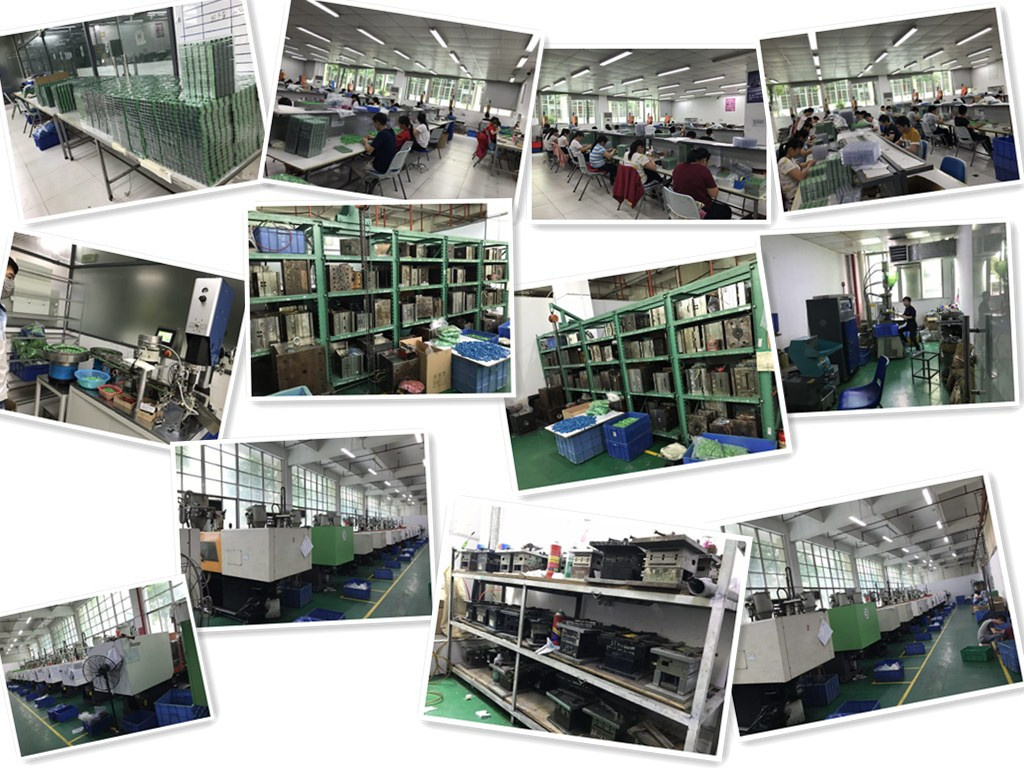

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
