Fiber Optic Amored Cable Single Mode 6 Core GYXTW

Name: Fiber Optic Amored Cable Single Mode 6 Core GYXTW
Brand: all-electronics-online.com
SKU: 752258335
Availability: InStock
Rating: 4.9 (36 reviews)

Price:	US $ 0.24/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Nmae:	Optic Cable
Installation Style:	Duct & Direct Buried
Brand Of Fiber:	Corning ,Yofc,Draka, Fujikura
Loose Tube Material:	PBT with Jerry
Waterblocking Material:	Water Blocking Tape or Filling Compound
Sheath:	MDPE / HDPE /LSZH
Sheath Color:	Black
Armoured:	Corrugated Aluminium Tape
Fiber Color:	Red,Black,Yellow,Violet,Pink,Aqua
Color Of Loose Tube:	Blue,Orange,Green,Brown,Grey,White,
Application:	Optic Cable
Type:	Single-mode Fiber
Certification:	Optic Cable
Connection Structure:	Optic Cable
Sheath Material:	PE

Product Description

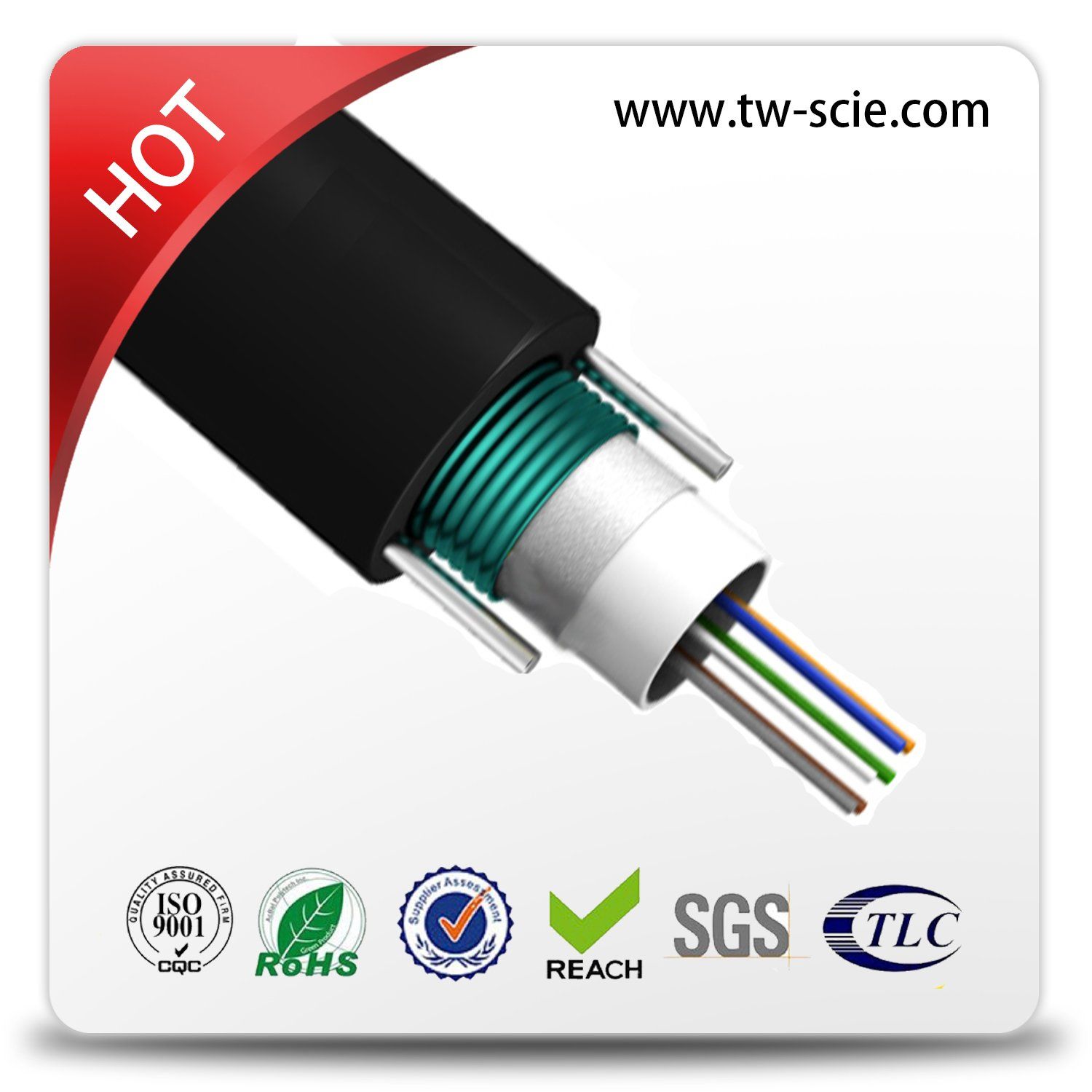

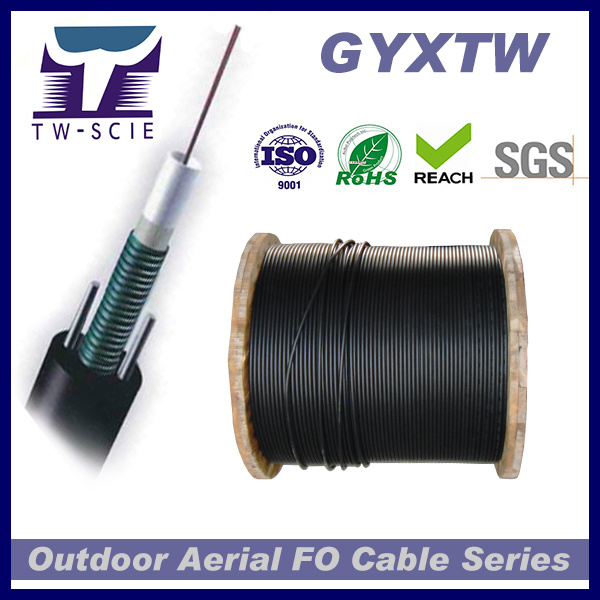

Fiber Optic Amored Cable Single Mode 6 Core GYXTW

Product Description
1. Suitable for ducts & aerial.
2. Long distance communication system.
3. Local area network system.
4. Subsriber network

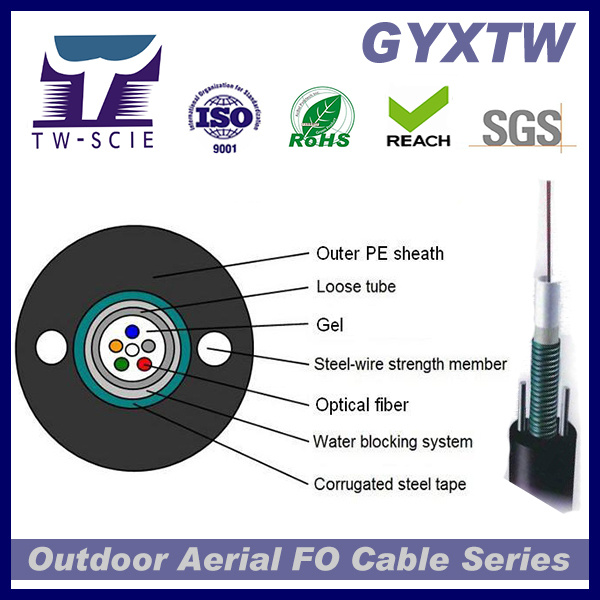

Optic cable prices GYXTW

1. Single jelly compound filled loose tube containing up to 24 fibers
2. Waterproof tape between the steel tape and loose tube with jelly compound.
3. Duble-sided PE corrugated steel tape armored.
4. Parallel double steel wire as strength member.
5. Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.

Packaging & Shipping

Internetional fiber optic cable prices exporting experiences more than 10 years. If you have any questions about packing or shipping, we can offer you our best services. Inculding firming the packing or arranging the shipping with shipping company.

Company Information

Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:
optic cable, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.

Optic cable is mostly competitive, contact us now!

Optic Cable Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-12	8.9	90	10 times O.D.	20 times O.D.	1500	600	1000	300
14-24	10.2	110

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
