Fiber Optic Cable for 12 Core MPO to LC

Name: Fiber Optic Cable for 12 Core MPO to LC
Brand: all-electronics-online.com
SKU: 812529555
Availability: InStock
Rating: 4.5 (47 reviews)

Price:	US $ 8-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	12 Core MPO/LC Multimode Fiber Patch Cable
Lead Time:	2-5 Working Days
Insertion Loss:	Lower Than 0.2dB
MOQ:	No Demand
Product Name:	12 Core MPO to Sc Fiber Optic Patch Cable
Warranty:	One Year
Application:	FTTH
Type:	Multi-mode Fiber

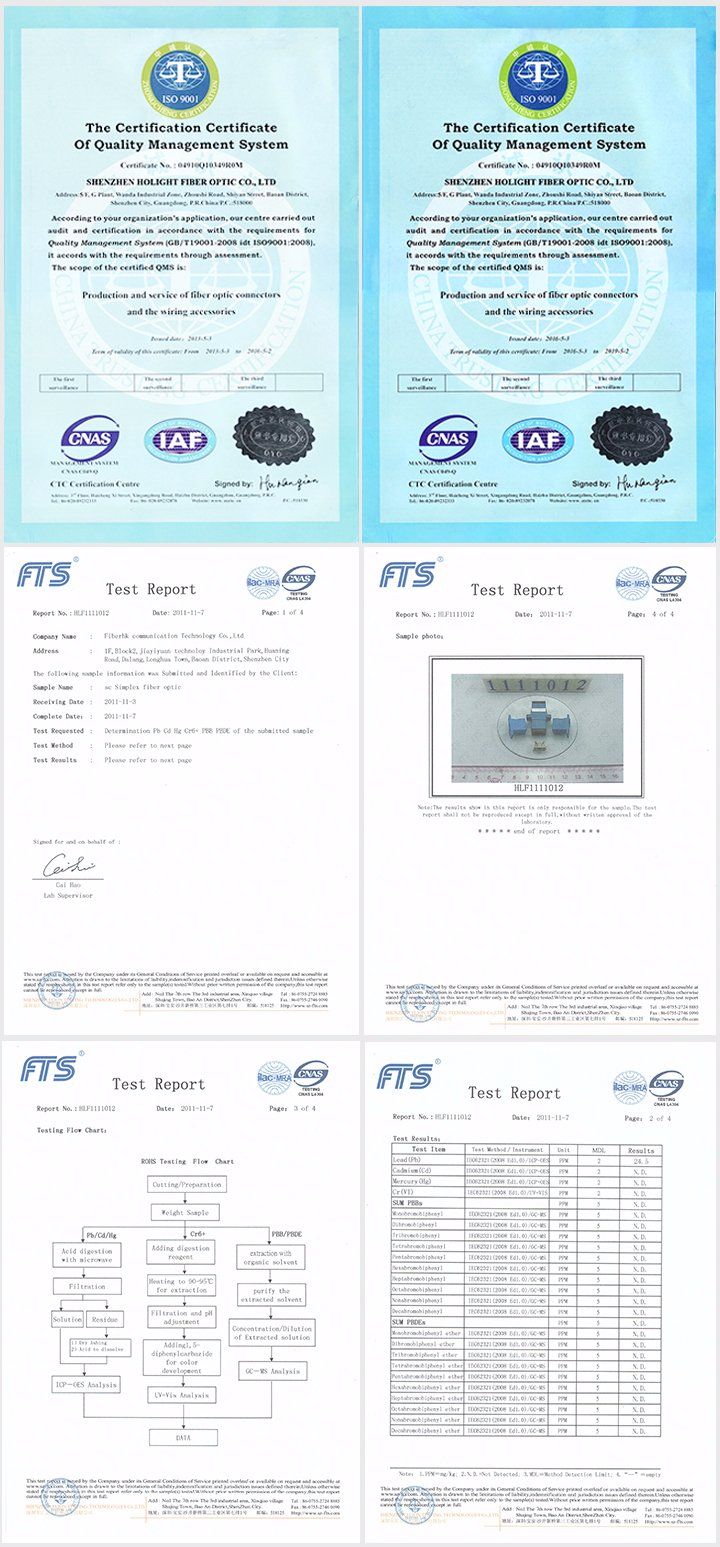

Certification:	ISO9001
Connection Structure:	MPO/Sc
Sheath Material:	PVC, LSZH and Ofnp Are Available.

Product Description

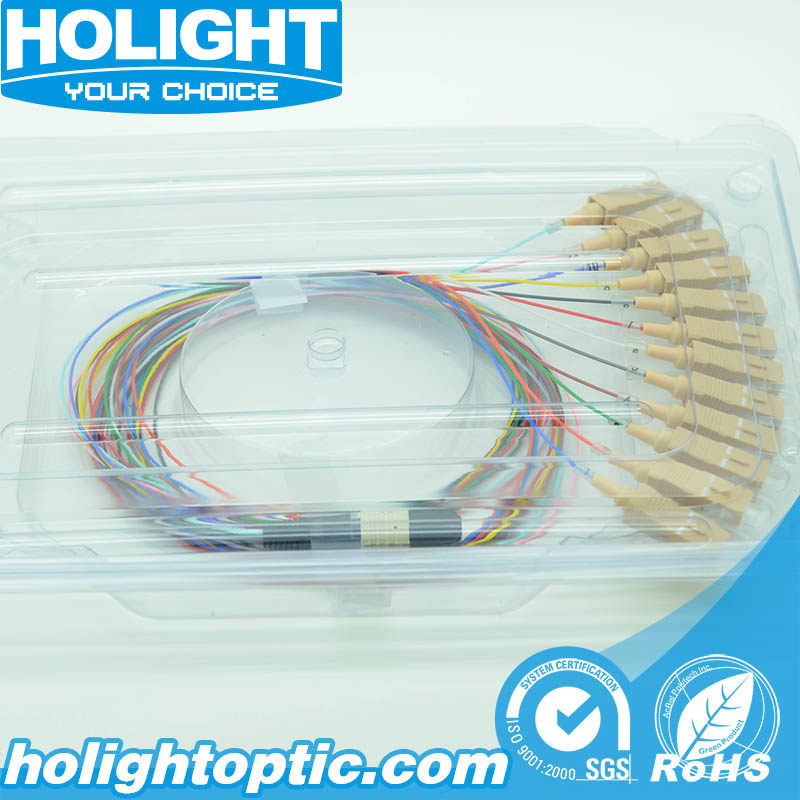

PRODUCT NAME : 12 CORE MPO to SC Multimode Fiber Optic Patch Cables

Features

· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Support use in attaching directly to 40/100G transceivers
· 100% factory tested, with test results included for each assembly
· Polarity options are TIA style A, B, or C (Method B is standard)
· For transition from trunk backbone assemblies to fiber rack system
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Used in conjunction with frame (Zero-U) or Flush Mount 1RU panels, and direct connect into SAN equipment
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling

MPO/MTP Termination
Type	Single mode(APC polish)		Multi mode(PC polish)
Fiber count	8, 12, 24 etc.		8, 12, 24 etc.
Fiber type	G652D, G657A1 etc.		OM1, OM2, OM3, OM4 etc.
Maximum Insertion Loss	Standard	Elite Low Loss	Standard	Elite Low Loss
	≤0.75 dB	≤0.35 dB	≤0.75 dB	≤0.35dB
Return Loss	≥55 dB		N/A
Working Temperature	-40ºC ~ 80ºC		-40ºC ~ 80ºC
Test Wavelength	1310nm		850nm
Generic Connector Termination
Type	Single mode		Multimode
	UPC	APC	PC
Max. Insertion Loss	≤0.3dB	≤0.3dB	≤0.3dB
Typical Insertion Loss	0.2dB	0.2dB	0.2dB
Return Loss	≥55dB	≥65dB	≥25dB
Working Temperature	-40ºC ~ 80ºC
Test Wavelength	1310nm		850nm
All MM SM shall be tested for IL

Above performance refers to Optic standard grade performance, flexible specification is available to fit for different installation needs.

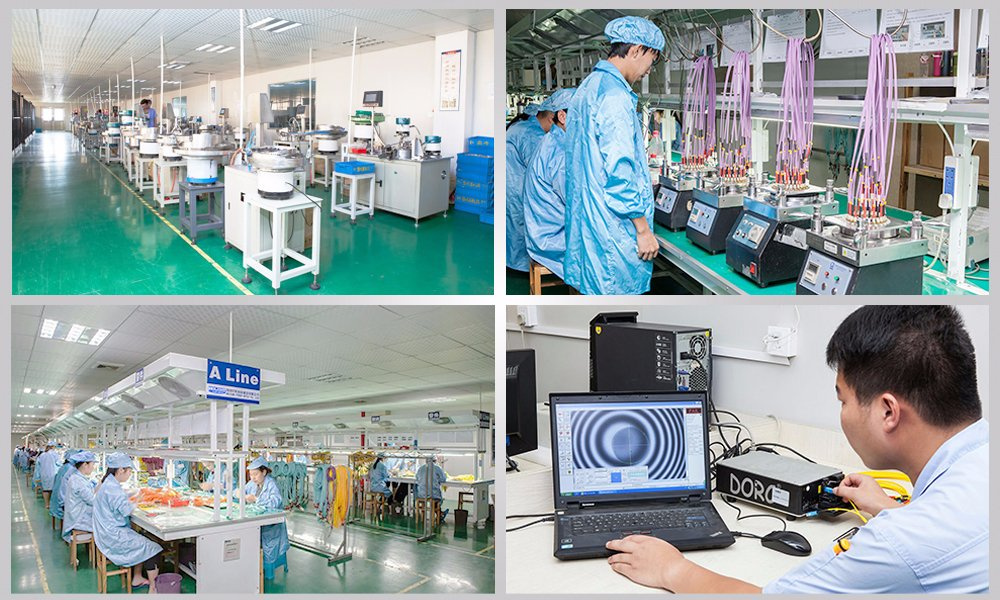

Holight, established in 2004, is a leading professional fiber optic patchcord manufacturer and exporter from China. We focus on producing fiber optic connector parts to overall assembly to the customers from all over the world. With nearly 12 years' experience in the export market, Holight has been continually growing and expanding the product lines to keep up the pace of industry trends.

We integrate with the international advanced production technology, management experience and domestic market realities, offer customers the most suitable program of cooperation by the best quality, the most reasonable price, and the best customer service, that's why our products export to countries and regions of the world.

Our company name "Holight" is made up of Honesty, Belief and Righteousness, we will always keep this management mode into our mind! By this strong mode, we are confident to make our company remain invincible in the intense market competition and keep developing, growing and marching towards success and splendor.

Please kindly feel free to browse our webside, if you are interested in any of our products, please do not hesitate to contact us for more detailed information, and we will be highly appreciated to hear from you. We would like to answer any doubts or questions from you. We are looking forward to cooperating with clients from both home and abroad.
