Fiber Optic Cable GYXTW 2-12c/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable

Name: Fiber Optic Cable GYXTW 2-12c/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable
Brand: all-electronics-online.com
SKU: 810366015
Availability: InStock
Rating: 4.5 (60 reviews)

Price:	US $ 150-300/Roll
Min Order:	20/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Cable GYXTW 2-12c
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Sheath Material:	PE

Product Description

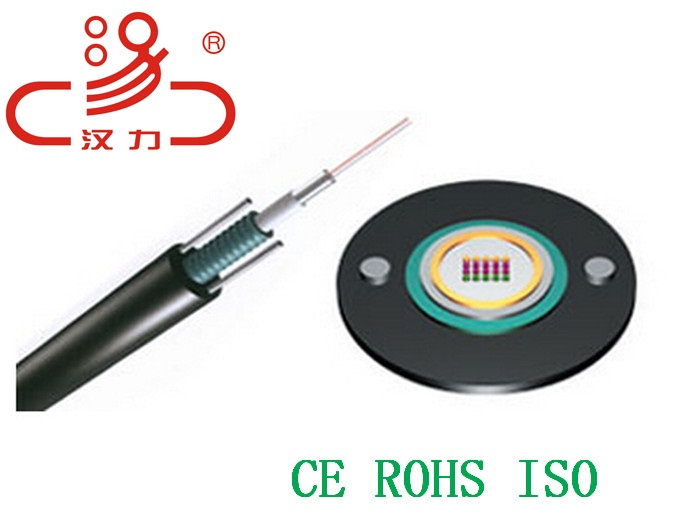

Product Model : GYXTW

Central loose tube optical fiber

Corrugated steel tape bonded PE sheath

Hot melt adhesive between steel tape and loose tube

PE sheath added with two paralleled steel wires

Application Range:Suitable for long-distance communication and interoffice communication

Laying Method:Pipeline, aerial or buried

Applicable Temperature:-40ºC~+60ºC

Product Features:

1.Low optical fiber transmission loss and low dispersion;

2.Endowing cables with excellent mechanical properties and environmental performance due to reasonable design and precision control over excess length of optical fibers in loose tube.

3.Compact structure and integrated steel tape and loose tube by hot melt adhesive ensure not only the moisture proof and water proof effect of the cable, but also no shrinkage of loose tube after the cables are laid.

4.Light weight and convenient laying;

5.Excellent flexibility and bending resistance capacity;

6.Strong compressive resistance of steel tape armouring and bullet proof function.

Technical Parameters

Fiber cores	Outer diameter of optical cable mm	Weight of optical cable kg/km	Minimum bending radius mm		Allowable minimum tensile strength N		Allowable minimum crush resistance mN/100mm
Fiber cores	Outer diameter of optical cable mm	Weight of optical cable kg/km	Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2~6	10.2	110	110	220	3000	1000	3000	1000
8~12	11.2	134	120	240	3000	1000	3000	1000

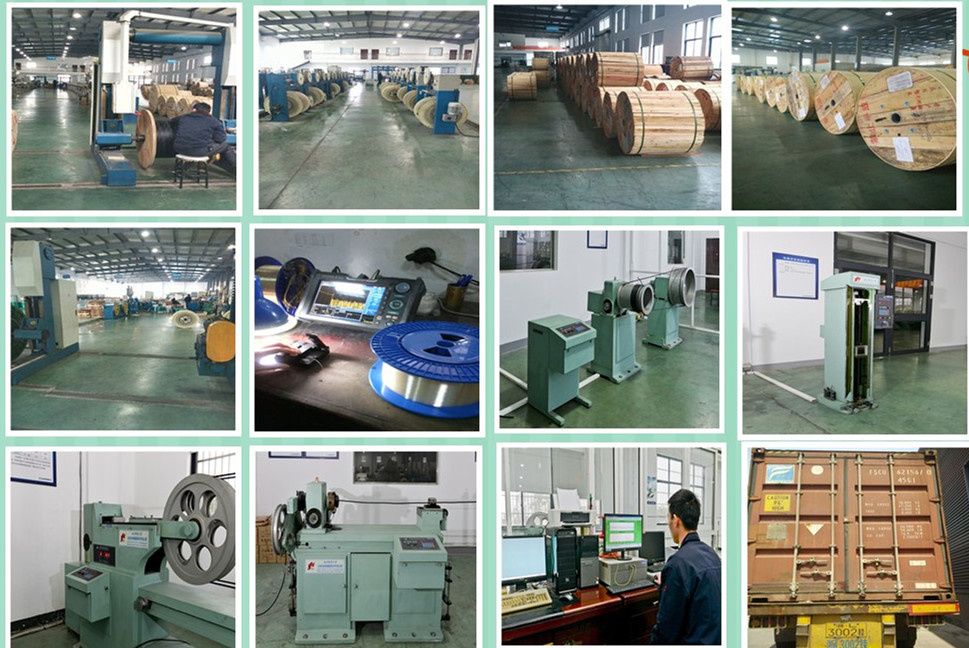

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
