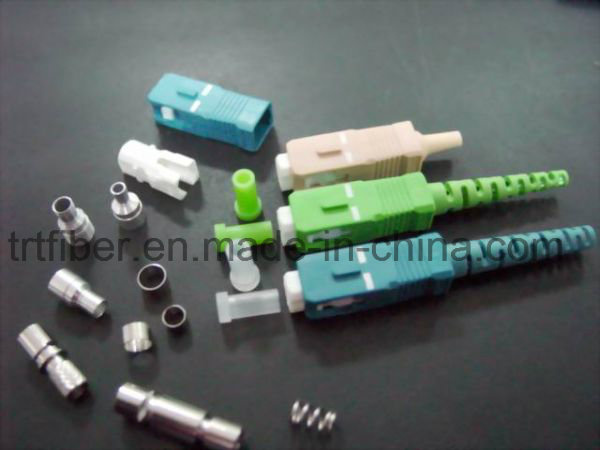

Fiber Optic Connetor of Sc

Name: Fiber Optic Connetor of Sc
Brand: all-electronics-online.com
SKU: 823962945
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC
Structure:	SC
Ferrule Endface:	PC(',UPC)
Transmission Medium:	Sm or mm
Number Of Cores:	Duplex
Connector Type:	Sc
Brand:	Tti

Product Description

ree-floating ceramic ferrule √
UL-rated plastic housing and boot √
Boots in a variety of colors √
High precision alignmentconctor √

Applications:
Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation

Availability:

-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Clips are available for LC duplex connectors
-Housing kits without ferrule are available.
-PC, UPC and APC are available
-Single-mode and Multi-mode are available
-Simplex and Duplex are available

Specifications
	Single mode	Multimode
Insert Loss	≤0.30dB	≤0.3dB
Return Loss	≥50 dB (PC)	≥35 dB(PC)
	≥55 dB (UPC)	≥35 dB(UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80 degree	From -40 to + 80 degree
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm

Similar Products
As you wish , Every arrangement can be made.

Why you choose us?
1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent TTI or your own brand box/roller design and package
4.Stirictly conform to ISO,RoHS,UL certificates
5.Long time experience at domestic and export market
6.The customer's idea is the most important

Welcome you visit our factory!

TTI brand, OEM/ODM fiber optic patch cable manufacturer, factory in shenzhen, China!

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
