| Fiber Cores: |
According to Requirement |
| Length: |
According to Requirement |
| Connector: |
According to Requirement |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Singlemode or Multimode |
| Connection Structure: |
Sc, St, FC, LC, Mu, MTRJ, E2000, DIN |
| Sheath Material: |
LSZH or PVC |
Product Description

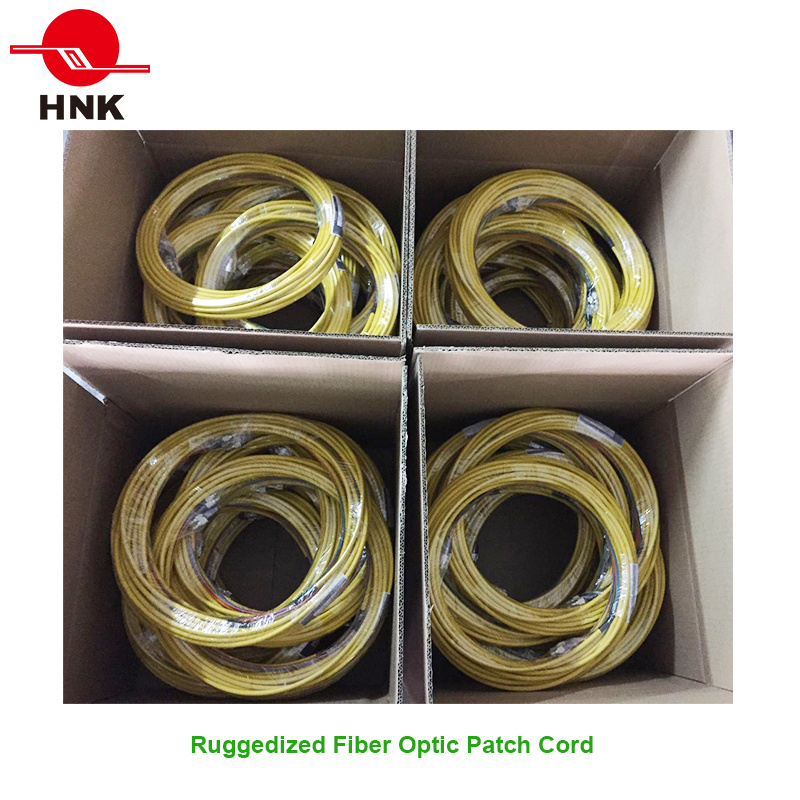

Fiber Optic Patch Cords are made of multi core Breakout Tight Buffer Optical Cable.The most p
ractical applications include data center main, horizontal, zone and equipment distribution area
trunk cables for Storage Area Network (SAN) and other applications or for fixed lengths in the
interbuilding or intrabuilding backbones.
Fiber Optic Patch Cord contains individual 900 μm fibers with kevlar and outer jacket (up to 2.0 mm)
and a strength member which are bundled in an outer jacket. These cables are constructed very high
fiber count up to 144 fibers.To easily identify the multiple fiber cables, 0.9mm cable itself are made
with different colors, if 2mm cable it will be put number label to identify.
Standards Compliance
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for
Singlemode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance (Insertion
Loss Customer specified length & Return Loss)
. Standard colour is Yellow, Orange, Aqua or Purple,
other colours available upon request
. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
. PC, UPC, APC connectors type available
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC
and 1.25mm ceramic ferrule for LC and MU
. Available in G652D, G657A, OM1, OM2, OM3 and OM4
. Position A/Position B markings
. Available in 0.9mm, 1.6mm, 2.0mm sizes
Specification
| ITEM | Value |
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 2,4,6,8,12,24,48,72,144 |
| Cable Type | Bundle cable or Breakout Tight Buffer Optical Cable |
| Fan-out tubing diameter | 0.9mm,2.0mm |
| Connector | SC, LC, ST, FC, MU, MTRJ, E2000, DIN, D4, SMA |
| Jacket Type | PVC, LSZH |
| Insertion Loss | <=0.2dB |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
| Operating temperature | -40 ° C ~ 85 ° C |
| Storage temperature | -40 ° C ~ 85 ° C |
Optical Characteristics| Fiber Type | Max. Attenuation(dB/km) | Min.Overfill Launch
Bandwidth (Mhz.km) | Min.Gigabit Ethernet
Link Distance (m) |
| Gigabit | 10Gigabit |
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Optical Performance Data| Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
| Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |
