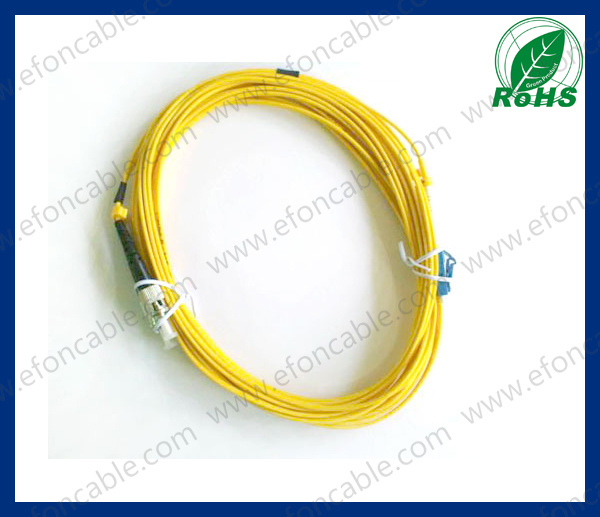

Fiber Optic Jumper Patch Cord LC-FC Single Mold

Name: Fiber Optic Jumper Patch Cord LC-FC Single Mold
Brand: all-electronics-online.com
SKU: 678919752
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 0.8/Piece
Trade Terms:	FOB,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-FC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Mode:	Single Mold&Muti Mold
Connector:	Simplex&Duplex
Polishing:	PC/Upc/APC
Cable Type:	0.9/2.0/3.0 Om1/Om2/Om3
Cable Length:	1,3,5,10,20m Customer Requirement
Fiber:	G652, G655, G657, Om1,Om2,Om3,Om4
Certificate:	RoHS ISO9001
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CE

Product Description

Fiber optic LC-FC pigtail/patch cord
Fiber optic LC-FC Pigtail, SM and MM, single and duplex cores, Φ 0.9mm, Φ 2.0, Φ 3.0mm (PVC/LSZH), length is specified.
LC/FC/UPC, LC/FC/APC avaiable

· Features
Low insertion loss.
High return loss.
High stability and reliability.
· Application
FTTH, LAN, PON & Optical CATV
Local ring net
Optical fiber communication system
Optical fiber test equipment
Optical fiber sensor

Odering information and Part number system
Terminal 1: FC SC LC ST MU MTRJ E2000 SMA DIN
End-face type: UPC, APC
Terminal 2: FC SC LC ST MU MTRJ E2000 SMA DIN PIGTAIL
End-face type: UPC, APC
Fiber core S=Simplex D=duplex
Fiber type S=Singlemode 9/125 5=Multimode 50/125 6=Multimode 62.5/125
Cable outer dimension A=3.0mm B=2.0mm C=0.9mm
Cable outer coating material: P=PVC, L= LSZH
Cable length customized.

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord

ST, MU

MT-RJ, MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

°C

-40~75

Storage temperature

°C

-45~85

Cable diameter

Φ3.0, Φ2.0, Φ0.9

φ3.0, φ2.0, φ0.9

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.

We have a professional customer service team, which is always ready to consult you on all the issues related to our products.

Our Principles:
* Full customer satisfaction
* Commitment to high-quality service
* Relationships based on mutual trust and respect
* Long-term cooperation rather than one time profitable sale

EFON CABLE is your reliable partner in mainland China!

We were established in 2001 as a manufacturer of fiber optic cable. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the globe.
