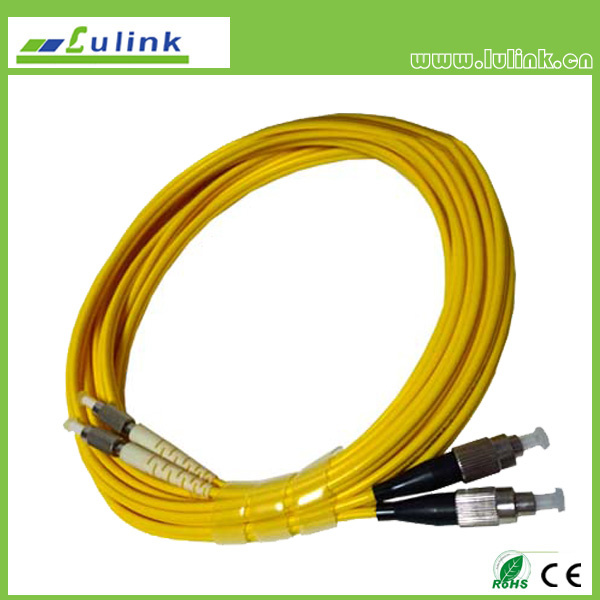

Fiber Optic Patch Cable Fiber Optic Patch Cable Fiber Cable
| Price: |
US $ 0.61-2.72/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
LK03DINFC102 |
| Application: |
Test Equipment |
| Certification: |
ISO9001 |
| Type: |
Both Types |
| Connection Structure: |
Many Kinds |
Product Description
LK03DINFC102DIN-FC,SM,DUPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable:FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode:color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode:color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes:1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensorsTechnical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03FCFC101FC-FC,SM,SIMPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:3. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.4. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensorsTechnical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03FCFC102Specifection:FC-FC,SM,DUPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03FCFC201FC-FC,MM,SIMPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1. the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2. wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensorsTechnical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03LCFC102LC-FC,SM,DUPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensorsTechnical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03LCLC101LC-LC,SM,SIMPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03LCLC102LC-LC,SM,DUPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03LCLC201LC-LC,MM,SIMPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03LCSC102LC-SC,SM,DUPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03MTMT201MTRJ-MTRJ,MM,SIMPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10msingle mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5. a local area network (LAN) 6. Test equipment7. fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03SCSC101SC-SC, SM, SIMPLEX, 2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. It is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5. A local area network (LAN) 6. Test equipment7 fiber optic sensorsTechnical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03LCSC102LC-SC,SM,DUPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03SCSC201SC-SC,MM,SIMPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03SCSC402SC-SC,MM,DUPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Fiber patch cable using notes: 1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2.optical access network3 fiber-optic data transmission4. Fiber optic CATV5.a local area network (LAN) 6. Test equipment7 fiber optic sensors Technical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
LK03STST101ST-ST,SM,SIMPLEX,2.0/3.0MMFiber optic patch cable brief introductionFiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.Fiber Jumper structure1.it's structure is similar with the structure of coaxial cable, both of them do not mesh shield. 2. The center is glass core of light transferring 3. Core diameter of Multimode fiber is 15μm ~ 50μm, 4. Core diameter of Single-mode fiber is 8μm ~ 10μm.5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core6. A thin plastic coat outside is used to protect the envelope.Fiber jumper CategoryTransmission medium:1. Silicon fiber optic jumper2. Plastic fiber optic jumperBased on connector:FC patch cable,SC patch cable,ST patch cable,LC patch cable,MTRJ patch cable,MPO patch cable,MU patch cable,SMA patch cable,FDDI patch cable,E2000patch cable,DIN4patch cable,D4patch cable and so on.Normal fiber optic patch cable: FC-FC,FC-SC,FC-LC,FC-ST,SC-SC,SC-ST and so onBased on Cable outer sheath material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.Based on Patch cable length:0.5m,1m,2m,3m,5m,10mBased on single mode or multi-mode:1. Single mode: color yellow can describe fiber optic patch cable, the color of connector and out jacket is blue, long distance transferring.2. Multi-mode: color orange or gray can describe fiber optic patch cable, the color of connector and out jacket is black, short distance transferring.Based on Fiber patch cable using notes: 1. the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.2. Wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.Characteristics of optical fiber patch cable1. Low insertion loss2 good repeatability3.big Return Loss4.Mutual insert performance5 good temperature stabilityFiber optic patch cable Application1. An optical fiber communication system2. Optical access network3. Fiber-optic data transmission4. Fiber optic CATV5. A local area network (LAN) 6. Test equipment7. Fiber optic sensorsTechnical data| Data | Unit | FC,LC,SCArmored jumper | SR,MU | MT-RJ,MPO | E2000 |
| | SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC
| PC
| PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insert loss | DB | ≤0.3 | ≤0.2 | ≤0.3
|
≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | DB | ≥45 | ≥50 | ≥60
| ≥30
| ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Work wavelength | NM | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Interchange ability | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | DB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Work temperature | ºC | -40 to 75 | -40 to 75 | -40 to 75 | -40 to 75 |
| Install temperature | ºC | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Fiber OD | MM | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 | 3.0/2.0/0.9 |
Lulink Electronics Technology Co., Ltd. Built on the year of 2001, initially as a leading network communication product supplier, engaged in connecting every corner of the world via the network in the most convenient manner and enriching people's life.
Now Lulink became one of Group company focus on the development, production, sales and service of Telecommunication products and generic cabling. The Factory base location on province Zhejiang, Guangdong. The office and Research central on Guangzhou, Dongguan and Shenzhen,? Which have hundreds staffs, and the capital asserts reach dozens of million RMB.
Luink's progress based on the market demands and strong requests of loyal customers to Lulink products. Our main products include all cabling components and finished products: LAN cables, patch cable, faceplate, keystone, patch panel, cabinet, fiber optical cable, fiber optical adaptor, FO patch panel, ODF; And cable assembly as USB cables, HDMI cables, VGA cables, power cables, AV cables, computer cables and OEM cables. We endeavor to develop new products at a high speed to meet your needs, and also provide the solution for engineering project. The quality and price of our products/services are very competitive which are affirmed fully by our clients. Our markets spread all over Europe, America, Southeast Asia and the Middle East.
Lulink will do more on the market research, Humanistic product design, professional service improvement, We expect to develop and make progress together with you while us continuously perfect and surpass ourselves. Let us work together to create a better and more brilliant future!
Thank you for visiting our website. Hope you find appropriate products and service from us.
More >
Other Products with This Manufacturers
