Name: Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optical
Brand: all-electronics-online.com
SKU: 721193765
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC/LC/ST/SC-MM/SM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Any Length Is Ok:	12 Colors Cable for Choice
Cable Diameter Can Be Customized:	Boots Colors Can Be Customized
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

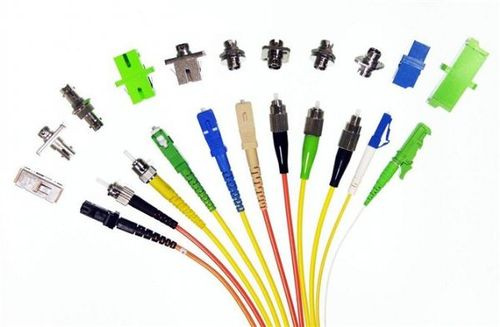

Fiber Optic Patch Cord, LC/UPC-LC/UPC MM 10G OM3 Duplex, with LC Fiber Optical Connector,

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
Fiber ferrule PC/UPC/APC polishing
Diameter: 0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Fiber cable simplex or duplex is available
Cable jacket PVC or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C
Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Spec.	fiber optic patch cord / fiber optic cable
Insertion loss	Less than 0.3dB
Return loss	MM more than 35dB
	SM more than 55dB
	APC more than 60dB
Repeatability	Less than 0.2dB
Changeability	Less than 0.1dB
Operting termperature	-40~75
Storage temperature	-40~75
Tensile strength	100N
Min. bending radius	35mm
Length	Customized

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
