Fiber Optic Patch Cord Patchcord Sc/APC

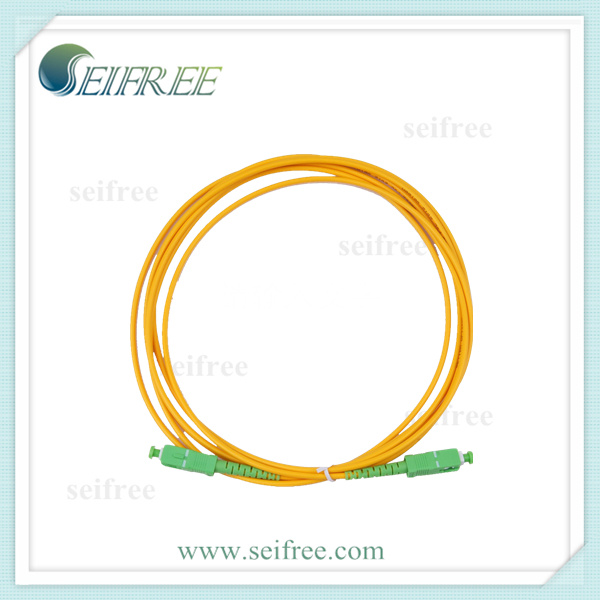

Name: Fiber Optic Patch Cord Patchcord Sc/APC
Brand: all-electronics-online.com
SKU: 821667725
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	US $ 0.5-1.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFC-1-SA-SA-D-2-00-C-10
Fiber Type:	Sm
Connector Type:	Sc/APC to Sc/APC
Cable:	1 Core, Simplex
Pigtail Diameter:	2.0mm Loose Tube
Length:	1m
Product Name:	Patch Cord
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001

Product Description

Description
1. Connector type: FC, SC, LC, ST, MU, E2000, MPO
2. Ferrule End-face: PC, UPC, APC
3. Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: simplex/duplex (sx/dx)
5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, Armoured

Ordering Information

Cable	First End	Second End	Fiber Type	Pigtail Dia.(mm)	Fan Out Length	Jacket Type	Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2mm	10=100cm	C=PVC	10=100cm
4=4Fiber			D=G652D	3=Φ3mm		H=LSZH
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A		20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			W=Bow-type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

Our Service
1. Complete solution, meet individual requirements
2. We thoughtfully consider from the initial design to material and supplier selection, from the main parts to one wire or even a screw. Combination local geographical, climatic characteristics, as well as factors such as regional culture in of product design, and fully customized to meet the requirements.
3. Resource integration, provide you with the most satisfied products.
4. Professional technique, quality assurance--Control the quality from the source, professional product engineers and sales engineers make checks at all levels.
5. ERP management--All management runs through pre-sale, sales, after- sale strictly in accordance with the ERP.

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
