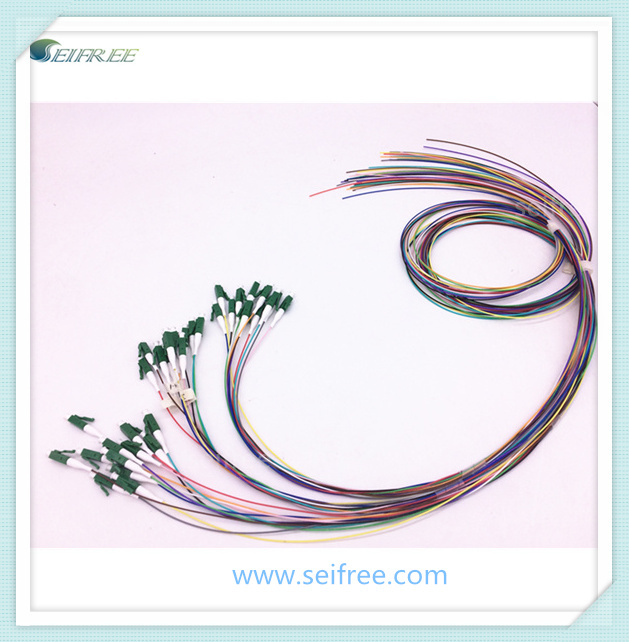

Sm Simplex 0.9mm Color Optical Jumper LC/APC

Name: Sm Simplex 0.9mm Color Optical Jumper LC/APC
Brand: all-electronics-online.com
SKU: 829833305
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 0.45/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFC-1-LA-00-A-09-00-C-10
Mode:	Single Mode
Connector Type:	Su
Cable:	1 Fiber
Fiber Type:	G657A
Jacket Type:	PVC
Application:	Communication
Type:	Single-mode Fiber
Certification:	RoHS
Connection Structure:	LC/APC-00

Product Description

Single Modle SC/UPC Connectors Fiber Optic Patch Cord (Optical Network Wiring)

Description
Optical Jumper Wires are important parts of optic network. They have same or different type connector which is installed on the end of fiber optic cable.
Applications Features
Optical Network Wiring Low Excess Loss
Test Equipment High Return Loss

Cable	First End	Second End	Fiber Type	Pigtail Dim.(mm)	Fan Out Length	Jacket Type	Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2 mm	10=100cm	C=PVC	10=100cm
4=4Fiber			D=G652D	3=Φ3mm		H=LSZH
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A		20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			B=Bow -type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125

Parameter	Unit	Value
Connector	/	FC ST ^ SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

We can provide below for your market:
1.OEM available
2.One year after service
3.Supporting technology
4.Good lead time
5.Stable quality
6.Competitive price

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
