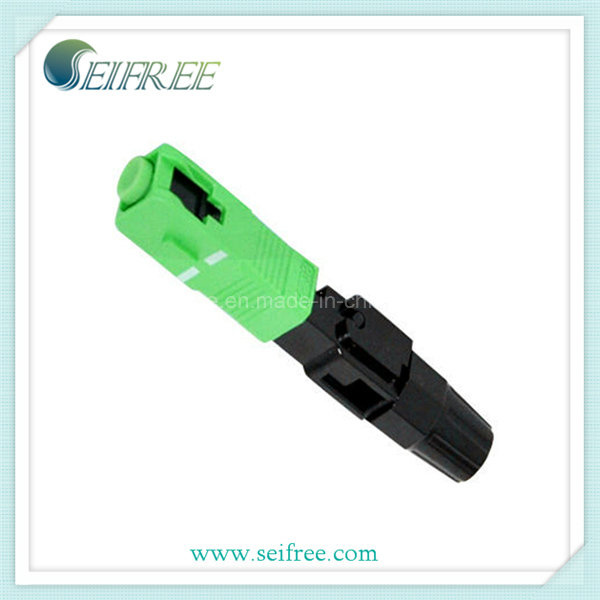

Quick Field Assembly Sc FTTH Fast Connector

Name: Quick Field Assembly Sc FTTH Fast Connector
Brand: all-electronics-online.com
SKU: 828819385
Availability: InStock
Rating: 5 (43 reviews)

Price:	US $ 0.5-5/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFC-1-SC-SC-A-23-00-LSZH-00
Fiber Type:	G657A
Jacket Type:	PVC
Insertion Loss:	<0.3dB
Return Loss:	>55dB
Cable Available:	3mm Fiber Optic Patch Cord
Application 1:	Drop Cable
Application 2:	FTTH
Application 3:	Fiber Optic
Application 4:	Fan-out Patch Cord
Application 5:	Pigtail
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC

Product Description

Description
1. Fast connector is designed to make connection simple without fusion splicing machine.
2. Fast connector is quick assembly which requires only normal fiber preparation tools: cable stripping
tool and fiber cleaver.
3. Fast connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and preset optical
fiber at V-grooves, and ferrule pre-grinding.
4. It could be applied to drop cable and indoor cable.
5. It is also known as Field Installable Connectors, Fast Installable Optical Connector, Pre-polished
Optical Connector, Quick Assembly Connector.

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G652D/G657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB) TIA/EIA-455-107	≤ 0.35dB (PC/UPC/APC)	≤ 0.35dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	10unit/box

Features
1. Quick and easy to install without special tools
2. Power-save, as it does not need hot melting
3. Without any gluing and polishing process
4. Reusable and repeat operation times are up to 500
5. Integrated protection of the casing to prevent the connector form impact
6. Can be installed in two minutes
7. The total length of plug ≤45mm
