Fiber Optic Patchcord (Single Mode) LC/LC Connector-G

Name: Fiber Optic Patchcord (Single Mode) LC/LC Connector-G
Brand: all-electronics-online.com
SKU: 754345235
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 0.24/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-LC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	LC/FC/Sc/St Patch Cord
Installation:	Duct & Direct Buried
Brand Of Fiber:	Corning ,Yofc,Draka, Fujikura
Outer Sheath:	PVC /LSZH
Sheath Color:	Black
Armour Material:	Kevlar Yarn
Color Of Fiber:	Red,Black,Yellow,Violet,Pink,Aqua
Od:	0.6/0.9/2.0/3.0mm
Application:	Optic Cable
Certification:	Optic Cable
Type:	Patch Cord
Connection Structure:	Optic Patch Cord

Product Description

Fiber Optic Patchcord (Single Mode) LC/LC Connector

Fiber Optic Patchcord(Single Mode) LC-LC

Features:
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE

Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment

Description:
Connector:SC,FC,ST,LC,MU,MTRJ,E2000, etc
Polishing type:PC,UPC,APC
Fiber core:Singlemode(G652D,G657A)
Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etc
Cable OD:0.9mm,2.0mm,3.0mm,etc
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc

Specifications:

ITEM	SM/MM Patchcord
Polishing Type	UPC	APC
I.L	<=0.3dB,MTRJ<=0.5dB	<=0.3dB
R.L	>=55dB,MTRJ>=30dB	>=65dB
Operating temperature	-20ºC~75ºC
Storage Temperature	-40ºC~75ºC
100 mating cycles loss	I.L changed≤0.1dB
Durability	>1000 cycles

ITEM	PC Polishing		APC Polishing
	SC Type	LC Type
R.O.C	10~25mm	7~25mm	5~12mm
Apex Offset	<50um		<50um
Fiber Height	-125nm-50nm		-100nm-100nm
Polishing Angle			8°± 0.3°

Ordering information:

Type	Fiber Core	Cable Type	Cable OD	Cable Material	Cable Color	Connector (A End -B End)	Patchcord Length
PT=Patchcord PY=Pigtail	S1=G652D S2= G657A1 M1=50/125 M2=62.5/125 M3=OM3 M4=OM4 XX=other	01=simplex 02=Duplex 03=Armoured 04=Distribution 05=Ribbon 06=breakout XX=other	01=OD 0.9mm 02=OD 2.0mm 03=OD 3.0mm XX=other	1=PVC(R) 2=PVC(P) 2=LSZH	01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12Color XX=other	01=SC 02=FC 03=ST 04=LC 05= E2000 06=SC/APC (Cone Type) 07= SC/APC (Step Type) 08= FC/APC (Cone Type ) 09= FC/APC (Step Type) 10=LC/APC 11=E2000/APC 12=MTRJ 13=MPO/PC 14=MPO/APC 15=D4 16=DIN 17=LX5 18=FDDI 00=None XX=other	005=0.5m 010=1.0m 020=2m 025=2.5m XXX=other

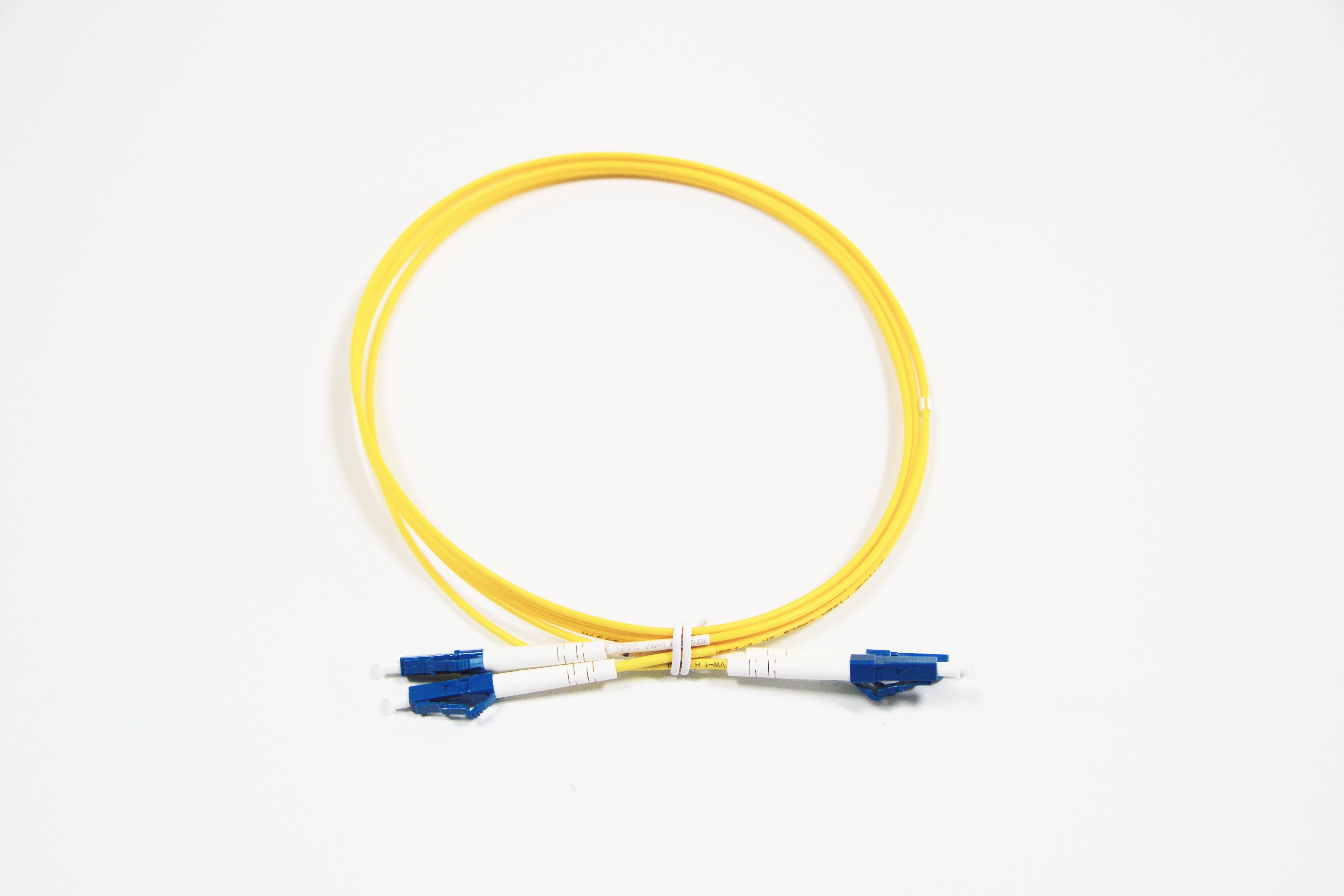

Fiber Optic Patchcord (Single Mode) LC-LC

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
