Fiber Optical Cable GYTC8S with Self-Supporting Structure for Aerial and Underground Use

Name: Fiber Optical Cable GYTC8S with Self-Supporting Structure for Aerial and Underground Use
Brand: all-electronics-online.com
SKU: 753268055
Availability: InStock
Rating: 4.9 (147 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTC8S fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China (Mainland)
Brand Name:	Tw-Scie or OEM
Model Number:	Gytc8s
Installation Style:	Aerial
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT with Jerry
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE / Lszh
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Application:	Telecommunication
Certification:	ISO9001
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable

Product Description

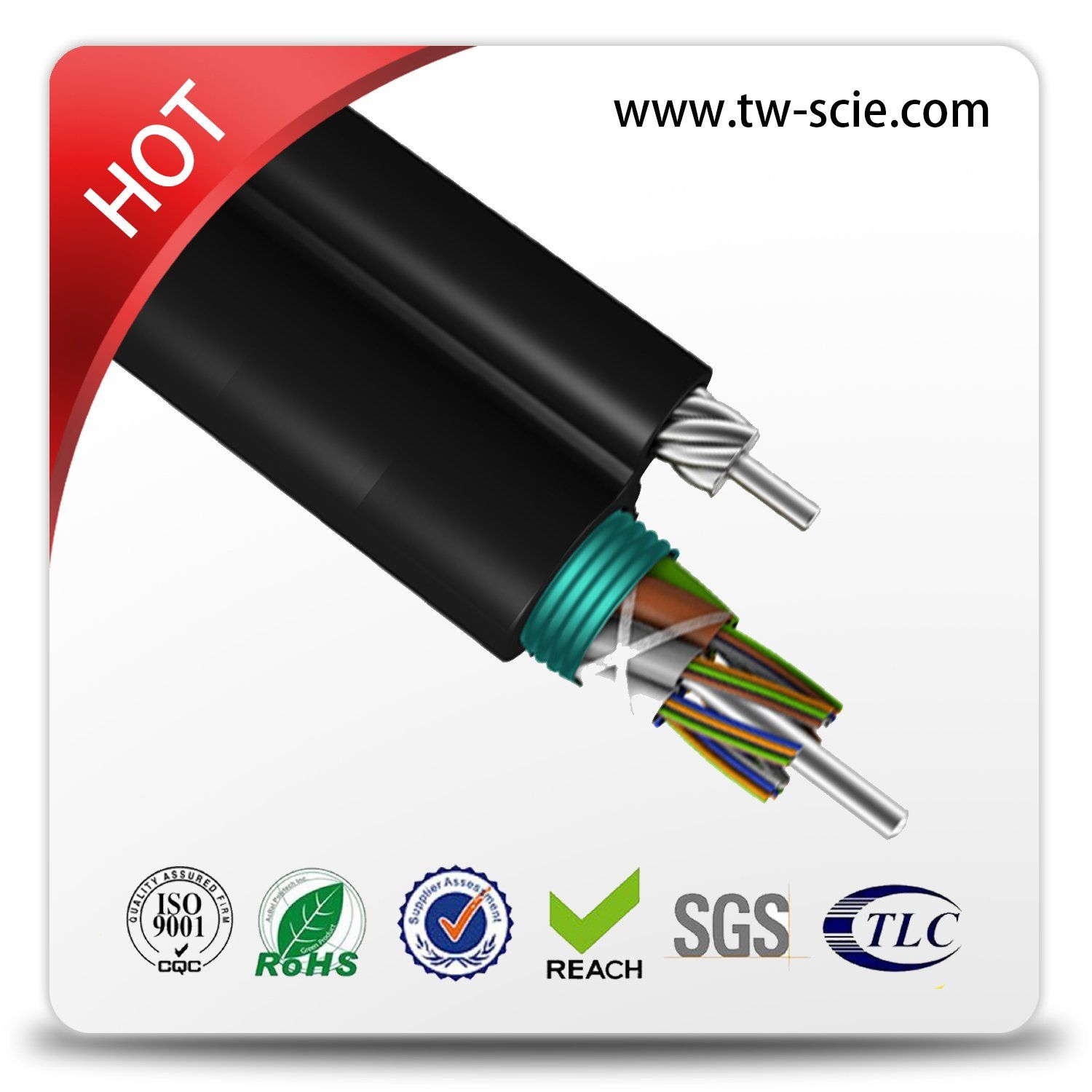

Fiber Optical Cable Gytc8s with Self-Supporting Structure for Aerial and Underground Use

Specifications:

Temperature range		ºC	-20ºC~+70ºC
Nominal weight		g/m	195
Out diameter		mm	10.5±0.3*17.8±0.3
Min. Bending Radius(mm)	Dynamic	mm	20H
Min. Bending Radius(mm)	Static	mm	10H
Max. Tension	Short term	N	4800
Max. Tension	Long term	N	2500
Max. Crushing resistance(N/100m)		N/100m	1000

Description

The fibers 250um are positioned in a loose tube made of a high modulus plastic,the tubes are filled with a water resistant filling compound. A steel wire locates in the center of core as a metallic stranded around the strength member into polyethylene laminate. APL moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part, finally it is completed with a polyethylene PE sheath to be figure 8 structure.

Properties:

Messenger wire as self-supporting part, high tensile strength, easy for erection

Applications

Outdoor communication, Long distance and local area network(LAN) communication

Laying method

Self-support aerial installation

Our advantages
1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

Tag: loose tube fiber optic cable, distribution fiber optic cable

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
