Product Description

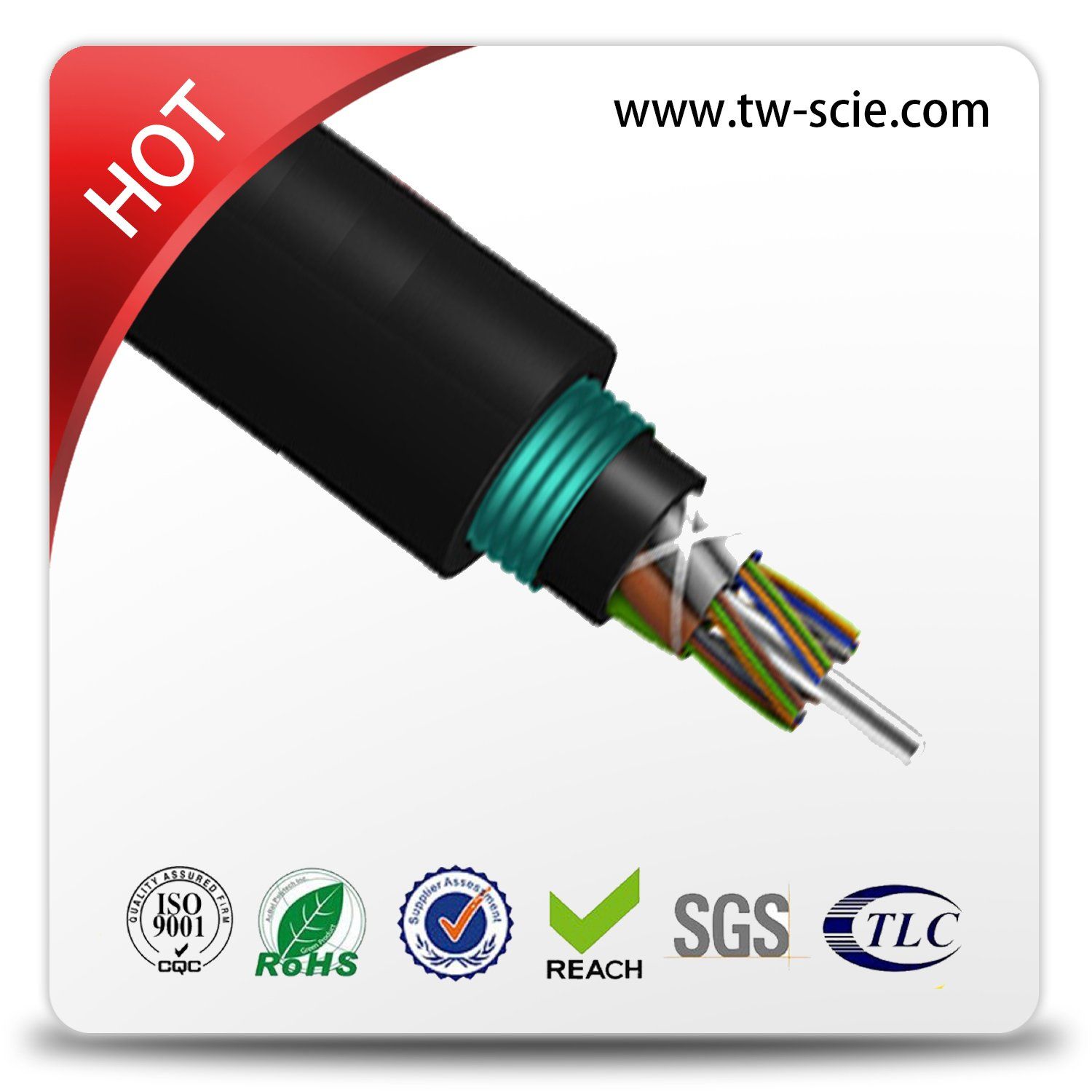

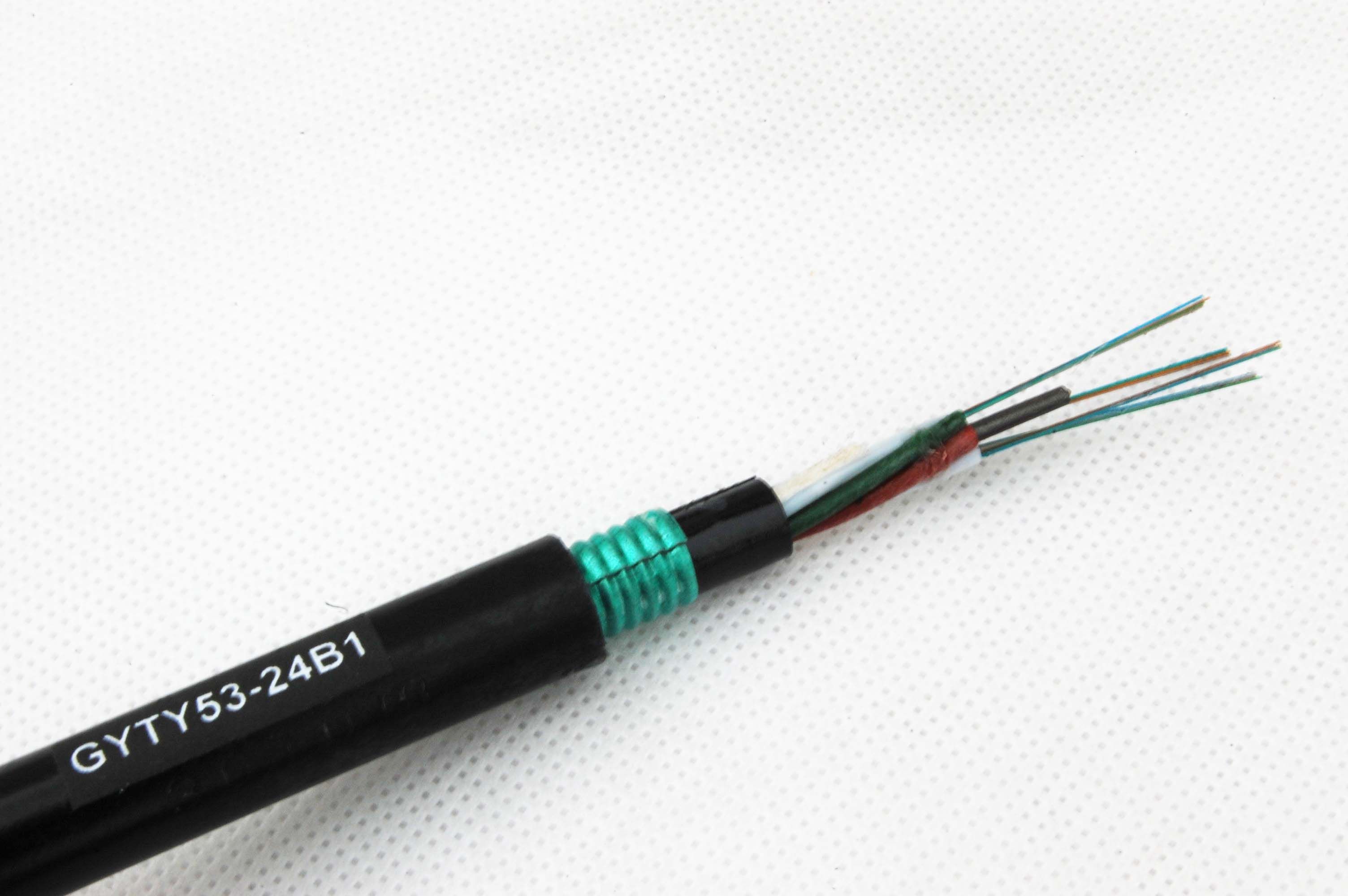

GYTY53 Armored fiber optical cable Double Outdoor fiber Cable

Product Description:

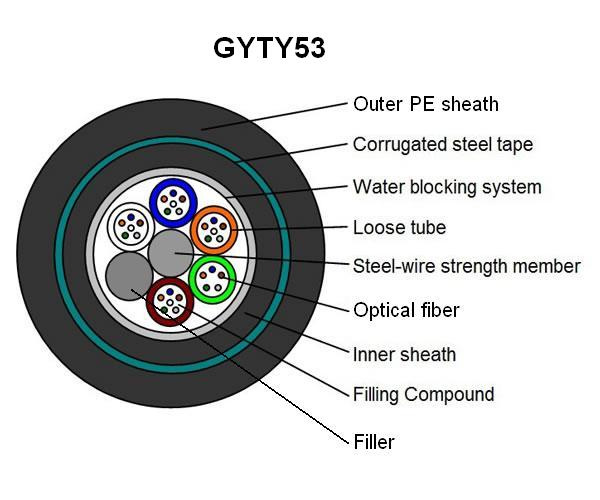

The fibers, either of single-mode or multi-mode type, are placed in a aluminum tube. The tubes are filled with a water-resistant filling compound. A steel wire sometimes sheathed with polyethylene(PE) for cable with hight fiber count,locates in the center of core as a metallic strength member. Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.

Key Features:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication property.

2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3. Simple structure, light weight and high practicabiliy.

4. Novel flute design, easily strip and splice, simplify the installation and maintance.

5. Low smoke, zero halogen and flame retardant sheath.

6. Loose tube filling compound, 100% cable core filling

Technical Information:

1. Fiber Type:  ngle-mode fiber,multi mode cable, or other types of fiber;

2. Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;

3. Cable Dimension: The nominal cable dimension, or other contracted dimension;

4. Jacket Material:  Enviromental flame-retardant polyvinyl chloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromentalthermoplatic polyurethane (TPU), or other contracted material;

Applications:

1. Pigtails and patch cords;

2. Optical connections in optical communication equipment rooms and optical distribution frames;

3. Optical connections in optical apparatus and equipments.

4. Trunk power transmission system

Product Parameters:
