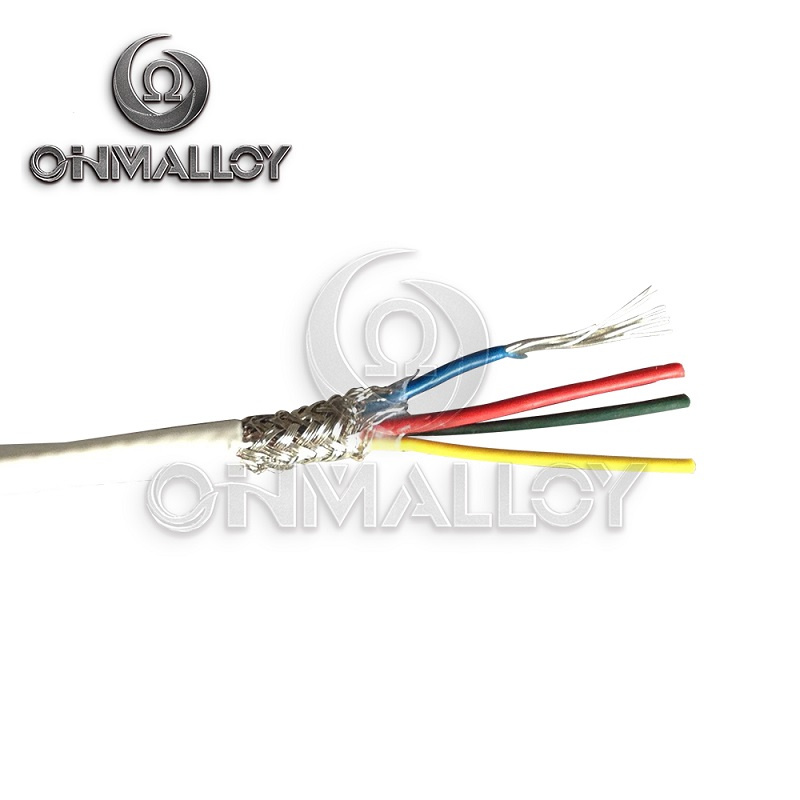

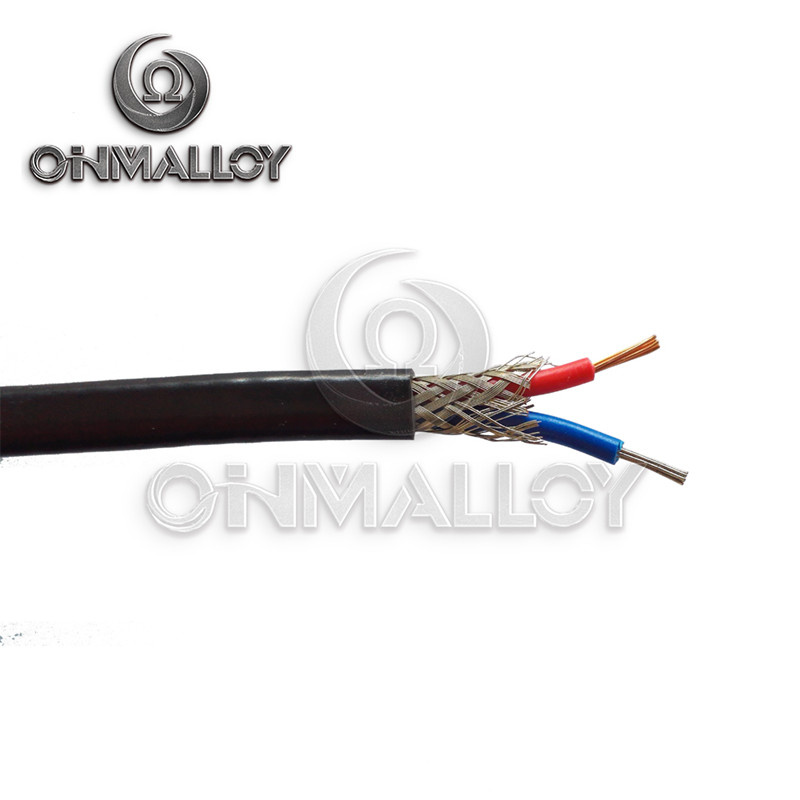

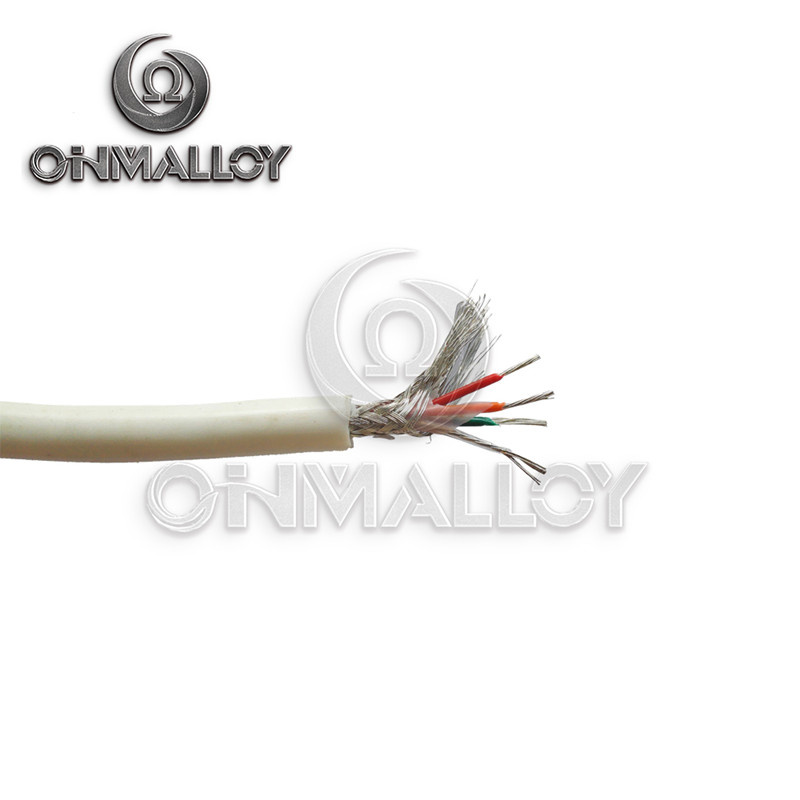

Fiberglass/Stainless Steel Braid K Type High Temperature Thermocouple Wire

Fiberglass/Stainless Steel Braid K Type High Temperature Thermocouple Wire
Price: US $ 0.59-2.5/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P
Prod Model: TK -S-1114
Colour: Conforms to ANSI, IEC, JIS
Type: Insulated
Conductor Type: Stranded
Insulation Material: Fiberglass
Certification: ANSI
Application: Thermocouple Wires
Conductor Material: Chromel Alumel
Sheath Material: Silicone Rubber Fiberglass
Range Of Application: Machinery,Thermocouple,Electricity
Brand: Ohmalloy

Product Description

Fiberglass/Stainless Steel Braid K Type High Temperature Thermocouple Wire


Specification:

Conductors: Solid or stranded thermocouple wire per
Insulation: Braided fiberglass,PVC, Teflon, Silicon
Construction: Parallel conductors
Jacket:
PVC/FEP/PFA/ Fiberglass/Vitreous silica
Limits of Error: Conforms to ASTM E230, IEC 584 and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS

Type: K, E, J, T, N, etc.

Style: Solid or stranded, parallel or twisted



Conductor material:

VarietyType
NiCr-NiSiK
NiCr-CuNiE
Fe-CuNiJ
Cu-CuNiT
NiCrSi-NiSiN
NiCr-AuFe0.07NiCr-AuFe0.07



Insulating and sheath material:

insulationPTFEPFATEFFEPPVCFGsiliconekaptonQuartz fiber
Max temp(°c)260260200200108400200400800



Normal available condutor size:

Solid type0.2mm0.3mm0.5mm0.8mm1.0mm1.13mm1.29mm1.37mm
Stranded type0.2mm*70.3mm*70.43mm*70.52mm*70.67mm*7

Note: We also can make the speical size as per client's requirement. SWG/AWG also is available

Package&Payment:







Ohmalloy Material Co., Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.

Ohmalloy Material Co., Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.

Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level, make a more green earth in the future.

Our company supplies different kinds of products. With high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
