Fig-8 Self-Supporting Overhead Outdoor Fiber Optic Cable (GYTC8Y)

Name: Fig-8 Self-Supporting Overhead Outdoor Fiber Optic Cable (GYTC8Y)
Brand: all-electronics-online.com
SKU: 747158305
Availability: InStock
Rating: 4.7 (44 reviews)

Price:	US $ 0.15-0.8/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTC8Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	Sm G652D
Fiber Material:	Doped Silica
Fiber Count:	2-288
Strength Member:	Steel Wire/FRP
Material Of Jacket:	Lszh/PE Sheath/Flame Retardant Sheath
Steel Messenger:	0.9mm7;1.0mm7;1.2mm7;1.5mm7
Armored:	Non-Armored
Tube:	Loose Tube Stranded/Sz Stranded
Applications:	Hanging on Poles.
Max Tension:	12kn
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	LSZH/PE Sheath/Flame Retardant Sheath/Anti-Rodent

Product Description

Description

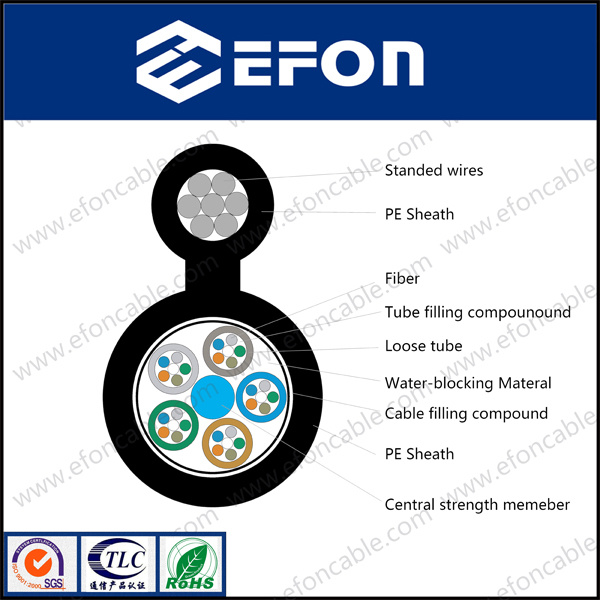

The loose tube are made of high modulus plastic (PBT), which are filled with water resistant gel. Loose
Tube are stranded around the non-metallic strengthen member (FRP). Outer sheath is made of UV
Resistance PE jacket. Figure 8 self-supporting structure provide high tensile strength and enables easy and Cost saving aerial installations. The Steel strand wire self-supporting member gives high tensile resistant.

Features:

1. Up to 288fibers.
2. Water blocking, UV resistance, High and low temperature resistance.
3. Adopt strict process and raw materials control guarantee the lifespan more than 30 years.

Application:

For hanging on poles.

Technical Parameter

Fiber Count		8-30	32-60	62-72	74-96	98-120	122-144
Diameter of Self support member (Steel strand wire) mm		7x0.9, 7x1.0, 7x1.2, 7x1.4 , 7x1.6
Diameter of Loose tube(mm)		1.8	2.1	2.1	2.1	2.1	2.1
Diameter of Cable(mm)		8.1	8.7	9.3	10.6	11.9	13.4
Gross weight(Kg/Km)		_	_	_	_	_	_
Min. bending radius		Static 10xD Dynamic 20xD
Max. tensile force, N Short term		3000N , 4000N, 6000N, 8000N, 12000N
Max. tensile force, N Long term		1000N, 1500N, 2000N, 2500N, 4000N
Max Crush Resistance(N/100mm)		Short term/ Long term 1000N/300N
Allowable Temperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C
