GYTC8S Self-support Optical Fiber Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GYTC8S |
| Fiber Count: |
2-288 Core Self-Support Optical Fiber Cable |
| Brand Name Of Fiber: |
Corning, Yofc, Draka.. |
| Loose Tube Material& Filling Material: |
PBT&Jerry |
| Structure Section: |
"8" Figure Cross Section Self Support Fiber Cable |
| Color Of Loose Tube: |
Blue, Orange, Green, Brown, Red etc |
| Central Strength Member: |
Steel Wire |
| Strength Material: |
Corrugated Steel Tape |
| Messenger Wire: |
7*1.0 Steel Wires |
| Installation Style: |
Self-Support Optical Fiber Cable |
| Application: |
Self Support Fiber Cable |
| Certification: |
Reach, Tlc, etc |
| Sheath Material: |
MDPE / HDPE / LSZH PE |
| Core: |
2-288 Core Self-Support Optical Fiber Cable |
| Allowed Lateral Pressure: |
Long Term:1000n; Short Term:2000n |
| Type: |
Self-Support Optical Fiber Cable |
| Brand: |
Tw-Scie or OEM |
| Connection Structure: |
Self-Support Optical Fiber Cable |
Product Description
Figure 8 Aerial Self-support Optical Fiber Cable (GYTC8S)

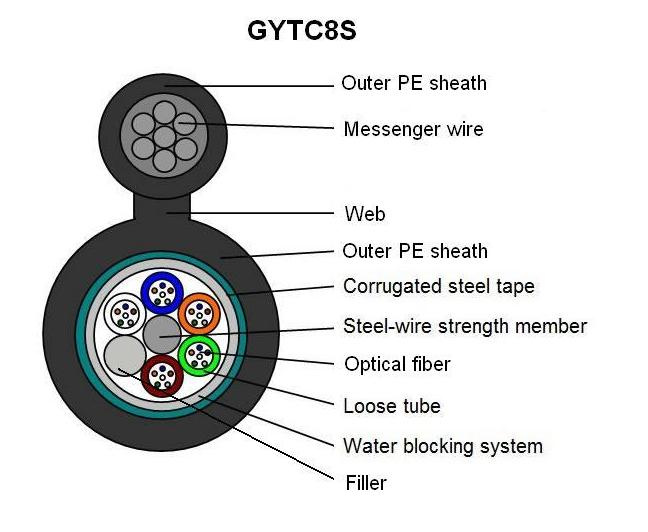

1. Cable structure Figure 8
2. Specifications2.1 General Specifications| Cable Type | GYTC8S |
| Fiber Type | G652D |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40ºC to 70ºC |
2.2 Fiber Specifications| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber |
| Optical Characteristics | | | |
| Mode field diameter (MFD) | 1310nm
1550nm | 9.2±0.4
10.4±0.8 | µm
µm |
| Cut-off wavelength (λcc) | | ≤1260 | nm |
| Attenuation coefficient | 1310nm
1383nm
1550nm | <0.35
<0.35
<0.22 | dB/km
dB/km
dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | | ≤0.05 | dB |
| Dispersion coefficient | 1288~1339nm
1271~1360nm
1550nm | ≤3.5
≤5.3
≤18 | Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km) |
| Zero dispersion wavelength | | 1300~1324 | nm |
| Max zero dispersion slope | | ≤0.093 | Ps/(nm2.km) |
| Group index of refraction (typical value) | 1310nm
1550nm | 1.466
1.467 | |
| Geometric characteristic | | | |
| Cladding diameter | | 125.0±1.0 | µm |
| Core/cladding concentricity error | | ≤0.8 | µm |
| Cladding non-circularity | | ≤1.0 | % |
| Coating diameter | | 245.0±10 | µm |
| Cladding/coating concentricity error | | ≤12.0 | µm |
| Coating non-circularity | | ≤8 | % |
| Diameter of colored coating | | 250.0±15 | µm |
| Mechanical characteristic | | | |
| Curling (radius) | | ≥4 | m |
| Proof stress | | >0.69 | Gpa |
| Coating strip force | Average value
Peak value | 1.0-5.0
1.3-8.9 | N
N |
| Dynamic stress corrosion susceptibility parameter (nd value) | | ≥20 | |
2.3 Standard Color Identification of Fiber Comply With ANSI/TIA/EIA-598| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
2.3.1 Cable Core: The loose tubes are stranded around the central strength member utilizing SZ. SZ stranding wraps the tubes in one direction for several turns, then in the other direction. 2.3.2 Central Strength MemberThe central strength member is made of a steel wire. It provides both tensile and anti-buckling strength to the cable. 2.3.3 Loose TubeOptical fibers are housed in jelly filled tube. The tube is manufactured with industry standard PBT. It is colored for easy identification according to the scheme shown above. 2.3.4 Water Blocking MaterialFilling compound, the water blocking material between the loose tube and the central strength and steel tape protect cable from water intrusion.2.3.5 ArmourCorrugated steel tape as armour which is providing maximum anti-crush property, anti-erode and bullet resistant performance.2.3.6 Outer JacketA black Medium density polyethylene jacket is extruded over the cable core and corrugated steel tape armor as the sheath.2.3.7 Cable Sheath Marking Each cable have the following information clearly marked on the outer jacket of cables: a. Name of manufacturer. b. Year of manufacturer c. Type of cable and fiber d. Length mark (printing on each meter normally) e. Or as customer's requirements.2.4 Cable Design| Item | Description |
| Model No | GYTC8S |
| 1. Fiber count (CORE) | 4 | 8,16 | 24 | 48 | 96 |
| 2. Cable Diameter(mm) | 9x16±0.2 | 9.8*16.8±0.2 | 12*19±0.2 |
| 3. Cable Weight | 146KG | 154KG | 200KG |
| 4. Central Strength member | |
| -Material | Steel wire |
| -Diameter | 1.4mm | 2.0mm |
| 5. Loose Tube | |
| -Material | PBT |
| -Outer diameter | 1.6 mm~2.0mm |
| -No. of loose tube | 1 | 2 | 4 | 4 | 8 |
| -Thickness | 0.3mm |
| -Type of filling compound | Jelly |
| 6. Filler | |
| -No.of filler | 4 | 3 | 1 | 1 | 0 |
| -Material | PP |
| -Outer diameter | 1.6 mm~2.0mm |
| 7.Armor | |
| -Material | Corrugated steel tape |
| 8. Messenger wire | |
| -Material | Steel wire |
| -Structure | 1.0/7-3.0mm |
| 9. Tube Assembly | |
| -Tube Layout | 1+5 | 1+8 |
| -Stranding type | SZ |
| 10. Water-blocking system | |
| -Material | Filling Compound |
| 11. Core wrap | |
| -Material | Polyester tape |
| 12.Outer Sheath | |
| -Material | HDPE |
| -Thickness | 1.6mm±0.2mm |
| 13. Sheath marking | |
| -Type of marking | Laser printing |
