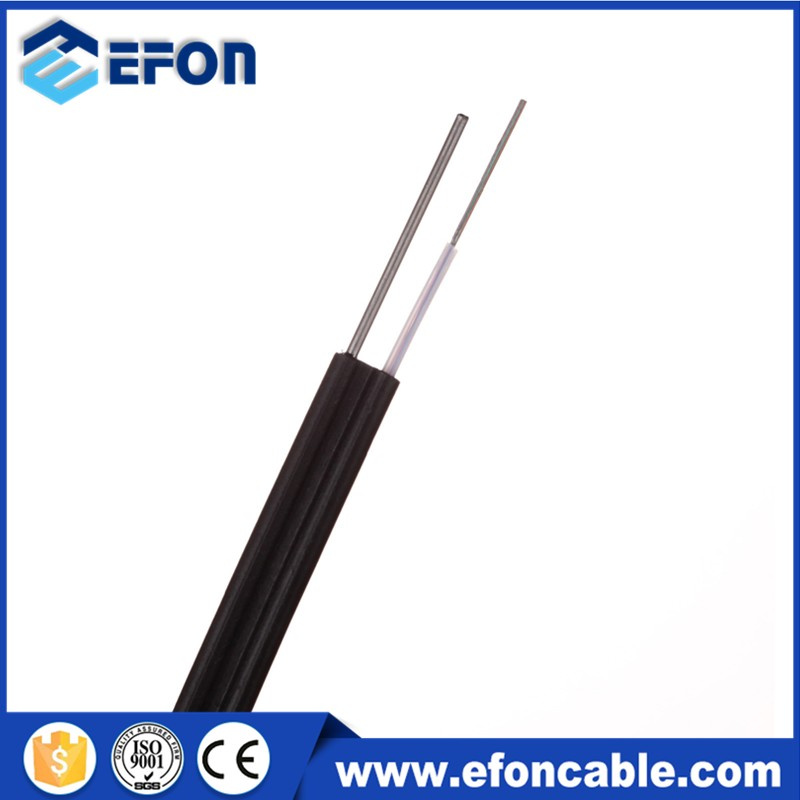

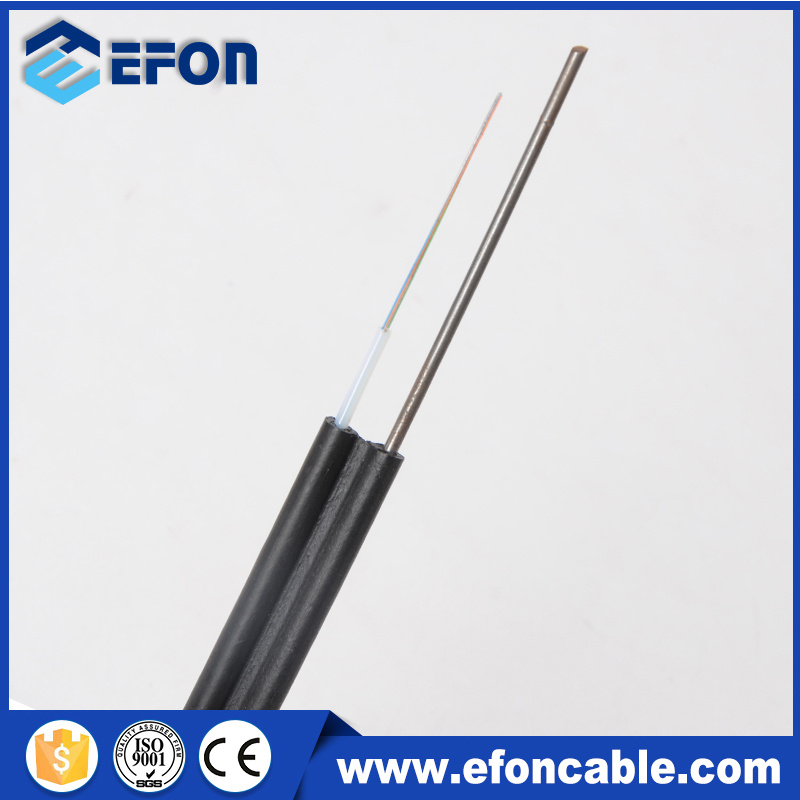

Figure 8 Non-Armored 6/12/24 Cores Singlemode Optical Fiber Cable (GYXTC8Y)

Name: Figure 8 Non-Armored 6/12/24 Cores Singlemode Optical Fiber Cable (GYXTC8Y)
Brand: all-electronics-online.com
SKU: 754625095
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 0.21-0.8/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTC8Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Count:	2-24cores
Tube:	Central Loose Tube
Armored:	No Armored
Material Of Jacket:	PE/LSZH /Flame Retardant PE
Diameter Of Self Support Member:	2.0mm Steel Wire
Bend Radius:	Static 10Cable-D: Dynamic 20Cable-D
Max Tension:	1kn
Applications:	Aerial, Conduit, Underground
Certificate:	ISO9001/Ce/RoHS
Application:	Communication
Certification:	CCC
Type:	Fiber Optical Cable
Connection Structure:	Other
Core:	2-24
Brand:	Efon
Sheath Material:	LSZH/PE Sheath/Flame Retardant Sheath/Anti-Rodent

Product Description

Figure 8 Non-Armored 6/12/24 Cores Singlemode Optical Fiber Cable (GYXTC8Y)
Description

GYXTC8Y Micro Uni-Loose Tube None Armor Cable is designed especially for aerial installations.

With fiber counts up to 24 fibers.

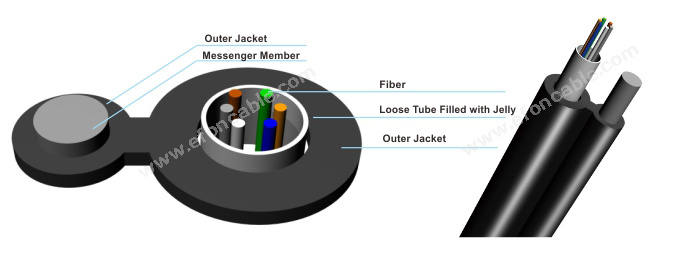

Product Construction:

Fiber:

2-24 fibers

Uni-loose tube gel-filled

Messenger member:

2.1mm galvanized steel

Outer Jacket:

Black UV and waterproof polyethylene (PE).

Features: Uni-Loose tube gel-filled construction for superior fiber protection.

Self-supporting Figure 8 design.

Applications:

Interbuilding voice or data communication.

Installed aerially.

FTTx

Optical Characteristics:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance(N/100mm)
			Short Term	Long Term	Short Term	Long Term
2~12	5.4*10.5	44	1500	500	200	100
>12	Available upon the customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance	IEC 60794-1-2-E
Max. Operation Tension	IEC 60794-1-2-E1
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Repeated Bending	IEC 60794-1-2-E6
Torsion Test	IEC 60794-1-2-E7
Cable bend	IEC 60794-1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B
Filing Compound Flow	IEC 60794-1-E14

main products

about us:

more information:

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

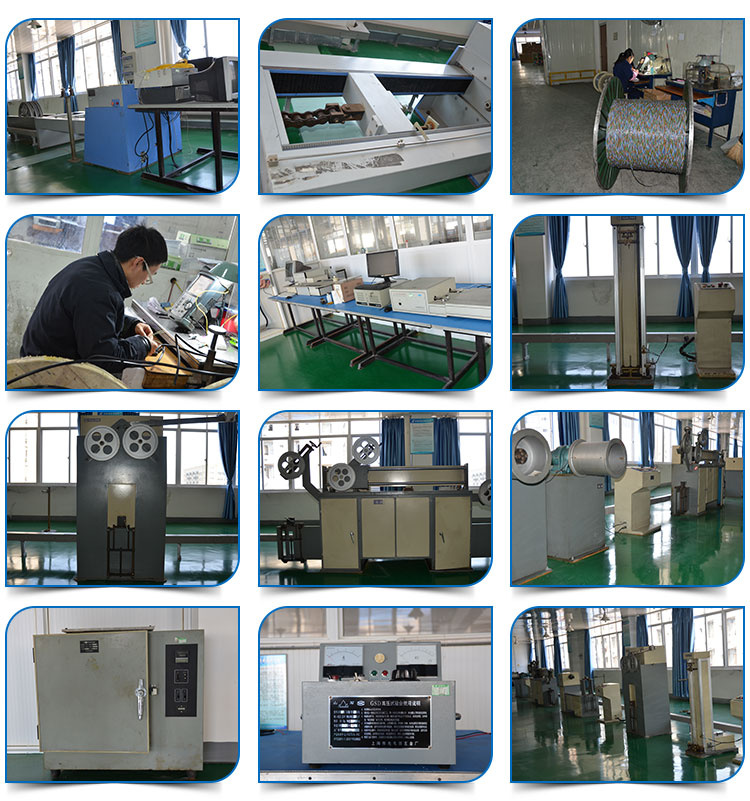

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.
