FTTH Kfrp Messenger Fiber 48 Single Cable

Prod Model:	GJFXH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, 50/125, 62.5/125, G657A, G657A2, Om3-150, O
Fiber Material:	Doped Silica
Fiber Count:	1-4cores
Strength Member:	Two Parallel Steels7
Material Of Jacket:	Lszh
Self-Supporting Strength Member:	Steel Wire
Lszh:	Low Smoke, Zero Halogen, Flame Retardan
Applications:	Outdoor
Certificate:	ISO9001 Tlc RoHS
Operating Temperature:	-40 ~ +60 C
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Core:	1-4
Brand:	Efon
Sheath Material:	Lszh

Product Description

FTTH g657a with self-supporting 2 core FTTH cable with lowest price


Description

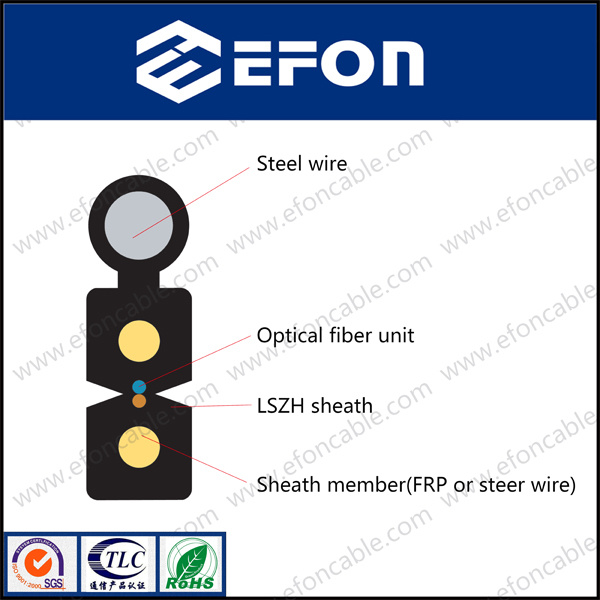

The optical fiber unit is positioned in the centre ,two parallel steel wires are placed at the two sides ,Another steel wire as the self-supporting strength member is also applied ,then the cable is completed with a black or color LSZH Sheath .


Feature:


Two Steel Wires as the strength member
A steel wire is applied as the additional strength member
Suitable for dropping in residential buildings, rat proof function, reliable and stable quality
Adopt fiber with small bending radius (G.657), offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;
Safe and reliable for installation;
Easy cable stripping without need of tools, easy cable fixation and low cost of installation;
Suitable for termination at the field or factory pre-connectorized
low smoke, zero halogen and flame retardant sheath
Fiber Type: G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,OM3-150 ,OM3-300 ,OM4
Jacket material: PVC, LSZH

Application

Suitable for aerial dropping in separate residential buildings, stable and reliable performance, fitting for cable installation with long span

2 core ftth cable



Products Standard
Mechanical Performance :
Max Tension Performance  : IEC 60794-1-2-E
Max. Operation Tension     : IEC 60794-1-2-E1
Crush Test                        : IEC 6079 -1-2-E3
Impact Test                      : IEC 60794-1-2-E4
Repeated Bending              : IEC 60794-1-2-E6
Torsion Test                     : IEC 60794-1-2-E7
Cable bend                        : IEC 60794-1-2-E11A
Attenuation Coefficient       : ITU-T G.652
Structural Test                  : IEC-60793-1-20
Environmental Performance
Temperature Cycling         : IEC 60794-1-2-F1
Water Penetration             : IEC 60794-1-2-F5B
Filing Compound Flow      : IEC 60794-1-E14



Structure and Technical Specifications

Cable Code	Cable Count	Cable Size (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Crush resistance (mm)		Range of temperature
				Long Turn	Short Turn	Long Turn	Short Turn	Dynamic	Static
GJYXCH-01	1	2.0*5.0	20	300	600	1100	2200	30D	15D	-20~+60
GJYXCH-02	2	2.0*5.0	21	300	600	1100	2200	30D	15D
GJYXCH-04	4	2.0*5.0	23	300	600	1100	2200	30D	15D
