| Prod Model: |
GYTC8S Self-Support Anti-Pull Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Gytc8s Self-Support Anti-Pull Fiber Optic Cable |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material& Filling Material: |
PBT&Jerry |
| Structure Section: |
"8" Figure Cross Section |
| Color Of Loose Tube: |
Blue,Orange,Green, Brown,Red etc |
| Central Strength Member: |
Reinforced Messenger Wire |
| Strength Material: |
Corrugated Steel Tape |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Self-Support Aerial |
| Application: |
Self-Support Anti-Pull Fiber Optic Cable |
| Certification: |
Reach,Tlc,etc |
| Type: |
Single-Mode or Multimode Fiber |
| Connection Structure: |
Self-Support Anti-Pull Fiber Optic Cable |
| Allowed Lateral Pressure: |
Long Term:1000n; Short Term:2000n |
| Core: |
2-288 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
Product Description
GYTC8S Figure 8 Self-Support Anti-Pull 2-288 Core Fiber Optic Cable Details:
Product Description
This GYTC8S Figure 8 Self-Support Anti-Pull 2-288 Core Fiber Optic Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTC8S Figure 8 Self-Support Anti-Pull 2-288 Core Fiber Optic Cable are designed for outdoor aerial easy and economical self-support installation.

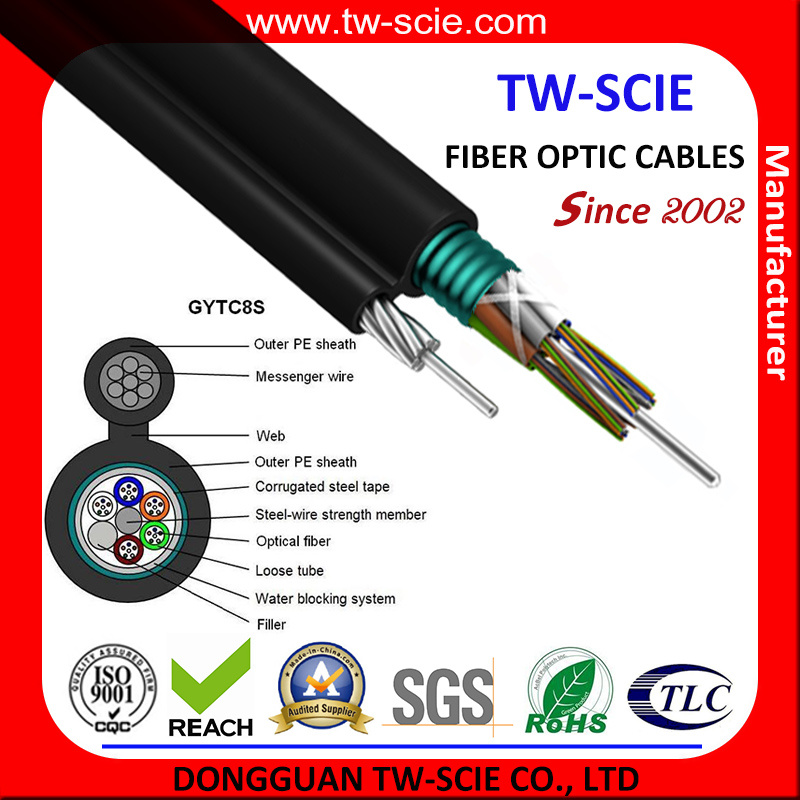

GYTC8S Figure 8 Self-Support Anti-Pull 2-288 Core Fiber Optic Cable Structure &Properties:
1. Up to 288 fibers with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
Applicable Fields:
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
GYTC8S Figure 8 Self-Support Anti-Pull 2-288 Core Fiber Optic Cable Technical Date:
Technical data: |
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min. bend radius | Max. Running tension (N) | Safe running tension (N) | Min. Breaking tension (N) | Max. crush loading (N/100mm) |
| Static | Dynamic | Short term | Long term |
| 2-30 | 1× 7-4.2 | 9.8 | 6.4 | 18.8 | 210 | 10times cable diameter | 20times cable diameter | 7000 | 3500 | 15550 | 2000 | 1000 |
| 32-36 | 10.3 | 19.3 | 230 |
| 38-60 | 10.7 | 19.7 | 230 |
| 62-72 | 11.3 | 20.3 | 255 |
| 74-96 | 12.9 | 21.9 | 290
|
