| Prod Model: |
Figure 8 fiber optic cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Style: |
Aerial |
| Messenger Material: |
Steel Wires |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material: |
PBT |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Outer Sheath Material: |
MDPE / HDPE / Lszh |
| Outer Sheath Color: |
Black |
| Armour Material: |
Corrugated Steel Tape |
| Central Stranding Member: |
Steel Wire or FRP |
| Color Of Fiber /Loose Tube: |
Blue,Orange,Green,Brown,Grey,White,Red,Black,Yello |
| Application: |
Glass Fiber |
| Certification: |
Reach |
| Type: |
Single More or Multimode |
| Connection Structure: |
Fiber Optic Cable |
| Sheath Material: |
HDPE,MDPE,LSZH |
Product Description
Figure 8 Self-Supporting Aerial Fiber Optic Communication Cable GYTC8S
Optical Characteristics:
| | G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20ºC) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Technical data: |
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min. bend radius | Max. Running tension (N) | Safe running tension (N) | Min. Breaking tension (N) | Max. crush loading (N/100mm) |
| Static | Dynamic | Short term | Long term |
| 2-30 | 1× 7-4.2 | 9.8 | 6.4 | 18.8 | 210 | 10times cable diameter | 20times cable diameter | 7000 | 3500 | 15550 | 2000 | 1000 |
| 32-36 | 10.3 | 19.3 | 230 |
| 38-60 | 10.7 | 19.7 | 230 |
| 62-72 | 11.3 | 20.3 | 255 |
| 74-96 | 12.9 | 21.9 | 290
|
Cable Specification:
Item Name:Fiber optical cable GYTC8S
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.
Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.
For big order,we will ship the goods by air or by sea.

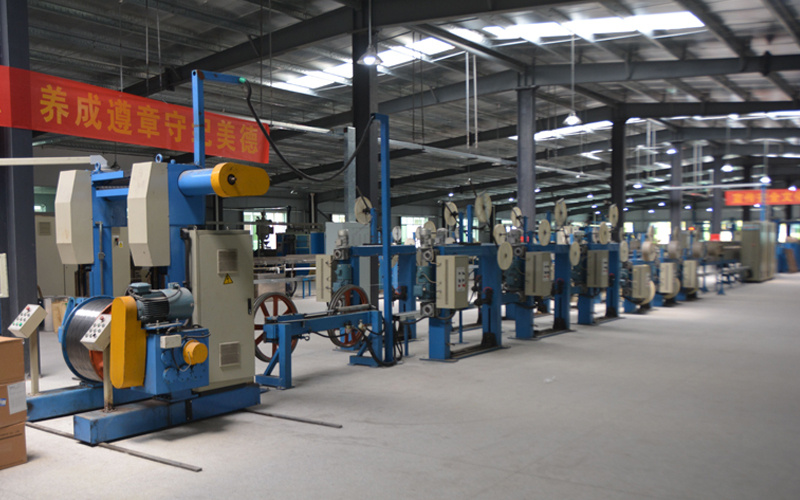

Our Company:DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
Welcome to visit our company, high quality and best service for you.
