Figure 8 Self-Supporting Single Mode Optic Cable

Prod Model:	GYTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Material:	Doped Silica
Tube:	Loose Tube Stranded/Sz Stranded
Strength Member:	Steel Wire/FRP
Steel Messenger:	0.9mm*7;1.0mm*7;1.2mm*7;1.5mm*7
Armored:	Aluminium Tape/Steel Tape
Material Of Jacket:	Lszh/PE Sheath/Flame Retardant Sheath
Bending Radius:	Static 10*Cable-D: Dynamic 20*Cable-D
Max Crush Resistance:	Short Term - 1000n , Long Term - 300 N
Applications:	Hanging on Poles
Application:	Communication
Certification:	CCC
Type:	Fiber Optical Cable
Brand:	Efon
Core:	2-288
Sheath Material:	Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent
Connection Structure:	Other

Product Description

Product Description:

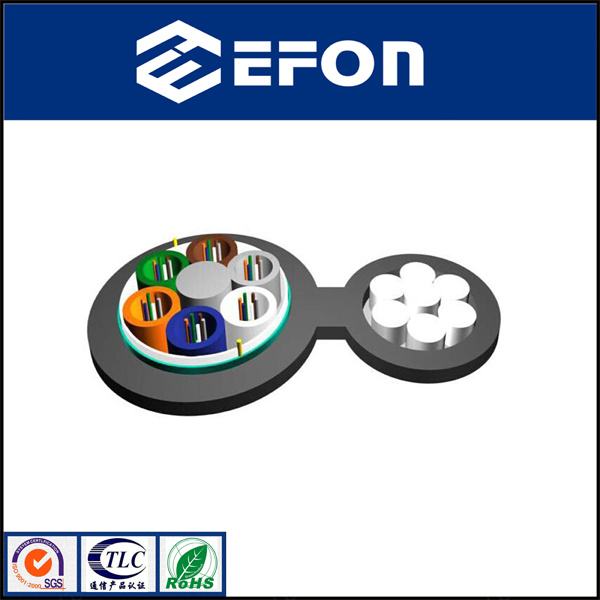

The loose tube are made of high modulus plastic (PBT), which are filled with water resistant gel.
The corrugated steel tape is applied which provide for crush resistant. Outer sheath is made of UV
resistance PE jacket. Figure-8 self-supporting structure provide high tensile strength and enables
easy and cost saving aerial installations.

Features:

1, Loose tube design. Up to 288fibers.
2, Water blocking, UV resistance, High and low temperature resistance.
3, The corrugated steel tape(CST) armor provide desirable crush resistant.
4, Adopt strict process and raw materials control guarantee the lifespan more than 30 years.

 Application:

For hanging on poles.


Mechanical Performance :
Max Tension Performance : IEC 60794–1-2-E
Max. Operation Tension : IEC 60794–1-2-E1
Crush Test : IEC 6079 –1-2-E3
Impact Test : IEC 60794–1-2-E4
Repeated Bending : IEC 60794–1-2-E6
Torsion Test : IEC 60794–1-2-E7
Cable bend : IEC 60794–1-2-E11A
Attenuation Coefficient : ITU-T G.652
Structural Test : IEC-60793-1-20
Environmental Performance
Temperature Cycling : IEC 60794–1-2-F1
Water Penetration : IEC 60794–1–2-F5B
Filing Compound Flow : IEC 60794-1-E14

Structure and Technical Specifications


Fiber Count		8-30	32-60		62-72		74-96		98-120		122-144
Diameter of Self support member (Steel wire)		7x0.9,  7x1.0,  7x1.2,  7x1.4 , 7x1.6
Diameter of Loose tube(mm)		1.8	2.1		2.1		2.1		2.1		2.1
Diameter of Cable(mm)		8.1	8.7		9.3		10.6		11.9		13.4
Gross weight(Kg/Km)		_	_		_		_		_		_
Min. bending radius		Static 10xD     Dynamic 20xD
Diameter of Self support member (Steel strand wire) mm		7x0.9mm		7x1.0mm		7x1.2mm		7x1.4mm		7x1.6mm
Max. tensile force, N  Short term		3000		4000		6000		8000		12000
Max. tensile force, N  Long term		1000		1500		2000		3000		5000
Max Crush Resistance(N/100mm)		Short term     1000N
		Long term     300 N
Allowable  T emperatures	operation	-40°C – +60°C
	storage	-50°C – +70°C
	install.	-20°C – +50°C
