Figure 8 with Self-Support Aerial 6/12/24core Fiber Optic Cable

Name: Figure 8 with Self-Support Aerial 6/12/24core Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 755716785
Availability: InStock
Rating: 4.4 (86 reviews)

Price:	US $ 0.126-1/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Count:	2-288 Cores
Fiber Material:	Doped Silica
Central Strength Member:	FRP
Material Of Jacket:	HDPE
Steel Messenger:	0.9mm7;1.0mm7;1.2mm7;1.5mm7
Armored:	Aluminium Tape/Steel Tape
Span:	50m-750m
Applications:	Aerial
Certificate:	ISO9001 TCL RoHS
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	HDPE/LSZH Sheath/Flame Retardant Sheath/Anti-Roden

Product Description

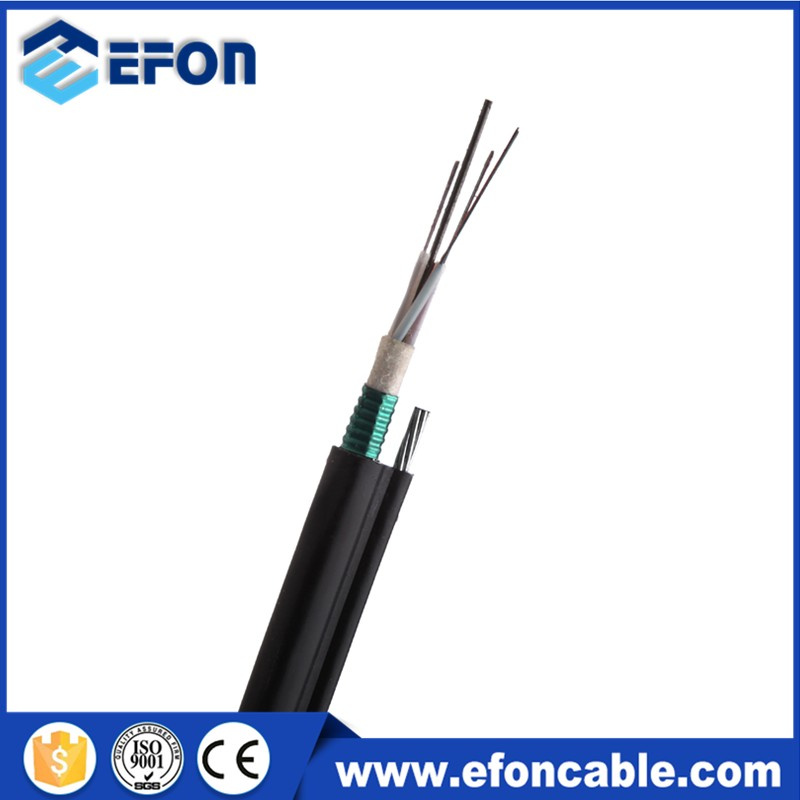

Figure 8 with Self-Support Aerial 6/12/24Core Fiber Optic Cable

Product Description:

GYFTC8S Fig 8 Loose Tube Single Jacket Single Armor Cable is designed especially for aerial installations while

incorporating a Metallic armor when extra mechanical protection is desired. With fiber counts up to 288 and S-Z strand

designs.

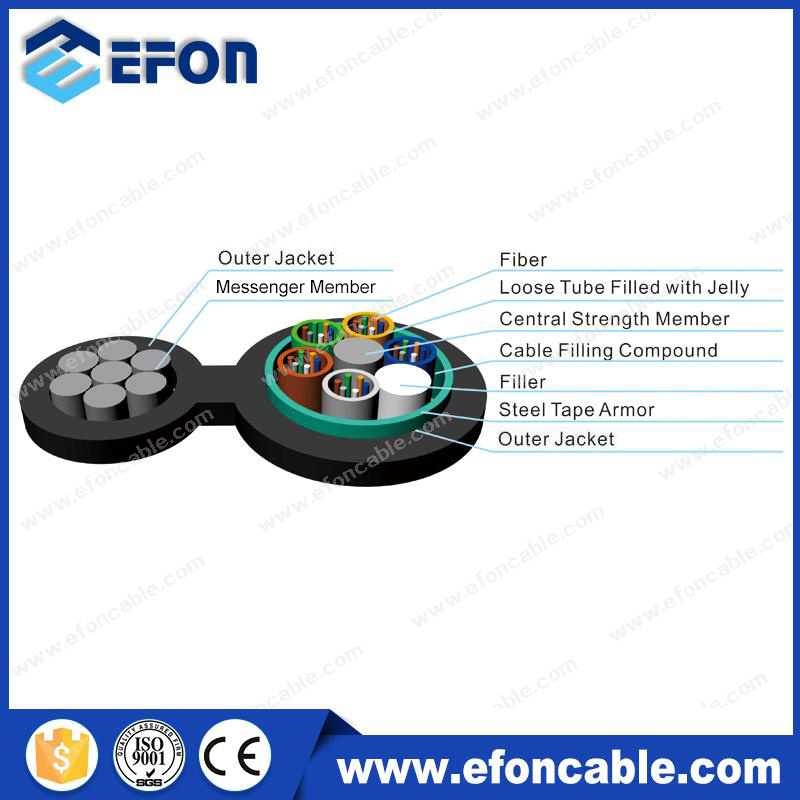

Product Construction:

Fiber:

2-288 fibers

Uni-loose tube gel-filled

Armor:

Corrugated steel tape

Central Strength Member:

Fiberglass reinforced plastic (FRP)

Messenger member:
3.0mm galvanized steel

Outer Jacket:

Black UV and waterproof polyethylene (PE).

Features:

Loose tube gel-filled construction for superior fiber protection.
Corrugated steel tape armor to protect cable from mechanical damage.
Self-supporting Figure 8 design.

Applications:

Inter building voice or data communication backbones.
Aerial installation.

Structure and Technical Specifications

Fiber Count		8-30	32-60		62-72		74-96		98-120		122-144
Diameter of Self support member (Steel wire)		7x0.9, 7x1.0, 7x1.2, 7x1.4 , 7x1.6
Diameter of Loose tube(mm)		1.8	2.1		2.1		2.1		2.1		2.1
Diameter of Cable(mm)		8.1	8.7		9.3		10.6		11.9		13.4
Gross weight(Kg/Km)		-	-		-		-		-		-
Min. bending radius		Static 10xD Dynamic 20xD
Diameter of Self support member (Steel strand wire) mm		7x0.9mm		7x1.0mm		7x1.2mm		7x1.4mm		7x1.6mm
Max. tensile force, N Short term		3000		4000		6000		8000		12000
Max. tensile force, N Long term		1000		1500		2000		3000		5000
Max Crush Resistance(N/100mm)		Short term 1000N
		Long term 300 N
Allowable Temperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C

We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance	IEC 60794-1-2-E
Max. Operation Tension	IEC 60794-1-2-E1
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Repeated Bending	IEC 60794-1-2-E6
Torsion Test	IEC 60794-1-2-E7
Cable bend	IEC 60794-1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B
Filing Compound Flow	IEC 60794-1-E14

main products

ABOUT US:

MORE INFORMATION:

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

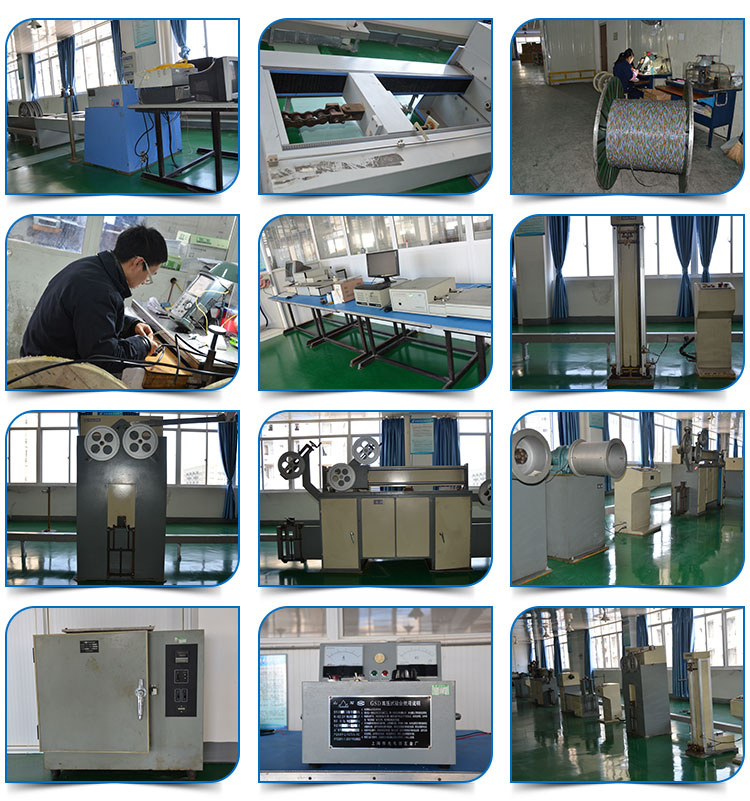

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.
