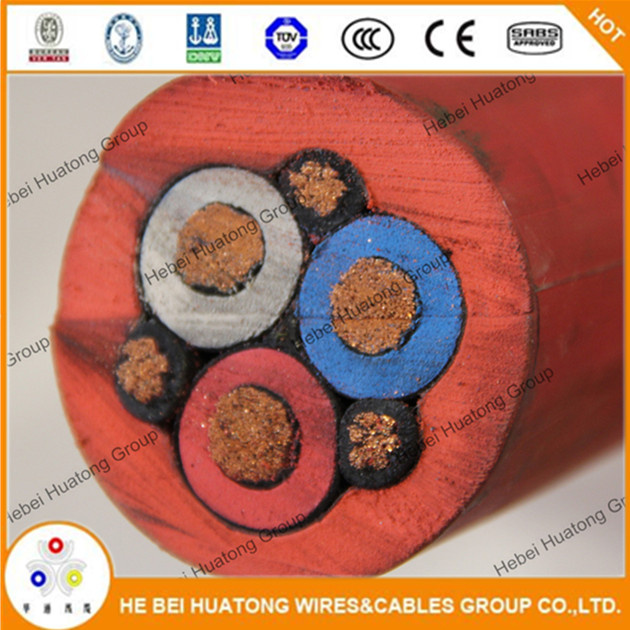

Fire Resistance 3.6/6kv Rubber Mining Cable

Price:	US $ 0.02-100/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Rated Voltage:	300/500,500V
Cross Section:	1.0-400mm2
Cores:	1,2,3,4,5
Price:	Direct Factory Price
Laying Condition:	Movable Electric Equipment or Hightemperature Site
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	VDE
Sheath Material:	Rubber
Range Of Application:	Hightemperature Site.Movable Electric Equipment
Brand:	Rneda

Product Description

Fire Resistance 3.6/6kv rubber mining cable

TOP TEN CABLE MANUFACTURER IN CHINA

LARGEST CABLE MANUFACTUER IN NORTH CHINA

ANNUAL EXPORT VOLUME EXCEED 200MILLION USD

WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS

WITH TUV TYPE TESTING REPORT

WIDE PRODUCTS RANGE

ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

CNAS APPROVAL LABROTARY

Working temperature
H07RN-F  model rated voltage U0/U IS 450/750V
H05RN-F  model rated voltage U0/U IS 300/500V
H05RR-F  model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60

Rubber copper wire Working Conditions
1.Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)
2.The long-term working temperature of conductor should be no longer than 65°C
3.W type cables have weather-proof character and certain grease proof character and are suitable for
outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.

Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.

Specification

HAR Code	IEC	Description	Voltage Design	Cores
H05RR-F	60245 IEC 53(YZ)/YZ	Ordinary rubber sheathed cord	300/500V	2~6
H05RN-F	60245IEC 57(YZW)/YZW	Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord	300/500V	2~6
H07RN-F	60245 IEC 66(YCW)/YC	Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable	450/750V	1~5, 3+1/3+2/4+1
H01N2-D	60245 IEC 81(YH)	Rubber sheathed arc-welding electrode cable	100/100V	10-120
H01N2-D	60245 IEC 82(YHF)	Polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable	100/100V	10-120

Our Services

1.24 years production experience and 14 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3.OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7.Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

Our Company

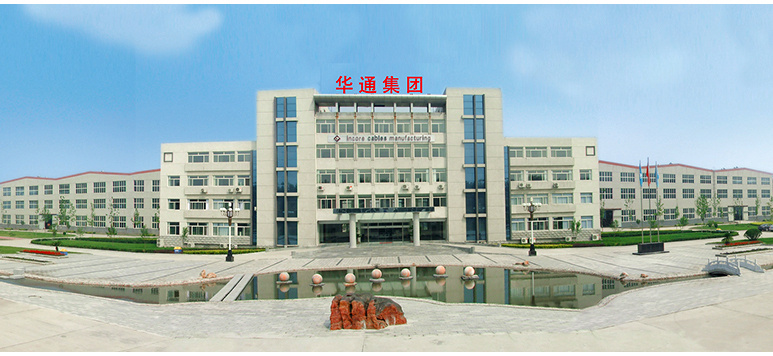

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

FAQ

1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but thefreight charge should be paid.

3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquirytwo months before the date you would like to get the products at your country.

5).How to contact us ?

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.

Products: Power Cable, Rubber Cable, UL standard building wire cable

Certificates:

Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
