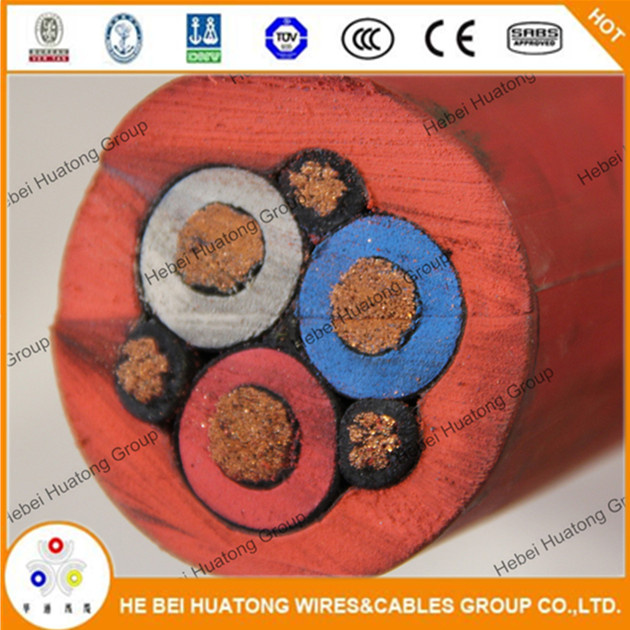

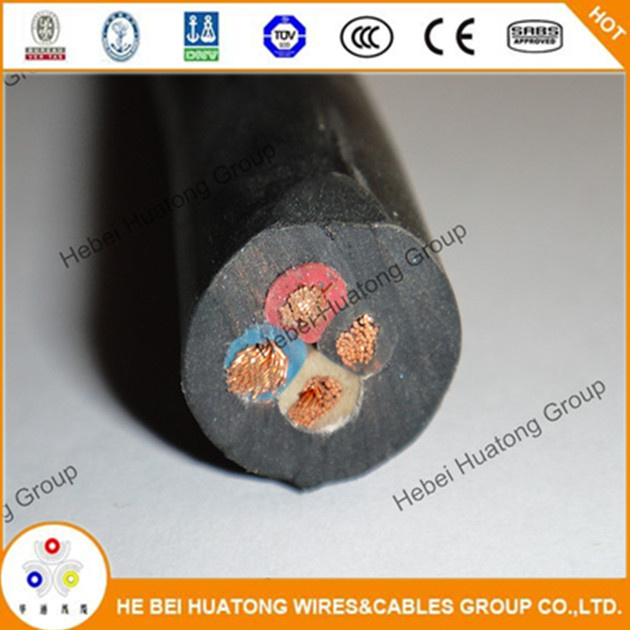

Fire Resistance Mining Cable with High Quality
| Price: |
US $ 0.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
mining power cable 4*185mm2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
Rubber |
| Certification: |
IEC |
| Brand: |
Rneda |
Product Description
YC/YZ/YCW Flexible Rubber Cable
Rubber Cable Working Conditions:
1.Rated voltage : 300/500(YZ type), 450V(YC type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Rubber Cable Type, Description & Application:
Type | Description | Application |
YQ,YQW | Light type soft rubber sheath cable |
For lighe type mobile electric devices and tools
|
YZ,YZW | General type soft rubber sheathe cable |
For lighe type mobile electric devices and tools
|
YC,YCW | Heavy type soft rubber sheath cable |
For various mobile electric devices, it could bear
strong mechanical force from outside.
|
Rubber Cable Specification Range:
Type |
Rated Voltage |
Core Number | Nominal Cross-section Area |
| YQ, YQW | 300/300 | 2.3 | 0.3~0.5 |
| YZ, YZW | 300/500 | 2.3.4.5.3+1 | 1.5~6 |
YC |
450/750 | 1
2
3.4
5 | 1.5~240
1.5~95
1.5~150
1.5~25 |
| 3+1 Core Rubber-Sheathed Flexible Cable(300/500V) |
|
|
|
|
| Cores ×Nominal section (mm2) | conductive core (mm) | Average outer diameter(mm2) | 20°C conductor resistance | Reference weight (kg/km) | | number diameter of core | Minimum | Maximum l | Copper core | tin-welled Copper core | YZ | YZW | | 3×1.5+1×1.0 | 30/0.25+32/0.20 | 9.4 | 12.0 | 13.3 | 13.7 | 170.1 | 181.9 | | 3×2.5+1×1.5 | 49/0.25+30/0.25 | 11.0 | 14.0 | 7.98 | 8.21 | 246.8 | 262.9 | | 3×4+1×2.5 | 56/0.30+49/0.25 | 13.0 | 16.0 | 4.95 | 5.09 | 359.1 | 380.52 | | 3×6+1×4 | 84/0.30+56/0.30 | 14.5 | 19.5 | 3.30 | 3.39 | 542.1 | 572.5 |
|
|
|

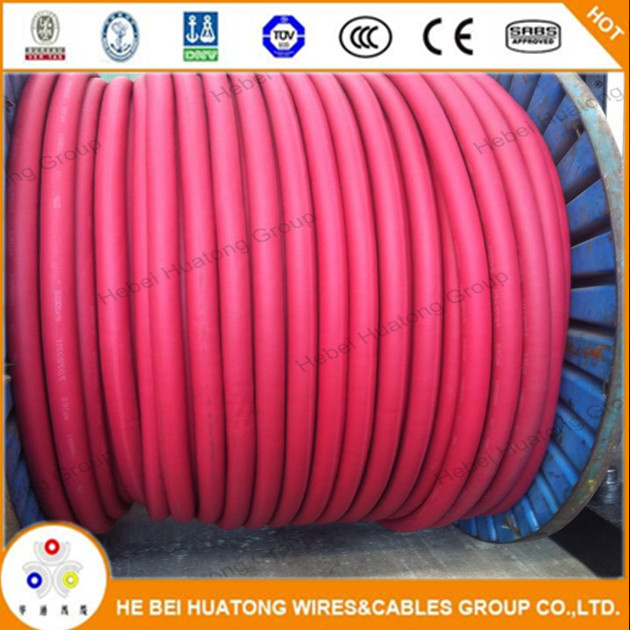

Package
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
