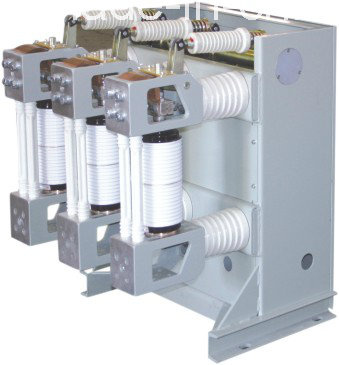

Fixed Type of Indoor Hv Vacuum Circuit Breaker (ZN28-12K)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ZN28-12K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12kv |
| Rated Frequency: |
50/60Hz |
| Rated Current: |
630/1250/1600/2000/2500/3150A |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Open Frame |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
ZN28A-12 Series of Indoor HV Vacuum Circuit BreakerGeneral DescriptionZN28A-12 fixed type indoor HV vacuum breaker is used for many kinds of switchgear like GG-1A(F),XGN2-12 (Z).It is widely used for 12kV voltage systems which is accordance with GB1984-2003 standards Structural characteristics:1.This vacuum circuit breaker adopts air insulation ,it can meet air distance and creepage under nomal run condition.2.The operating mechanism can use CD10,CD17A,ct19A or CT17G type mechanism,the outlet curve has good adaptation for the requirements of vacuum interrupters.It has high reliable with characteristic of long life and easy maintenance.3.Suitable for varies sites and the work places which have rigorous run condition,especially suitable for reconstruction of old-fashioned oil switch.
Applying ambient conditions1.Ambient temperature:-15~+40ºC.2.The height above sea level:≤1000m(besides the special requirements).3.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.4.Saturated vapor pressure:the average pressure of a day should be no more than 2.2kPa:the average pressure of a month should be no more than 1.8kPa.5.Earthquake intensity:not exceed 8 degrees.6.It should be installed in the places without fire,explosion,serious filth,and chemical erosion and violent vibration.
Main Technical Specification| S.N | Name | Unit | Data |
| 1 | Rated voltage | kV | 12 |
| 2 | Rated frequency | Hz | 50/60 |
| 3 | Rated current | A | 630 | 630 | 1250 | 1600 |
| 1000 | 1000 | 1600 | 2000 |
| 1250 | 1250 | 2000 | 2500 |
|
|
| 3150 |
| 4 | Rated short circuit breaking current | kA | 20 | 25 | 31.5 | 40 |
| 5 | Rated peak withstand current | kA | 50 | 63 | 80 | 100 |
| 6 | Rated short-circuit duration | S | 4 |
| 7 | Rated power frequency
withstand voltage | Between phases,
phase to ground | kV | 42 |
| Between gaps | kV | 48 |
| 8 | Rated lightning impulse
withstand voltage | Between phases,
phase to ground | kV | 75 |
| Between gaps | kV | 85 |
| 9 | Rated operating sequence |
| O-0.3S-CO-180S-CO O-180S-CO-18S-CO
(above 40kA) |
| 10 | Rated breaking current of single capacitor bank | A | 630 |
| 11 | Rated breaking current of bank to bank capacitor bank | A | 400 |
| 12 | Electrical endurance class | Cycle | 30 |
| 13 | Mechanical endurance | Cycle | 10000 |
| 14 | Clearance between open contacts | mm | 11±1 |
| 15 | Contact stroke of contacts | mm | 4±1 |
| 16 | Out of simultaneity of CO operation of three poles | ms | ≤2 |
| 17 | Contact bouncing duration at closing operation | ms | ≤2 |
| 18 | Closing time | ms | 50~100 |
| 19 | Opening time | ms | 20~60 |
| 20 | Average closing speed | m/s | 0.6±0.2 |
| 21 | Average opening speed | m/s | 1.1±0.2 |
| 22 | Main circuit resistance of each pole | μΩ | ≤40 | ≤30 |
| 23 | DC component |
| 50%(Max.) |

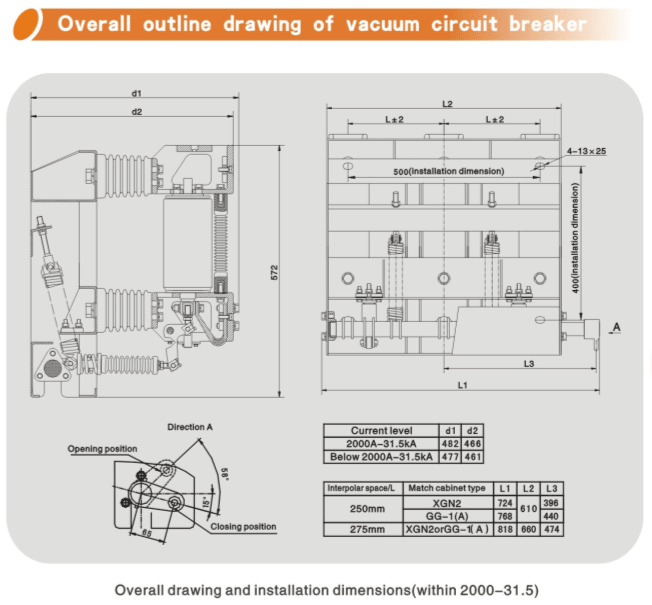

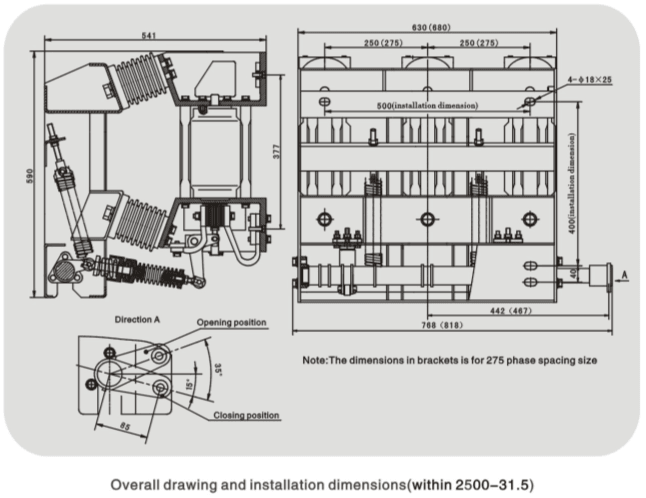

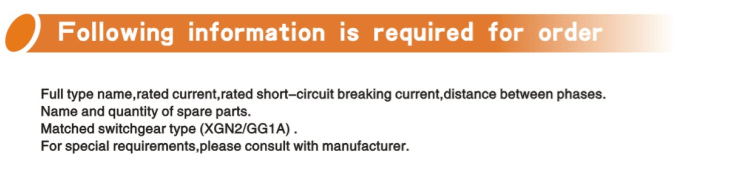

Company Introduction
General
Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.
Professional management team and extensive market supply
Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.
Reliable technique and continuous improvement of quality control
Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
