Fl1-63 C65n Type Dz47-63 Circuit Breaker

Name: Fl1-63 C65n Type Dz47-63 Circuit Breaker
Brand: all-electronics-online.com
SKU: 695422022
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 0.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FL1-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MCB:	Mini,Miniature Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	1
Certification:	CCC
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker

Product Description

Specifications

1.Rated Voltage:AC 230V/400V
2.Rated Current:6A-63A
3.Pole:1p 2p 3p 4p +N
5.CE,oem for 5 years
4.Breaking capacity:4.5KA 6KA

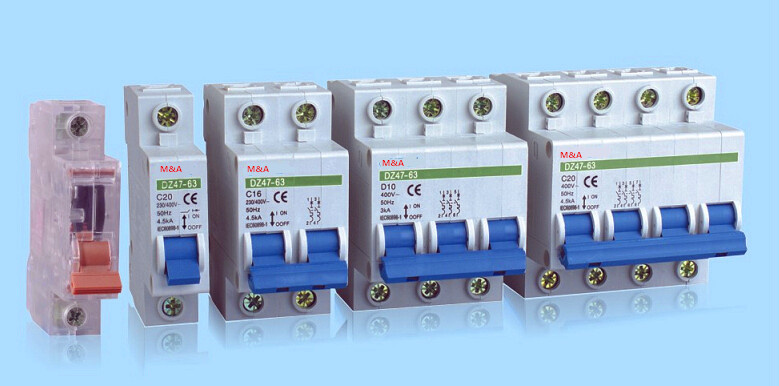

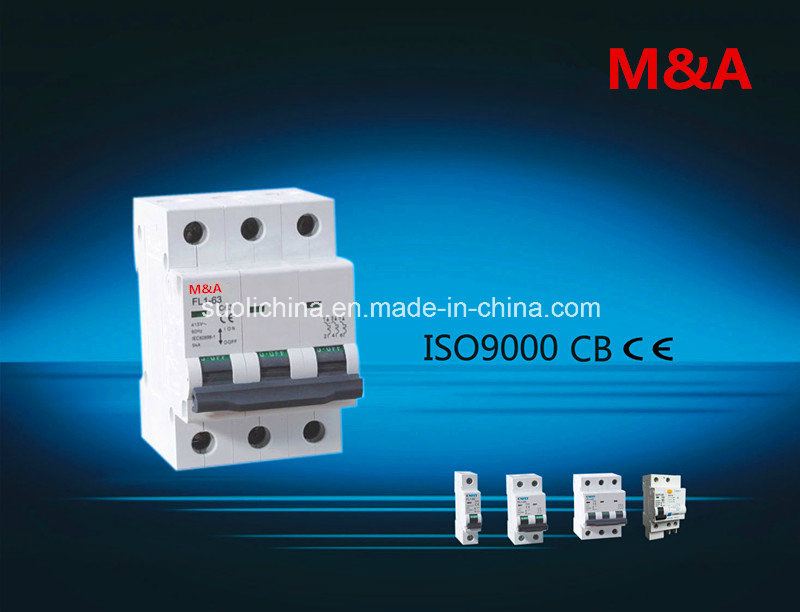

FL1-63 c65n type dz47-63 circuit breaker

1.Application

FL1-63 is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl

the product is suitable for industry,business,building,ressidence,etc.It's conformity with GB10963,IEC60898 EN898 standards.

2.Main technical data

Rated temperature 40C

Rated voltage 230V/400V AC

Rated current: 6,10,15,16,20,25,32,40,50,60,63A (D):1,3,5,6,10,15,16,20,25,32,40A

Electric endurance not lower than 6000 times

Mechanical endurance lower than 20000 times

Tropical test:2 kinds

Weight(g)1P2P3P4P

90182274366

StandardRated current (A)PoleVoltage (V)Breaking capacity(A)

EN898 IEC8981 to 4012406000

2,3,44156000

IEC157-11 to 401220/2406000

2,3,4220/24012000

2,3,4380/4156000

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

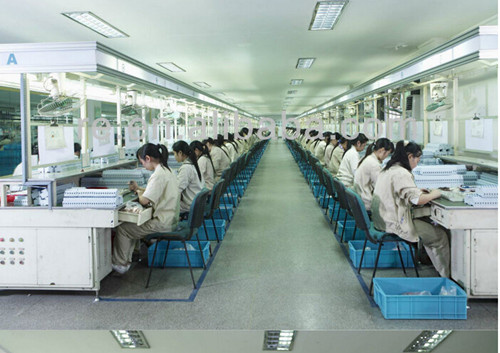

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
