| Prod Model: |
W25Q64FVSSIG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temp: |
-40 ~ 85 |
| Voltage Supply: |
2.7 V ~ 3.6 V |
| Format - Memory: |
Flash |
| Memory Type: |
Flash - Nor |
| Memory Size: |
64m (8m X 8) |
| Speed: |
104MHz |
| Interface: |
Spi Serial |
Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |
Format - storage: FLASH

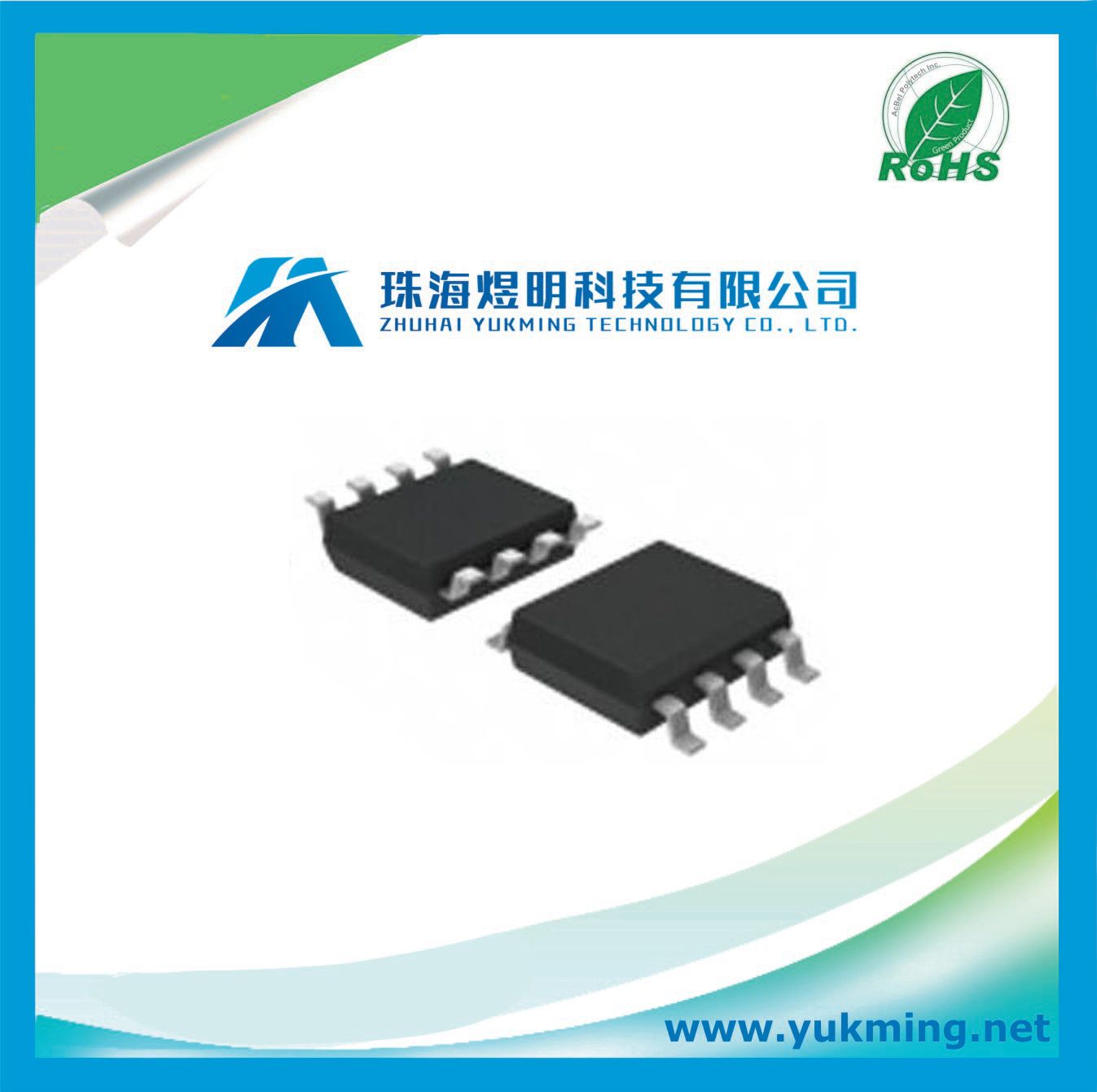

Package: 8-SOIC
Storage type: FLASH
Working temp.: -40°C ~ 85°C
Storage volume: 64M (8M x 8)
Volt- power: 2.7 V ~ 3.6 V
Package: 8-SOIC (0.209", 5.30mm Width)
Interface: SPI Serial
Speed: 104MHz
FEATURES• Family of SpiFlash Memories- W25Q64FV: 64M-bit / 8M-byte (8,388,608)- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3- QPI: CLK, /CS, IO0, IO1, IO2, IO3• Highest Performance Serial Flash- 104MHz Standard/Dual/Quad SPI clocks- 208/416MHz equivalent Dual/Quad SPI- 50MB/S continuous data transfer rate- More than 100,000 erase/program cycles- More than 20-year data retention• Efficient "Continuous Read" and QPI Mode- Continuous Read with 8/16/32/64-Byte Wrap- As few as 8 clocks to address memory- Quad Peripheral Interface (QPI) reducesinstruction overhead- Allows true XIP (execute in place) operation- Outperforms X16 Parallel Flash• Low Power, Wide Temperature Range- Single 2.7 to 3.6V supply- 4mA active current, <1µA Power-down (typ.)- -40°C to +85°C operating range• Flexible Architecture with 4KB sectors- Uniform Sector Erase (4K-bytes)- Uniform Block Erase (32K and 64K-bytes)- Program 1 to 256 byte per programmable page- Erase/Program Suspend & Resume• Advanced Security Features- Software and Hardware Write-Protect- Top/Bottom, 4KB complement array protection- Power Supply Lock-Down and OTP protection- 64-Bit Unique ID for each device- Discoverable Parameters (SFDP) Register- 3X256-Bytes Security Registers with OTP locks- Volatile & Non-volatile Status Register Bits• Space Efficient Packaging- 8-pin SOIC 208-mil- 8-pad WSON 6x5-mm/8x6-mm- 16-pin SOIC 300-mil- 8-pin PDIP 300-mil- 24-ball TFBGA 8x6-mm- Contact Winbond for KGD and other optionsProduct Attributes| Category | Integrated Circuits (ICs) | |
|---|
| Family | Memory | |
|---|
| Manufacturer | Winbond Electronics | |
|---|
| Series | SpiFlash® | |
|---|
| Packaging | Tube | |
|---|
| Format - Memory | FLASH | |
|---|
| Memory Type | FLASH - NOR | |
|---|
| Memory Size | 64M (8M x 8) | |
|---|
| Speed | 104MHz | |
|---|
| Interface | SPI Serial | |
|---|
| Voltage - Supply | 2.7 V ~ 3.6 V | |
|---|
| Operating Temperature | -40°C ~ 85°C (TA) | |
|---|
| Package / Case | 8-SOIC (0.209", 5.30mm Width) | |
|---|
| Supplier Device Package | 8-SOIC |
|---|
