Flat Plate Piezoelectric Pressure Sensor/Flush Diaphragm Sanitary Sensors

Name: Flat Plate Piezoelectric Pressure Sensor/Flush Diaphragm Sanitary Sensors
Brand: all-electronics-online.com
SKU: 780437885
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	US $ 72-78/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-82C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connect Type:	Flat Film
Material:	Stainless Steel
Power Supply:	4~20mA
Product Name:	Flat Plate Piezoelectric Pressure Sensor

Product Description

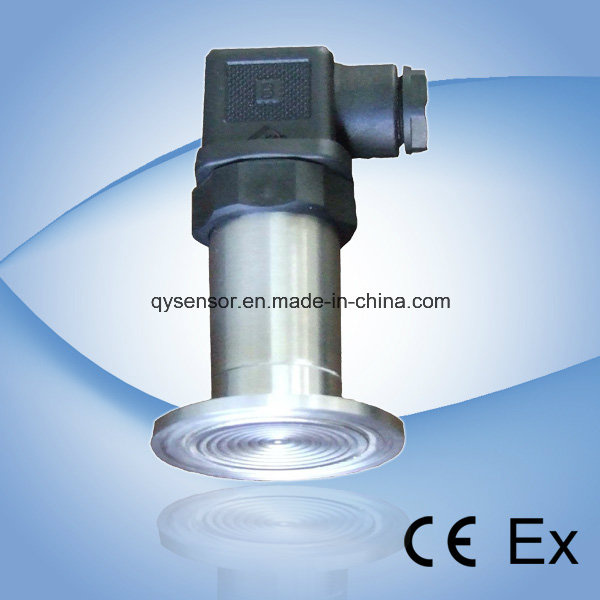

Model: QP-82C Flat plate piezoelectric pressure sensor
Range: 0~35KPa.0~500KPa.0~2 MPa

Feature:
flush membrane type pressure transmitters
Have the characteristics of high precision, good stability, long working life and high reliability.
Small in size, light in weight, Easy to installation.
Electrical connection are able to chosen by customers.
Suitable for the measuring and produce of medical treatment, food equipment.
Dimensions: (unit: mm)

Technical Specifications

Measuring media	Gases or liquids which are compatible to 316L stainless steel
Measuring range	0~35KPa.0~500KPa.0~2 MPa
Pressure type	Gauge(G)
Signal output	transmitter, mA (2 wires)		4~20mA
	transmitter, Vdc (3 wires)		0~10V, 1~5V,0~5V,0~20mA
Combined accuracy	%FS		±0.25(Standard), ±0.5(Max)
Long stability	±0.1%FS/year(Standard);±0.2%FS/year(Max)
Power supply	Vdc	12~36(Standard 24Vdc)
Compensated temp.	ºC	-10~+60
Operating temp.	ºC	-20~+80
Temperature coefficient of ZERO	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Temperature coefficient of SPAN	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Insulation resistance	MΩ	>500 @ 100Vdc
Electrical connection	DIN43650,Aviation connector,Directly lead(Selectable)
Material	Housing Material		Stainless steel(1Cr18Ni9Ti)
	Material of diaphragm		316L Stainless steel
Environment protection	IP		65
Safe overload	%FS		150
Ultimate overload	%FS		200

Contact for more details:

Chloe Shu
Sales Engineer

TEL: +86-916-2257989
MOB: +86 15336190378

http://www.qysensor.com
https://cn.linkedin.com/pub/chloe-shu/74/445/964

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
