Flexible 16mm 25mm 30mm 70mm Single Core Silicone Electric Wire Cable

Name: Flexible 16mm 25mm 30mm 70mm Single Core Silicone Electric Wire Cable
Brand: all-electronics-online.com
SKU: 732018412
Availability: InStock
Rating: 5 (103 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Nane:	1.5 2.5 4 6 10 Sq mm PVC Insulated Copper Wire
Rated Voltage:	300/500V 450/750V
Conductor:	Copper / Aluminum
Insulation:	Rubber
Certificates:	ISO CCC Ce RoHS
Origine:	Shandong China
Color:	Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ:	100 Meter
Packaging:	100 Meter Per Roll
Shipping:	by Sea, by Train, by Air
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	GB/T Standard
Conductor Type:	Solid / Stranded
Application:	Fixed Wire
Sheath Material:	Rubber
Range Of Application:	Lsoh / Flame -Retardant
Brand:	Chanong Qing Teng

Product Description

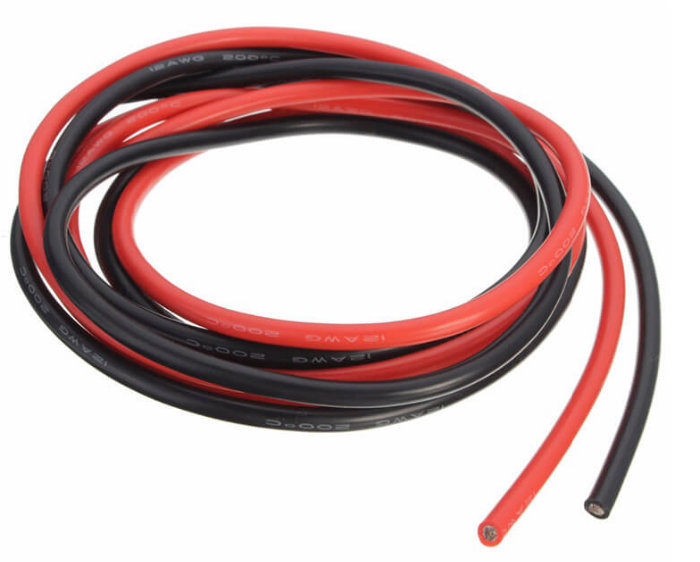

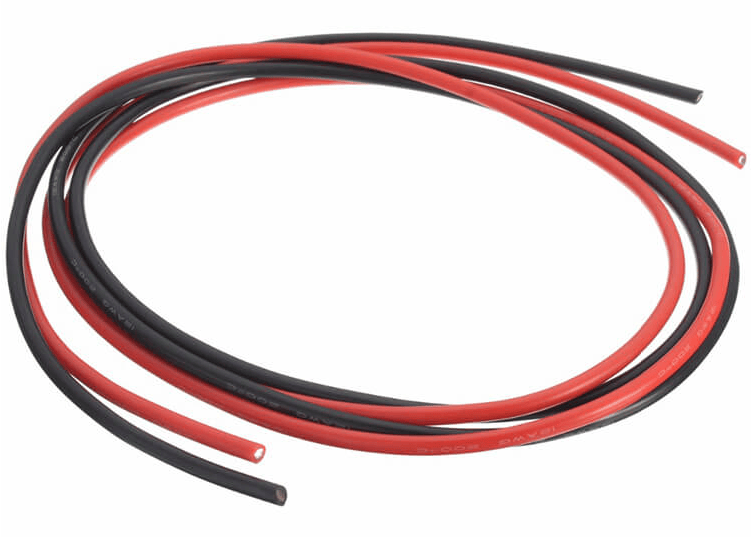

Flexible 16mm 25mm 30mm 70mm Single Core Silicone Electric Wire Cable

Silicone rubber cable is for use in situations where the temperature exceeds 200°C. Silicone Flexible Cable is great for use in applications where extreme temperatures, strong UV rays, and mechanical wear and tear break down other types of cables. This makes them good for heating and lighting systems, foundries, factories, mills, and burners. Silicone Flexible Cables also are available in safer, low-smoke, halogen-free versions.

Requirements: For flexible high temperature applications
Outer jacket: silicone
Acid & alkali resistance, oil resisitance, water proof, mould proof.
Easy to peel and cut

Typical application areas

It is widely used in electronics, batteries, lithium batteries, new energy equipment, model aircraft batteries, model wiring harness, electrical and equipment internal wiring, lighting, household appliances, electrothermal appliances, instrumentation, lighting, dyeing, large transformers and motor leads Lines such as connecting wire and other high-temperature line work environment.

General properties (General Specification)

4/0 AWG ( 120 mm2 ), 3/0 AWG ( 90mm2 ), 2/0 AWG ( 70 mm2 ), 0 AWG ( 60mm2 ), 2 AWG ( 35mm2 ), 4 AWG (25 mm2 ), 6 AWG ( 15mm2 ), 8 AWG ( 10mm2 ), 10 AWG ( 6mm2 ), 12 AWG ( 4mm2 ), 14 AWG ( 2.5mm2 ), 16 AWG ( 1.5mm2 ), 17 AWG ( 1mm2 ), 18 AWG ( 0.75mm2 ), 20 AWG ( 0.5mm2 ), 22 AWG ( 0.34mm2 ), 24 AWG ( 0.25mm2 ), 26 AWG ( 0.14mm2 )

Products Show

All specification and construction can be Customized according to customers' requirement !

Dynamic information

Min. bend radius, fixed (factor): 4.0 x d
Min. bend radius, flexible (factor): 8.0 x d
Temperature Range: -76 °F to +392 °F (-60°C to +200°C)

Cable structure

Conductor: Conductor consisting of tinned copper wires (according to EN 60228)
Conductor insulation: high-quality silicone rubber
Conductor construction: Cores stranded in optimized pitch
Braid: Silicone Fiberglass
Unshielded: Yes
Jacket color: orange, red, yellow, blue, white, black, brown, blue, green, translucency.

Electrical information

Nominal voltage: 600 V
Testing voltage: 2000V

Properties and approvals

Flame retardant: According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1
Radiation Resistance: 8*10^-7cJ/kg
UL/CSA: Style 3239
CE: Following 2014/35/EU

Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Factory Production Base

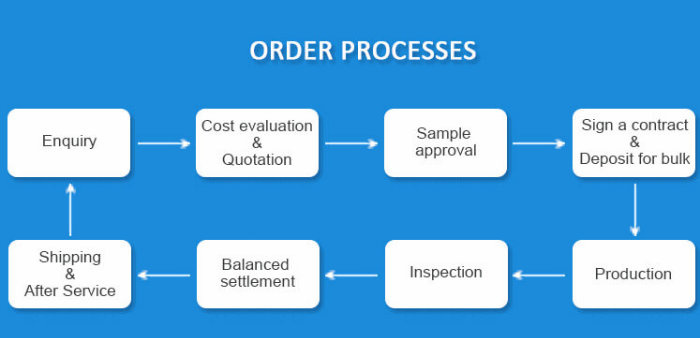

Order Processes
