Flexible Cooper Electric Wire and Cable PVC Insulation Electrical Wire and Cable 4mm 10mm 6mm

Name: Flexible Cooper Electric Wire and Cable PVC Insulation Electrical Wire and Cable 4mm 10mm 6mm
Brand: all-electronics-online.com
SKU: 732104992
Availability: InStock
Rating: 4.4 (93 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	pvc wire and cable
Product Name:	PVC Wire and Cable
Rated Voltage:	300/500V 450/750V
Conductor:	Copper / Aluminum
Insulation:	PVC / XLPE
Certificates:	ISO CCC Ce RoHS
Origine:	Shandong China
Color:	Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ:	100 Meter
Packaging:	100 Meter Per Roll
Shipping:	by Sea, by Train, by Air
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	GB/T Standard
Conductor Type:	Solid / Stranded
Application:	Fixed Wire
Range Of Application:	Lsoh / Flame -Retardant
Brand:	Chanong Qing Teng

Product Description

Flexible cooper electric wire and cable pvc insulation electrical wire and cable 4mm 10mm 6mm

Specifications
1). Rated voltage U0/U 300/500V and 450/750V.

2). The long-time permissible temperature of cable: BV-105 below 105°C,and the other below 70°C.

3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.
5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of

cable. And the other is above 6 times of the external diameter of cable.

6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

8). Insulation sheath material and color: PVC in red, black, blue or any color as required.

9). Type: Single or twin cables with different colors Provides OEM according to requests of customer.

Applications
It is fit for ac rated voltage 450/750 and below of domestic electrical appliances of smaller size motorcadetools of instruments of various meters and motorized lighting installations.
and suitable to be used in household appliances ,electric tools and lighting in home , office and similar indoor place where request flexible wire.

Standard GB 5023 IEC 60227 BS 6004

Model

Type	Name	Laying place and requirement	Long term working Temperature ⁰C
60227IEC01 05 BV BLV	Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires	Fixed laid indoors Conduit etc.	70
60227IEC07 (BV-90)	Heat resistant copper conductor PVC insulated wire at 90 ⁰C	Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits.	90
BVR	Copper conductor PVC insulated flexible wires	Be for laying permanent place where flexible required.	70
60227IEC10 (BVV) BVV	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.	70
BLVV	Aluminum conductor PVC insulated PVC sheathed round wires
BVVB	Copper conductor PVC insulated PVC sheathed flat wires
BLVVB	Aluminum conductor PVC insulated PVC sheathed flat wires
60227IEC02(RV) 60227IEC06(RV)	Copper conductor PVC insulated flexible connector wire	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	70
60227IEC42(RVB)	Copper conductor PVC insulated flat flexible connector wire
RVS	Copper conductor PVC insulated flexible twisting connector wire
60227IEC52(RVV) 60227IEC53	Copper conductor PVC insulated PVC sheathed round flexible connector wire
60227IEC08 (RV-90)	Cu conductor heat resistant PVC insulated flexible connector wire at 90 ⁰C	Mainly used at the places where heat resistance is required	90

Comprehensive Data of BV Wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
0.5	1/0.80	0.6	2.4	36.0	0.015	8.1
0.75	1./0.97	0.6	2.6	24.5	0.012	10.6
1	1/1.13	0.6	2.8	18.1	0.011	13.2

Comprehensive Data table of BV BLV Type PVC Insualted Wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Type BVR 450/750V copper conductor PVC insulated flexible wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.6	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0

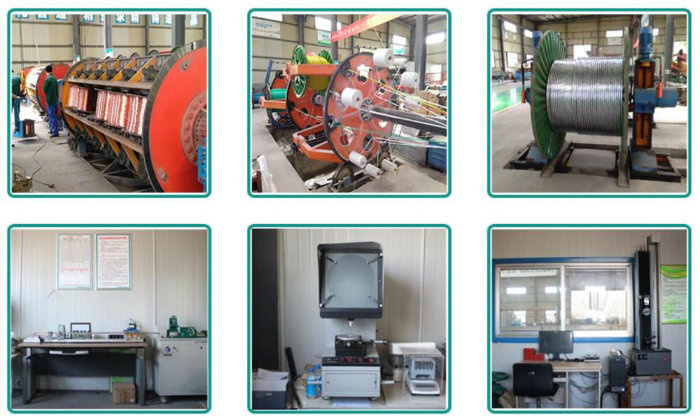

Luxing Cable Factory

Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Certificates

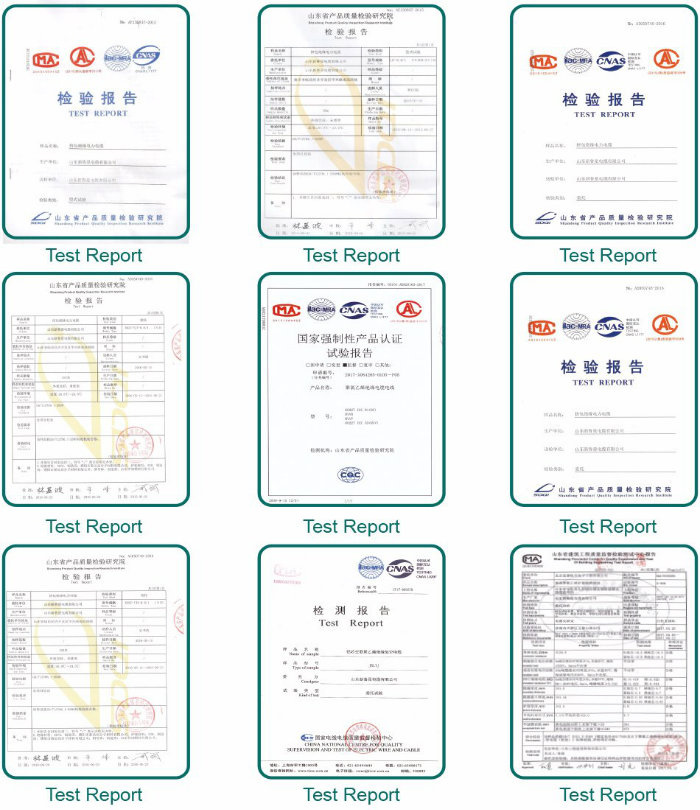

Type Test Report

Packaging & Shipping

FAQ

1.Are you a factory or a trading company?

We are a factory.

2.Can you provide free samples?

Yes, we can provide free samples of our products, just contact us with the details of samples needed.

3.What's the MOQ requirements of your products?

Our MOQ requirement depends on actual size and cable type.

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
