| Prod Model: |
220V1000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flexible Heater: |
Silicone Rubber Heater |
| MOQ: |
1PC |
| Size: |
20*25mm-500mm-5000mm |
| Thickness: |
1.5mm |
| Power Design: |
3-5W/Square Centimetre |
| Working Temperature: |
-40-250c |
| Resistance Wire: |
Nickel 80% Wound Wire |
| Optional Resistance Wire: |
Nickel 80% Foils |
| Application: |
Heater |
| Structure Material: |
Non-Metallic Material |
| Heat Transfer Surface: |
Plate Heat Exchanger |
| Principle: |
Regenerative Heat Exchanger |
Product Description
Flexible Heater Element
General Introduction
Silicon rubber heater produced by our company is extremely thin, light and flexible. And the heater with the silicon rubber electric heating plate can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Glass fiber-reinforced silicon rubber can ensure the heater to be stable in dimension, without losing flexibility.
(1) Design according to actual shape and dimension, and adopt three-dimensional geometry to satisfy the requirements of your equipment.
(2) Moisture-proof chemical defense silicon rubber material makes the service life of heater much longer.
(3) It can be simply pasted or attached to your component by vulcanizing, adhesive or fastener, etc.

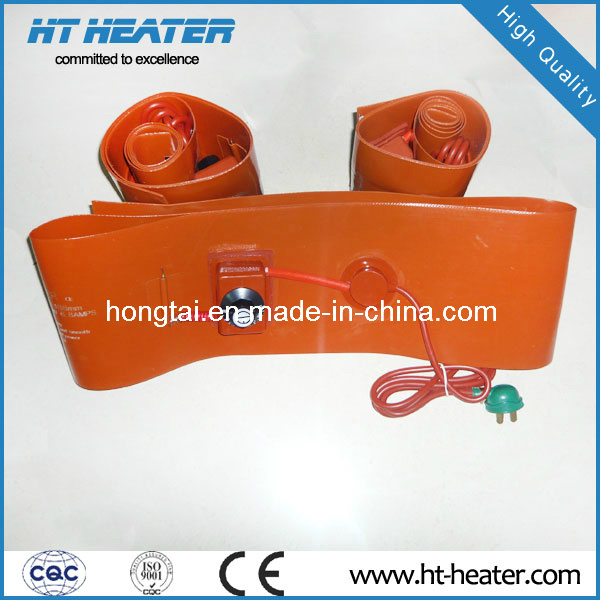

Silicone rubber heater band
It is beneficial to take out liquid and coagulum in drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.
Application
(1) Freezing and compression prevention for various instruments and devices.
(2) Medical equipment such as blood analyzer, test tube heater.
(3) Computer auxiliary equipment, such as laser printer.
(4) Vulcanized surface of plastic film.
|
Rated Power |
W |
Lead Length |
200mm |
|
Rated voltage |
12V_380V |
Wire tension |
15N×15N |
|
Maximum size |
1000m_1200m |
Minimum size |
20mm×20mm |
|
Ambient Temperature |
--60-----250C |
Highest temperature |
250C |
|
Maximum thickness |
1.5mm_4mm |
Withstand voltage |
1.5KV |
|
Insulation resistance |
≥5MΩ |
Size deviation |
±0.5 |
|
Power deviation |
±5 |
Wire Type |
Silicone braided wire |
|
|
Oil Drum Heater
200Liter |
Oil Drum Heater
20Liter |
Oil Drum Heater
200Liter |
Oil Drum Heater
200Liter |
|
Size |
250×1740 |
200×860 |
125×1740 |
150*1740 |
|
Capacity |
200V 2000W |
200V 800W |
200V 1000W |
200V 1000w |
|
The temperature regulates |
30~150C |
|
Weight |
Invite:0.5kg |
Invite:0.4kg |
Invite:0.3kg |
Invite:0.35kg |
Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).
With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.
We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.
We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.
Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.
Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.
We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
