Flexible PCB Printed Circuit (FPC) Flex Strip Polyimide (PI) 25um
| Price: |
US $ 4.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-450-V4.50 |
| Board Thickness: |
0.15mm +/-10% |
| Surface Cu Thickness: |
35 Um (1 Oz) |
| Surface Finish: |
Immersion Gold |
| Coverlay Colour: |
Yellow,25 Um |
| Color Of Silkscreen: |
White,Taiyo |
| Mininum Trace (Mil): |
20mil |
| Minimum Gap(Mil): |
N/a |
| Thermal Shock Test: |
Pass, -25ºC±125ºC, 1000 Cycles. |
| Function: |
100% Pass Electrical Test |
| Structure: |
Single-Sided FPC |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Material: |
Polyimide (Pi) 25um |
| Application: |
Analog Device |
| Brand: |
Iteq |
Product Description

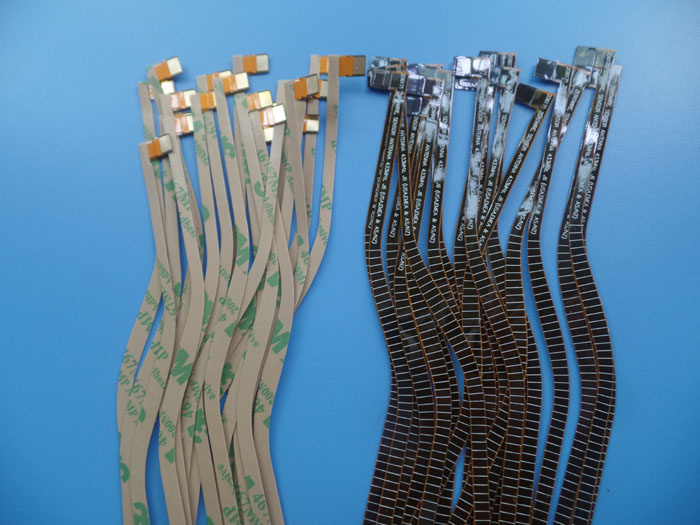

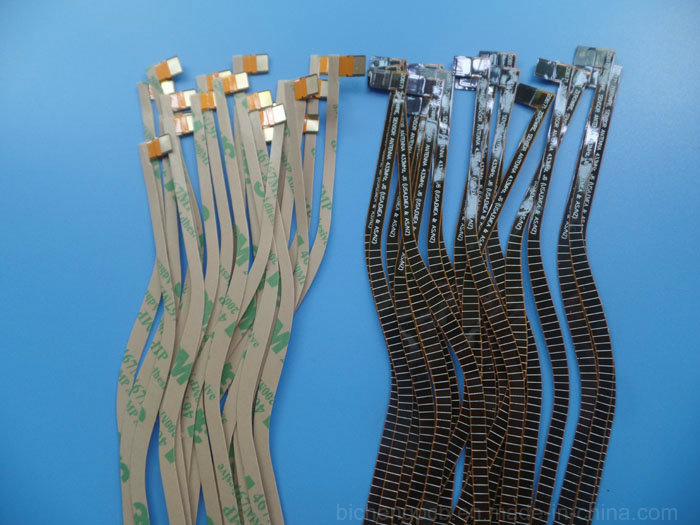

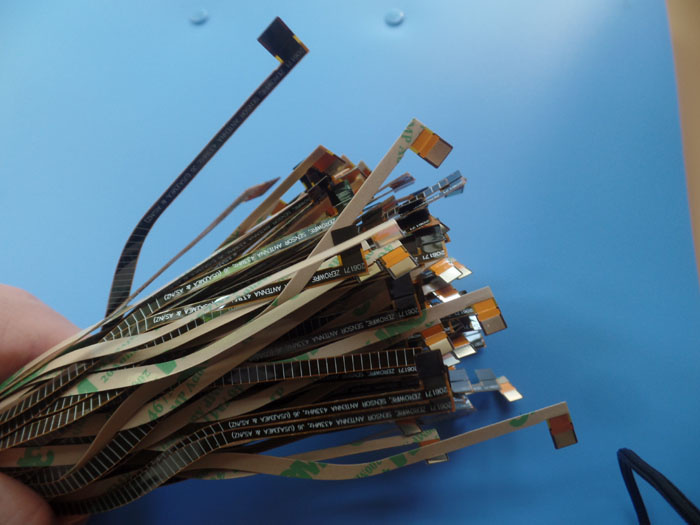

Flexible PCB Polyimide(PI)25um FPC Cirucit board With min trace 20mil
Commodity IntroductionThis is a type of flexible printed circuit for the application of antenna. It's a single layer board at 0.15mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 3M tape is applied on the back side, Polyimide as stiffner on the head.
Parameters & Data Sheet| Number of Layers | 1 |
| Board Type | Flexbile cirucit |
| Board Thickness | 0.15mm +/-10% |
| Board Material | Polyimide (PI) 25um |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 um |
| Stiffener | Polyimide 0.3mm |
| |
| Type of Silkscreen Ink | TAIYO |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 20mil |
| Minimum Gap(mil) | N/A |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds,3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Bicheng Flexible Printed Circuit(FPC PCB) Capability| No. | Content | Capability |
| 1 | Board Type | Single layer,Double layer,Multilayer,
Rigid-Flex |
| 2 | Base Material | PI,PET |
| 3 | Copper Weight | 0.5oz,1oz,2oz |
| 4 | LED Maximum Size | 250×5000mm |
| 5 | General Maximum Size | 250×5000mm |
| 6 | Board Thickness | 0.03mm-3.0mm |
| 7 | Thickness Tolerance | ±0.03mm |
| 8 | Mininum Drill Hole | 0.05mm |
| 9 | Maximum Drill Hole | 6.5mm |
| 10 | Tolerance of Drill Hole | ±0.025mm |
| 11 | Thickness of Hole Wall | >=0.125mm |
| 12 | Minimum Track/Gap of Single Layer Board | 0.025/0.03mm |
| 13 | Minimum Track/Gap of Double Layer and Multilayer Board | 0.03/0.040mm |
| 14 | Etching Tolerance | ±0.02mm |
| 15 | Minimum Width of Silk Legend | >=0.125mm |
| 16 | Minimum Heigh of Silk Legend | >=0.75mm |
| 17 | Distance from Legend to Pad | >=0.15mm |
| 18 | Distance from Opening Solder Mask of Drill Coverlay to Track | >=0.03mm |
| 19 | Distance from Opening Solder Mask of Punching Coverlay
to Track | >=0.03mm |
| 20 | Thickness of Immersion Nickel | 100-300u'' |
| 21 | Thickness of Immersion Gold | 1-3u'' |
| 22 | Thickness of Immersion Tin | 150-400u'' |
| 23 | Minimum Electrical Testing Pad | 0.2mm |
| 24 | Minimum Tolerance of Outline(Normal Steel Mould Punch) | ±0.1mm |
| 25 | Minimum Tolerance of Outline(Precision Steel Mould Punch) | ±0.05mm |
| 26 | Minimum Radius of Bevel Angle(Outline) | 0.2mm |
| 27 | Stiffner Material | PI,FR-4,3M Adhesive,PET,Steel Sheet |
| 28 | RoHs | Yes |
| 29 | Solder Mask Colour | Yellow,White,Black,Green |
Learn PCB and Buy PCBBare board test (BBT)
Multiple quality assuring procedures are performed before shipment. It includes:
Visual inspection
Flying probe
Impedance control
Solderability detection
AOI (automated optical inspection)
High voltage test
Micro section
Thermal stress test
Reliability test
Insulation resistance test
Ionic contamination test
