Flexible PCB Technology Double-Sided FPC with Immersion Gold
| Price: |
US $ 1.35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-1827-V17 |
| Board Thickness: |
0.15mm |
| Surface Cu Thickness: |
35 Um(1 Oz) |
| Color of Silkscreen: |
Black |
| Surface Finish: |
Immersion Gold |
| Peeling Test of Coverlay: |
No Peelable |
| Stiffener Thickness: |
0.2mm |
| RoHS Required: |
Yes |
| Coverlay Colour: |
Transparent |
| Number of Coverlay: |
25 Um |
| Test: |
100% Electrical Test |
| Structure: |
Single-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Microwave Amplifier |
Product Description

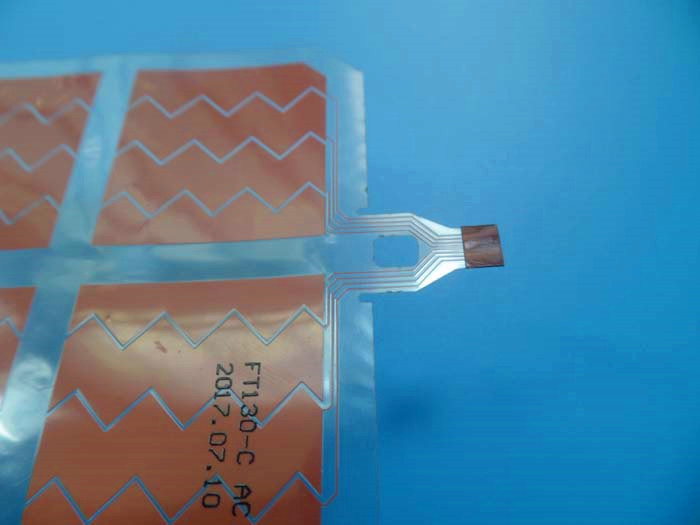

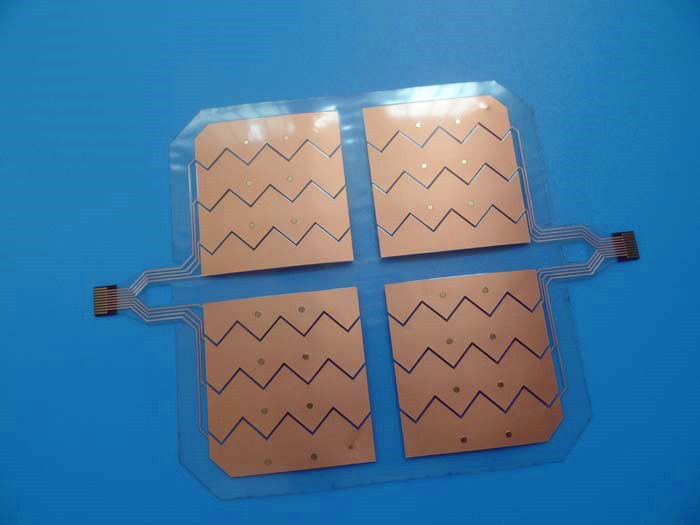

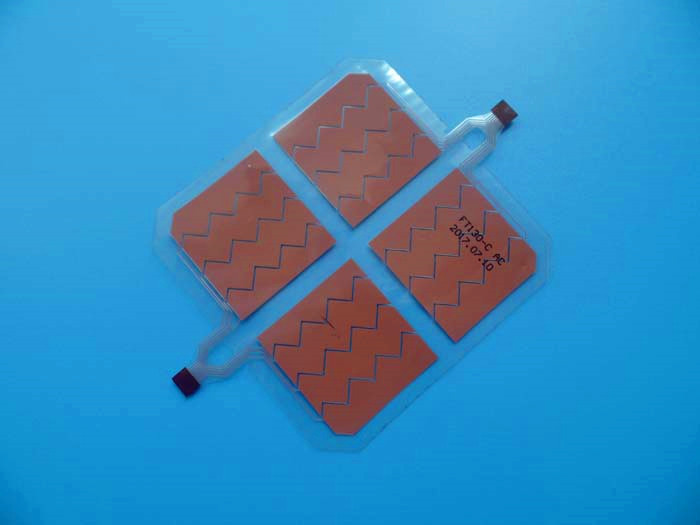

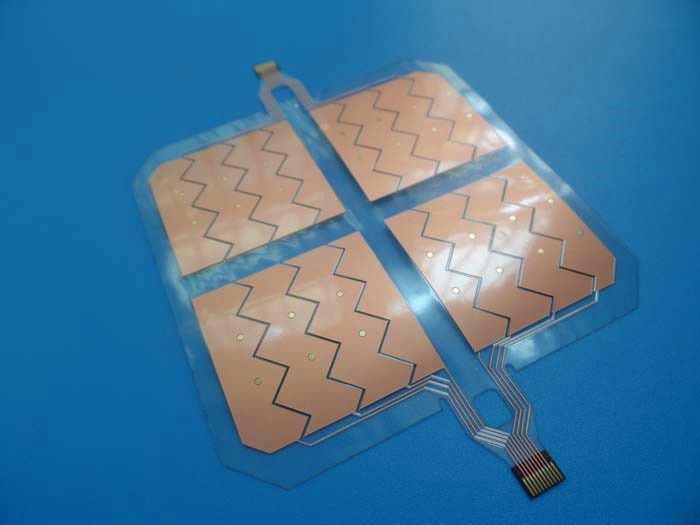

Flexible PCB Technology Double-Sided board with Immersion Gold FPC 407
Commodity Introduction
This is a type of flexible PCB for the application of Microwave Amplifier. It's a single sided layer
FPC at 0.15mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 usi
-ng supplied Gerber data. Polyimide stiffner is applied on the inserting part.
Parameter & Data Sheet| Size of Flexible PCB | 70.18 X 68.28mm |
| Number of Layers | 1 |
| Board Type | Flexible PCB |
| Board Thickness | 0.15mm |
| Board Material | PET 25µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 µm |
| | |
| Coverlay Colour | Transparent |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | Polyimide |
| Stiffener Thickness | 0.2mm |
| | |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Black |
| Number of Silkscreen | 1 |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
| | |
Rigid Areas on Flexible Circuits
To support a number of relatively heavy components or to play a role of connector part,it is necessary for the flexible circuit to reinforce such an area. This is achieved by bonding a rigid material to that area. The rigid material in technical is called stiffener. It can be a layer of thicker polyimide, or it can be an epoxy glass laminate, sometimes stainless steel is used too.
Stackup
Polyimide
} coverlay
Adhesive
Copper Foil |
Adhesive } Flexible circuit
Polyimide |
Adhesive } Bonding Ply
FR-4 } Stiffener
