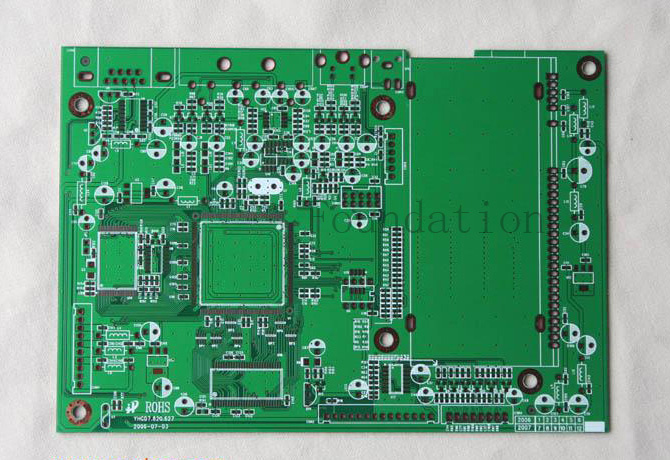

Flexible Printed Circuit Corrosion Resistance Membrane Switch Board PCB / PCBA

Prod Model:	HC-PCB- 009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Size:	as Per Request
Structure:	Multilayer Rigid PCB
Production Process:	Subtractive Process
Base Material:	PCB
Material:	Printed Circuit Board
Brand:	Tkm

Product Description

Flexible Printed Circuit Corrosion Resistance Membrane Switch Board PCB / PCBA

1. Artificial intelligence
2. Pipe anti-freezing
3. Temperature control
4. Water up timing
5. Display water temperature and water level
6. Specializing in development and manufacturing of PCB and PCBA
7. IPC-A-160 standard
8. Complicated boards and components are also available
9. Uses advanced production and testing equipment, including:
A. Film AOI
B. RoHS testing equipment
C. Automatic wave soldering system
D. Circumfluence soldering systems
E. Position System: Servo motor
F. Mechanical transmission precision guide+ ball screw mechanical drive transmission system
G. Toptech AOI Verification
H. LED cold light concentrating highlighted systems
10. PCB design, layout, fabrication, assembly and function test
11. Lead-free technology SMT process
12. OEM and ODM orders are welcome printed materials and print
    Window solution: UV curing. There WINDOTEX GLOSS (smooth transparent), WINDOTEX ANTIGIARE (matte surface) that is matte, FOTOTEX UV MATT (sand surface). Glossy and matte liquid transparent window window solution can be mixed to achieve the desired effect. Pre-press and complete mixing, 100T mesh, 25 # 35 # capillary film production network version, avoiding sun printing, printing printing order placed on the surface of the first or second process. Liquid layout window allows the window to restore hair all things transparent, but also allows the window to become opaque and transparent matte surface.
    Screen Printing glue optional Section III and the international Lai brand C/Tacr110, the glue applied to -40 ~ 180 ºC, for material for the PET, PC, PS, PP, PMMA and metal, glass.

Insulation Resistance	<100MΩ,250V DC	Contact resistance	<1Ω /cm
operating voltage	≤ 50VDC	working current	25- 100mA,0-30V DC
reliability/service life	>1 million times/Withstand millions of cycles	Operating humidity	when40°C,<98%RH
spring time	≤ 5ms	substrate voltage	2000V DC
Tail flexiblility	any an gle within 180 degree	Switch travel	Flat Type 0.05-0.3mm tactile type:0.3-1.5mm
