Flexible PVC Flat Elevator Cable

Name: Flexible PVC Flat Elevator Cable
Brand: all-electronics-online.com
SKU: 760693885
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TVVB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Flexible
Voltage Class:	Low Voltage
Rate Voltage:	450/750V
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Material Shape:	Flat Cable
Range Of Application:	Lift/Elevalor
Brand:	Rneda

Product Description

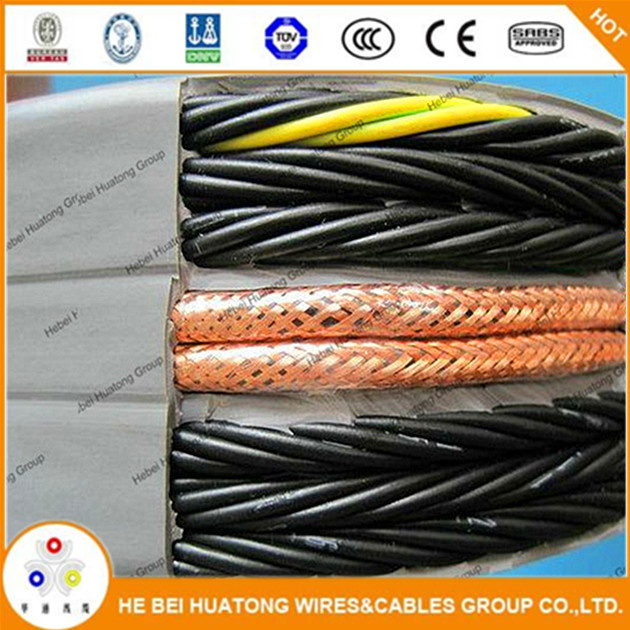

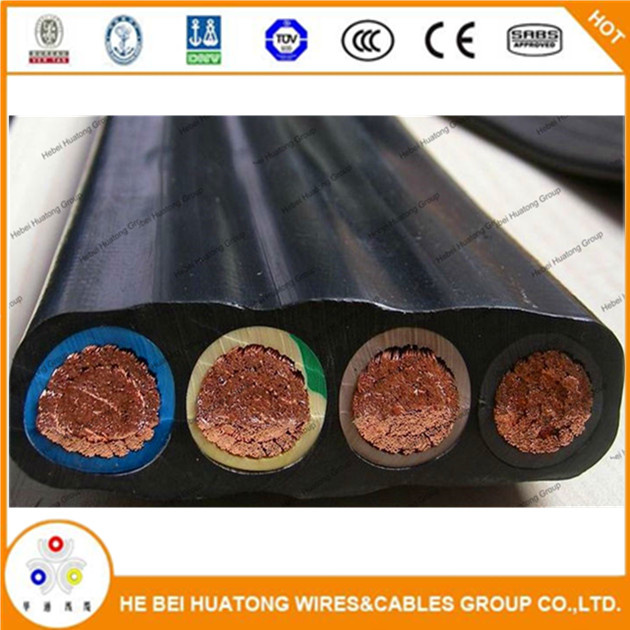

Flexible PVC Flat Elevator Cable

lift cable Elevator Cable Evator Traveling Cable Flat Elevators Cable

Application
Flexible flat cable is used for crane, submersible pump, elevators of rated voltage 1kV and below. The product can be used in very harsh environment by adopting insulation and sheath of of different material.

Product Description
1) Rated voltage: 1000V and below
2) Insulation and sheath material: PVC, NBR, TPU, TPE
3) Max. conductor working temperature: PVC (70 °c), NBR (70 °c), TPE (90 °c), TPU (180°c)
4) Conductor: class 5, 6 copper, tinned or plain
5) Sectional area: 0.75-95mm2
6) No. of cores: 2~48
7) Sheath: rubber
8) Max. conductor DC resistance at 20°c:

Sectional area (mm2)	2.5	4	6	10	16	25	35	50	70	95
Tinned copper (Ω/km)	8.21	5.09	3.39	1.95	1.24	0.795	0.565	0.393	0.277	0.21
Plain copper (Ω/km)	7.98	4.95	3.30	1.91	1.21	0.78	0.554	0.386	0.272	0.206

Note: this product can have different working temperatures based on different insulation and sheath material.

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.

Products: Power Cable, Rubber Cable, UL standard building wire cable

Certificates:

Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
