Fln36 Load Break Switch for Medium Voltage

Fln36 Load Break Switch for Medium Voltage
Price: US $ 500-1000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: FLN36
Altitude: <=2000m
Ambient Temperature: -35c-+40c
Seismic Capacity: 8 Degree

Product Description

DCFLN-24 Indoor AC High-Voltage SF6 Load Break Switch
Technical Specification

NoItemUnitParameter
FLN36-12D/T630-20FLN36-12D/T125-31.5
1Rated voltageKV1212
2Rated frequencyHz5050
3Rated currentA630630
41 min power frequency withstand voltageKV42/4842/48
5Lighting impulse withstand voltageKV75/8575/85
65 min zero gauge rated power frequency withstand voltageKV2424
7Rated thermal stability current(peak)KA20/20
8Rated dynamic current(peak)KA50/50
9Rated short circuit closing currentKA50/50
10Rated closed-loop breaking currentA630
11Rated active load breaking currentA630
12Rated cable charging breaking currentA1010
13Rated short circuit breaking currentKA 31.5
14Rated transfer currentA 1750
15Fuse type  XRNT-12KV/125A
16Fuse strikes the output energyJ 1±0.5
17Mechanical lifeTime5000/20005000/3000
18The insulation distance betweent the live body and the groundmm>=125>=125
19SF6 Gas pressure (relative pressure at 20ºC)bar0.40.4
20Closing the same periodms<=2<=2
21Main circuit tesistanceμ<=65<=65
Product Description:

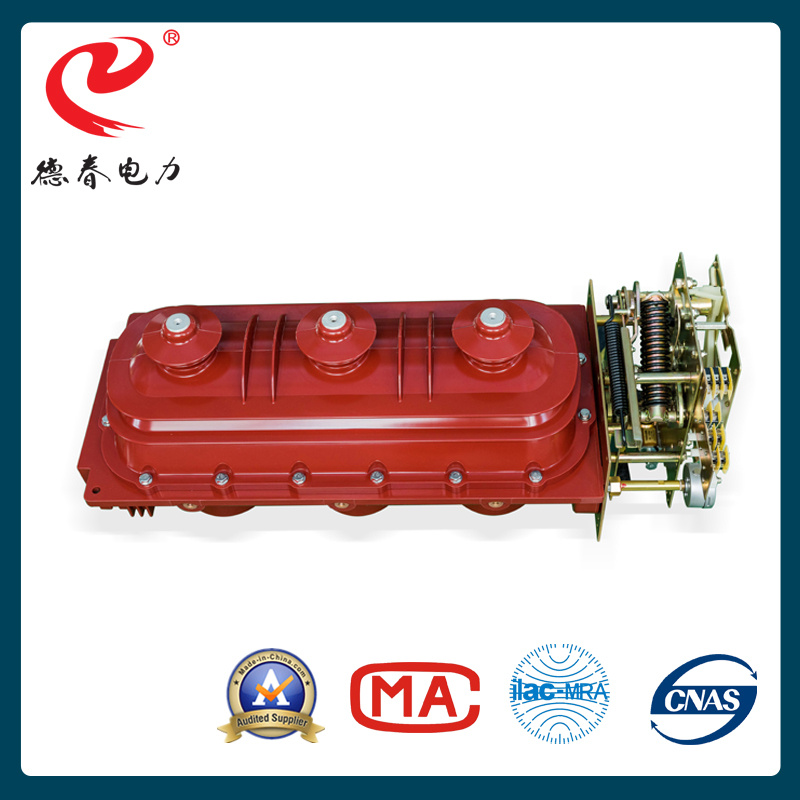

DCFLN-24 indoor AC high-voltage SF6 load break switch is an indoor switch equipment with 24kV rated voltage. The equipment adopts SF6 as gas quenching and insulation medium, including three phases which are opening , closing and earthing, It has the advantages of small volume, convenient installation and strong adaptability to the environmental.
Technical Specification:
Current Voltage24KV
CurrentAC
Altitude≤2000m
Ambienttemperature-35ºC-+40ºC
Seismic Capacity8 degree

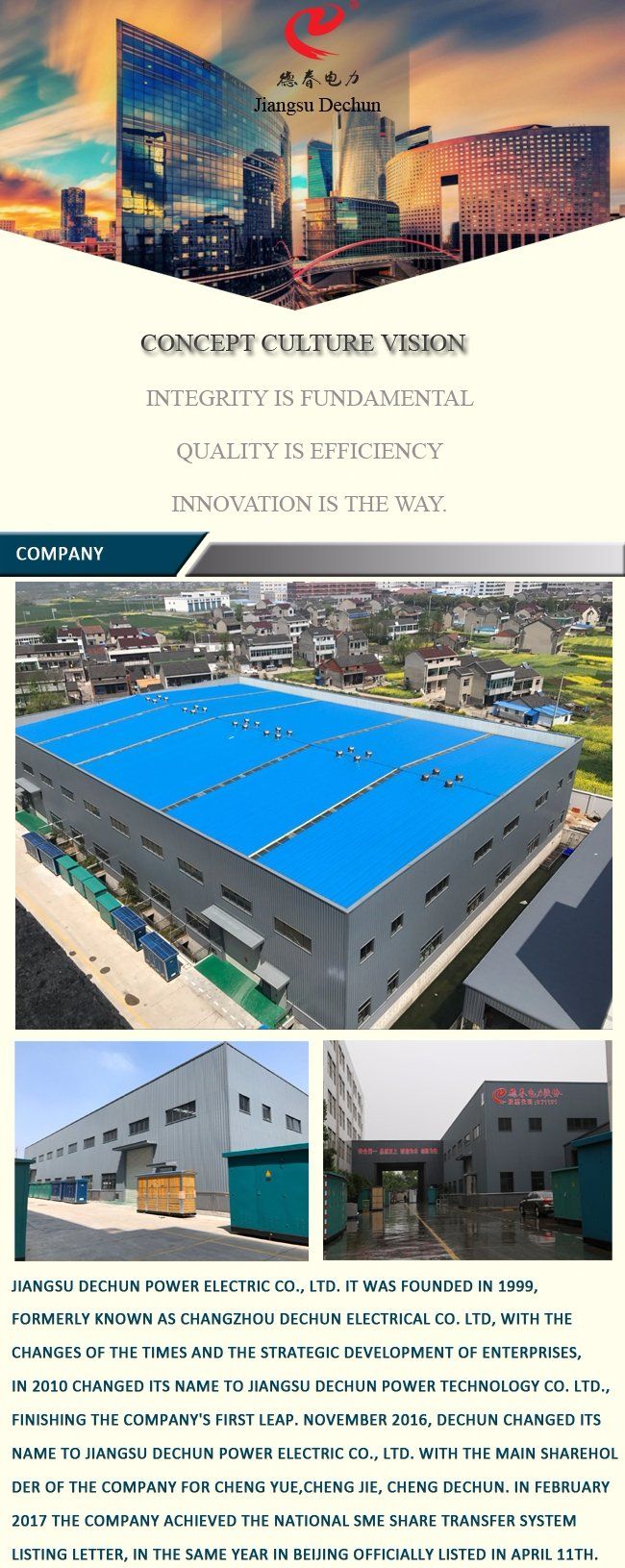

Jiangsu Dechun Power Electric Co., Ltd is located in Menghe Fumin Industrial Park, Xinbei District, Changzhou, Jiangsu Province. It founded in 1999 and covers an area of 50 acres. It built with modern standards for the delivery room 56, 000 square meters and a total investment of 200 million yuan with more than 300 employees. Dechun is one of the domestic key enterprise which researches products such as sulfur hexafluoride load switch, vacuum load switch, sulfur hexafluoride ring network cabinet, cabinets and so on. Dechun has improved production equipment, complete testing equipment and applicable to the product technology standard and tooling facilities.

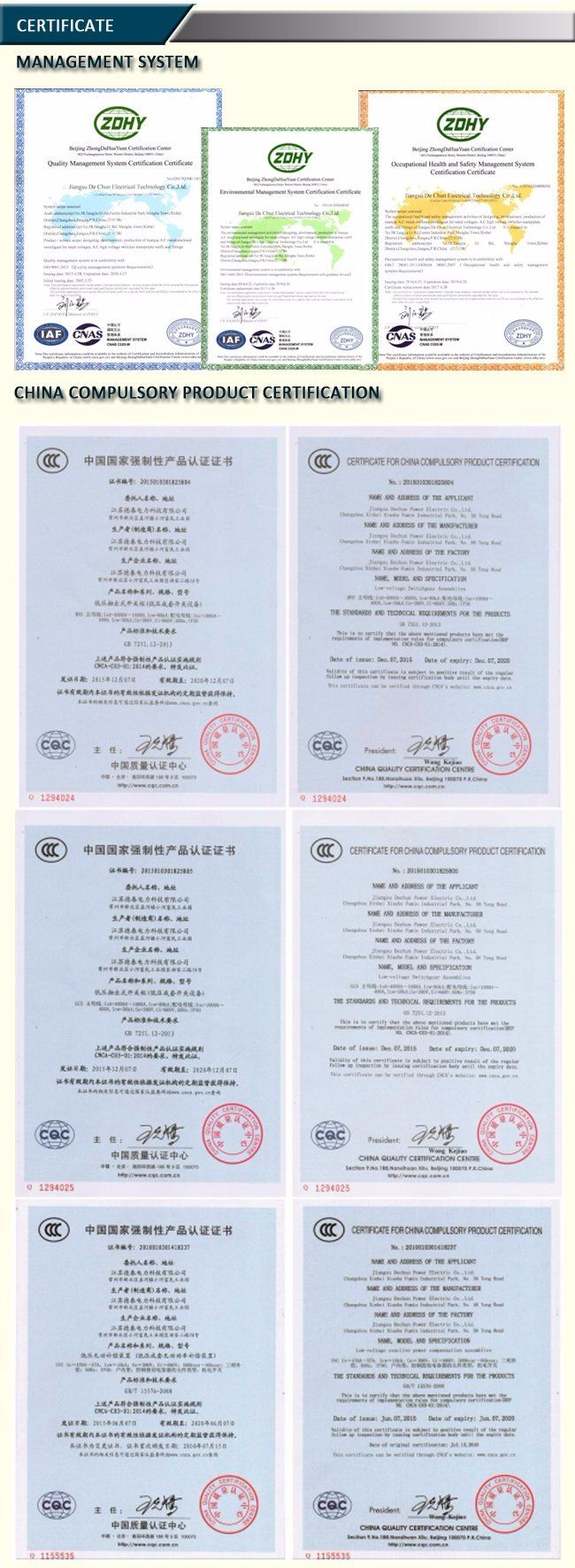

Since its inception, the company has been adhering to the "integrity is fundamental, quality is the efficiency, innovation is the way, " the guiding ideology, constantly optimizes the quality of management. It has always been to new high-tech products as a guide, develops new products, creates a new brand, and constantly improves the technological content and market share. Under the support, as always, from all sections of the community and all the joint efforts of everyone in the company, Dechun was identified as "key national high-tech enterprise", "high-tech enterprises in Jiangsu Province", "private technology enterprises in Jiangsu Province ", "high-tech SMEs in Jiangsu ", "Credit management standard enterprise of Jiangsu Province " and other honors. It also accessed to hundreds of town, district, municipal, provincial and national awards. At the same time, it has passed National safety production standard (grade 2), ISO9001: 2008 quality management system certification and CCC authentication.
