Float Level Switch Sensor for Steam Autoclave Equipment

Name: Float Level Switch Sensor for Steam Autoclave Equipment
Brand: all-electronics-online.com
SKU: 670191931
Availability: InStock
Rating: 5 (38 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS-702
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Product Type: LSB2-130-1/2-300
Product ID: P/N: LS-702

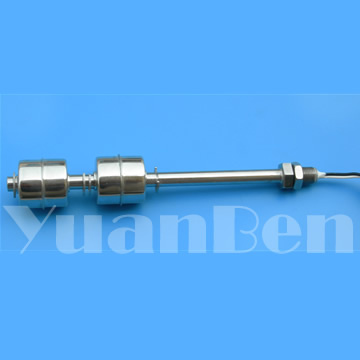

Product Description: LSB2-130-1/2-300 float Level Switches is used in steam autoclave equipment, work under high pressure and temperature conditions, with one float ball and two controling point for high and low level, 1/8G mount threads.
Specifications
Item
Two point Level switch
Mount mode
(Bottom or top) vertical Mounting
Mounting Threads
G1/8" or flange (according to client)
Mounting Attitude
Vertical± 20°
Electrical connection
300mm length UL1430 AWG22
Special Gravity
0.85g/cm3
Operating Temp. Range
-10~125degree c
Operating Pressure
20 Bar(2.0MPa) max
Float model
Dia. 28 high 28, thought hole dia. 9.5
Stem Material
SUS304
Float ball Material
SUS316
Accuracy
± 2mm in Water
Repeatability
± 1mm in Water
Switch Rating
50VA
Voltage
250Vac, 200Vdc
Contact Mode
One float ball, and two controling point (N. O. Or N. C. )
Control point
Two point
Product Certified
EX, CQC, CE
