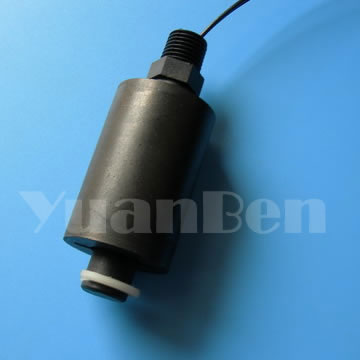

Level Switches for High Pressure

Name: Level Switches for High Pressure
Brand: all-electronics-online.com
SKU: 735846065
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LSA-67-1/2-P-610
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

NBR Float Level Switches is made of PP plastic stem and NBR float ball, with 1/4"NPT mounting threads, can be used in high pressure.

Item	Single point Level switch
Mount mode	(Bottom or top) vertical Mounting
Mounting Threads	1/4"NPT
Stem length	67mm
Mounting Attitude	Vertical±20°
Electrical connection	610mm length UL1430 AWG22
Float dimension	Dia.32 high49, thought hole dia.15.0
Stem Material	PBT
Float ball Material	NBR
Operating pressure	10 Bar
Operating temp. range	-10~100 degree C
Accuracy	±2mm in Water
Repeatability	±1mm in Water
Switch Rating	50VA
Voltage	250Vac, 200Vdc,36Vdc, 12 Vdc.
Contact Mode	N.C./N.O
Control point	One point

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
