Float Level Switch with Plastic Material for HVAC

Name: Float Level Switch with Plastic Material for HVAC
Brand: all-electronics-online.com
SKU: 735814425
Availability: InStock
Rating: 4.6 (48 reviews)

Price:	US $ 1.69/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Level switch (or named float switch) is consisting of a magnetic float unit stem with magnetic reed switch, the magnetic float moves with liquid level to actuate a hermetically sealed magnetic switch within the unit stem.

Product Type: LSA-34-1/2-300-P Plastic level switches

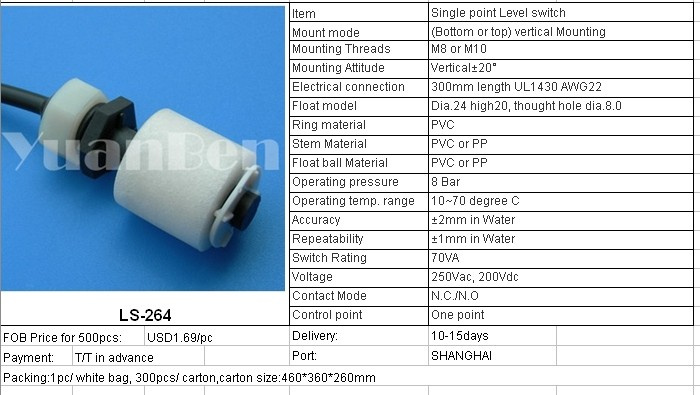

Product ID: P/N: LS-264
Product Description: Made of plastic, low cost, with M10 threads, applied to aerospace, air compressors, buck storage tanks, chemical dispensing systems, commercial restaurant industry. Chermical liquid level controlling
Single point level switches
Single point level switches in most material, usually used for high or low alarm vessels.

Applications:
The general purpose high temp. Float level switch is an ideal choice for relatively clean water diluted chemical or petroleum. Media examples include hot deionized water.
Specifications
Item
Single point Level switch
Mount mode
(Bottom or top) vertical Mounting
Mounting Threads
M8 or M10
Mounting Attitude
Vertical± 20°
Electrical connection
300mm length UL1430 AWG22
Float model
Dia. 24 high20, thought hole dia. 8.0
Ring material
PVC
Stem Material
PVC or PP
Float ball Material
PVC or PP
Operating pressure
8 Bar
Operating temp. Range
10~70 degree C
Accuracy
± 2mm in Water
Repeatability
± 1mm in Water
Switch Rating
70VA
Voltage
250Vac, 200Vdc
Contact Mode
N. C. /N. O
Control point
One point

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
