Fn16A-12 Series 10kv Indoor AC Hv Vacuum Load Switch
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
FN16A-12 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12kv |
| Frequency: |
50Hz |
| Rated Current: |
630A |
| 5% Rated Active Load Breaking Current: |
31.5A |
| Rated Current Breaking Times: |
10000 |
| Pemissible Wear Some Thickness Reed: |
3mm |
| Function: |
Dimmer Switch |
| Pole: |
3 |
| Rated Continuous Current: |
Alternative |
Product Description
General:

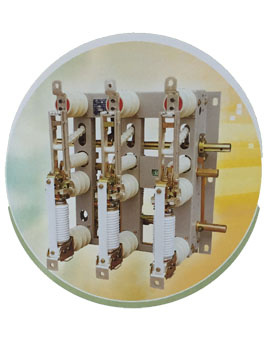

FN16A-12 Series Indoor AC HV Vacuum Load Switch is suitable for 50Hz, 10kV rated voltage alternative current power net, for breaking load current, overload current and combination apparatus or for breaking short circuit current and opening and closing short circuit current. It is widely used in places of no oil reaction, free of maintenance and frequent operations situation. With advantages of a newly design, small volume, flexible installation, simple and easy to operate, this kind of product has manual operation and motor drive functions. And the operation mechanism is CS6-1 type or specified CS type, it could be operated in the back of the switch without any operation mechanism attached.
Characteristics:
1. All-assembled switch and combined equipment has small dimension and compact structure
2. Both manual and electric operating mechanism with small operating force
3. Reliable mechanical interlock prevents mal-operation
4. Clearly visible clearance
5. Apply air compression arc extinguishing with stable performance and reliable, safe operation
6. The combined electric equipment has open-phase protection function
Technical Data of Load Switch:
| Name | Unit | Technical Data |
| Rated Voltage | kV | 12 |
| Rated Frequency | Hz | 50 |
| Rated Current | A | 630 |
| Rated Active Load Breaking Current | A | 630 |
| Rated Close Circuit Breaking Current | A | 630 |
| 5% Rated Active Load Breaking Current | A | 31.5 |
| Rated Cable Charging Breaking Current | A | 10 |
| Rated Capacity Breaking Current | A | 400 |
| Rated No-load Transformer Breaking Current | 1600kVA Transformer no-load Current |
| Rated 1min Power Frequency Withstand Voltage (r.m.s) Phase-to-earth, phase-to-phase, vacuum clearance/Isolating distance | kV | 42/48 |
| Rated Lightning Impulse Withstand Voltage (r.m.s) Phase-to-earth, phase-to-phase, vacuum clearance/Isolating distance | kV | 75/85 |
| Rated Short-time Withstand Current | kA/s | 20/3 |
| Rated Peak Withstand Current | kA | 50 |
| Rated Short-circuit Making Withstand Current | kA | 50 |
| Rated Current Breaking Times | times | 10000 |
| Mechanical Endurance | times | 10000 |
| Pemissible Wear Some Thickness Reed | mm | 3 |
| Operation Force | Nm(N) | 120(240) |
| Secondary Control Power Voltage | V | (AC.DC.) 220 |
| Net Weight | kg | 61 |
| Dimensions | mm | 720×490×885 |
| Packing Dimensions | mm | 830×900×520 |
Technical Data of Load Switch-fuse Combination Apparatus:
| Rated voltage and maximum working voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Fuse maximum rated current | A | 200 |
| Rated transfer current | A | 3150 |
| Fuse tube triggered breaking time of switch | ms | 31 |
| Rated short-circuit breaking current(anticipated effective value) | kA | 31.5 |
| Rated short-circuit closing current(anticipated peak value) | kA | 80 |
| 1min power frequency withstand voltage (effective) to earth, inter-phase, isolation clearance | kV | 42/48 |
| Lightning impulse withstand voltage(peak)to earth, inter-phase, isolation clearance | kV | 75/85 |
| Fuse striking output energy | J | 2-5 |
