Fnl6a-12 Series Load Switch
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
FNl6A-12 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
Product Description
General:

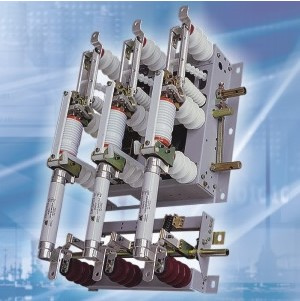

FNl6A-12 series switch is suitable for AC 50Hz, rated voltage 10kV network, especially for oil-free, maintenance and frequent operation places to break load current, overload current and close short-circuit current. The combined electric equipment breaks short-circuit current. It can be controlled through CS6-1 operating mechanism or specialized CS operating mechanism or directly at the back of switch without operating mechanism.
Characteristics:
1. All-assembled switch and combined equipment has small dimension and compact structure
2. Both manual and electric operating mechanism with small operating force
3. Reliable mechanical interlock prevents mal-operation
4. Clearly visible clearance
5. Apply air compression arc extinguishing with stable performance and reliable, safe operation
6. The combined electric equipment has open-phase protection function
| SI. NO. | Name | Unit | Data |
| 1 | Rated voltage and maximum working voltage | kV | 12 |
| 2 | Rated frequency | Hz | 50 |
| 3 | Rated current | A | 630 |
| 4 | Rated active load breaking current | A | 630 |
| 5 | Rated closed-loop breaking current | A | 630 |
| 6 | 5% rated active load breaking current | A | 31.5 |
| 7 | Rated breaking current of cable charging | A | 10 |
| 8 | Rated capacitance breaking current | A | 400 |
| 9 | Rated no-load transformer breaking current | | 1600KVA transformer no-load current |
| 10 | 1min power frequency withstand voltage (effective) to earth, inter-phase, vacuum clearance/isolation clearance | kV | 42/48 |
| 11 | Full wave lightning impulse withstand voltage(peak)to earth, inter-phase, vacuum clearance/isolation clearance | kV | 75/85 |
| 12 | Rated short-time withstand current(thermal stable) | kA/s | 20/3 |
| 13 | Rated peak withstand current(dynamic stable) | kA | 50 |
| 14 | Rated short-circuit closing current | kA | 50 |
| 15 | Rated current breaking times | Times | 10000 |
| 16 | Mechanical life | Times | 10000 |
| 17 | The permissible accumulated wear thickness of contacts | mm | 3 |
| 18 | Breaking and closing operation torque(force) | Nm(N) | 120(240) |
| 19 | Rated closing operation voltage/current | V/A | AC/DC 220/0.5 |
| 20 | Rated breaking operation voltage/current | V/A | AC/DC 220/3 |
Technical parameter of FN16A-12RD/200-31.5 load switch-fuse combined electric equipment:
| SI. NO. | Name | Unit | Data |
| 1 | Rated voltage and maximum working voltage | kV | 12 |
| 2 | Rated frequency | Hz | 50 |
| 3 | Fuse maximum rated current | A | 200 |
| 4 | Rated transfer current | A | 3150 |
| 5 | Fuse tube triggered breaking time of switch | ms | 31 |
| 6 | Rated short-circuit breaking current(anticipated effective value) | kA | 31.5 |
| 7 | Rated short-circuit closing current(anticipated peak value) | kA | 80 |
| 8 | 1min power frequency withstand voltage (effective) to earth, inter-phase, isolation clearance | kV | 42/48 |
| 9 | Lightning impulse withstand voltage(peak)to earth, inter-phase, isolation clearance | kV | 75/85 |
| 10 | Fuse striking output energy | J | 2-5 |
